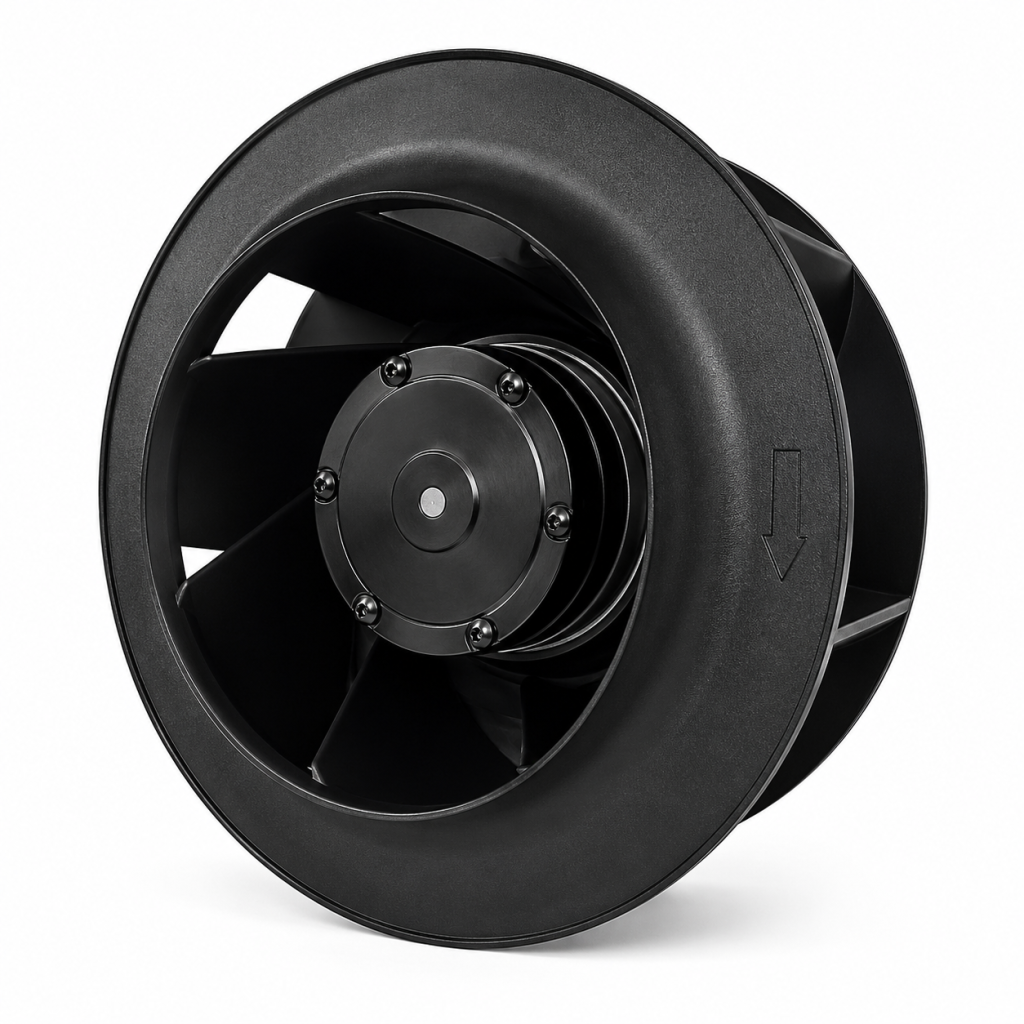

AC CENTRIFUGAL FANS
ø225x101 mm
(ø8.85x3.97 in)
PRODUCT SPECIFICATIONS
Impeller: Plastic
Ambient Temperature Range: -20°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermal Protection with Auto Restart
Termination: Lead Wire
Certification: TÜV / UL
Weight: 1,985 g
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units

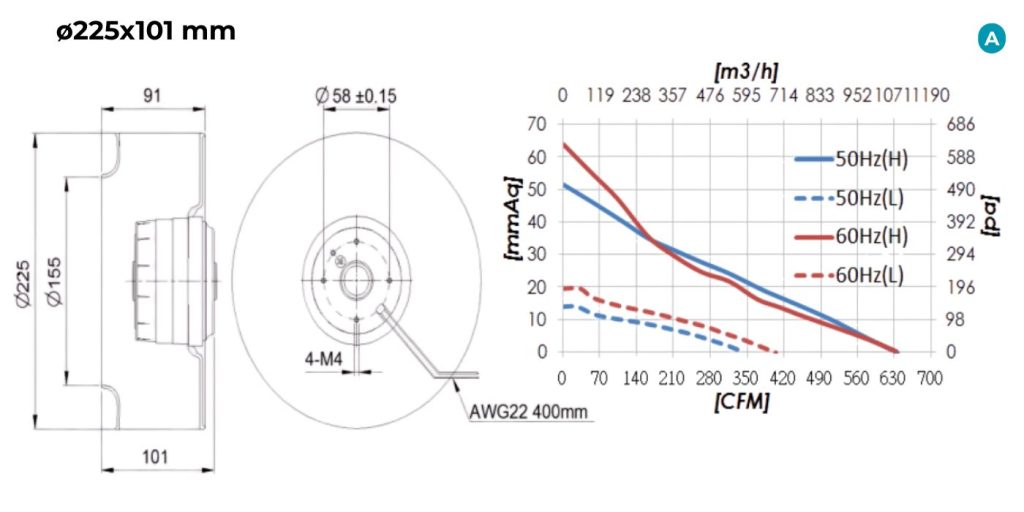

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
TÜV / UL |
|---|---|---|---|---|---|---|---|---|---|
| HYC12210HB | 115 | 50/60 | 0.93/1.3 | 109/145 | 2500/2500 | 635/635 | 52/64 | 70/72 | ✓ |
| HYC22210HB | 230 | 50/60 | 0.49/0.67 | 109/145 | 2500/2500 | 635/635 | 52/64 | 70/72 | ✓ |
| HYC12210LB | 115 | 50/60 | 0.30/0.39 | 40/45 | 1400/1600 | 347/405 | 14/20 | 59/61 | ✓ |
| HYC22210LB | 230 | 50/60 | 0.18/0.22 | 40/50 | 1400/1600 | 347/405 | 14/20 | 59/61 | ✓ |
