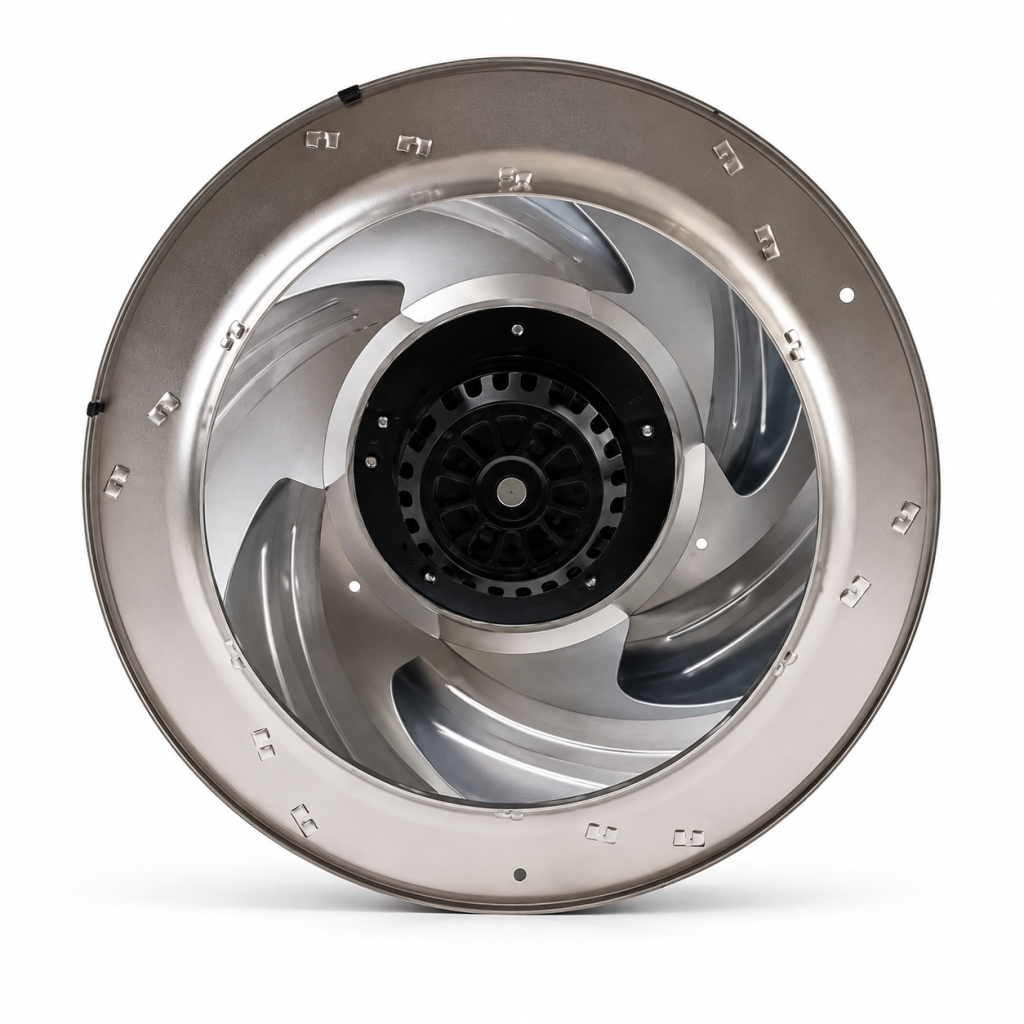

AC CENTRIFUGAL FANS
ø318x154 mm
PRODUCT SPECIFICATIONS
Impeller: Plastic
Ambient Temperature Range: -10°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Shaded-Pole or Capacitor Induction Motor
Motor Protection: Thermal Protection
Termination: Lead Wire
Weight: 3,900g
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units

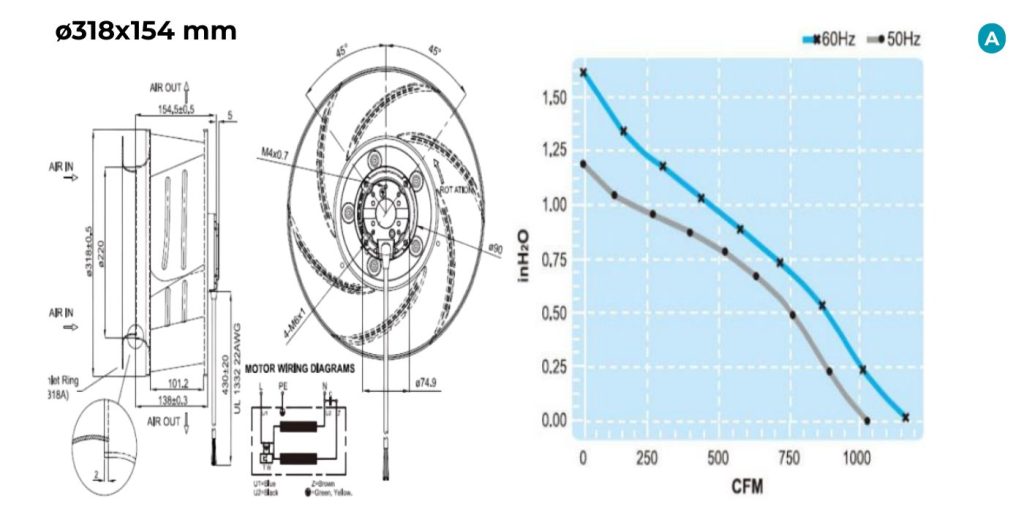

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYC13115HB | 115 | 50/60 | 1.1/1.4 | 115/155 | 1390/1580 | 1015/1165 | 30.5/40.6 | 63/66 |
| HYC23115HB | 230 | 50/60 | 1.43/1.31 | 115/155 | 1390/1580 | 1015/1165 | 30.5/40.6 | 63/66 |
