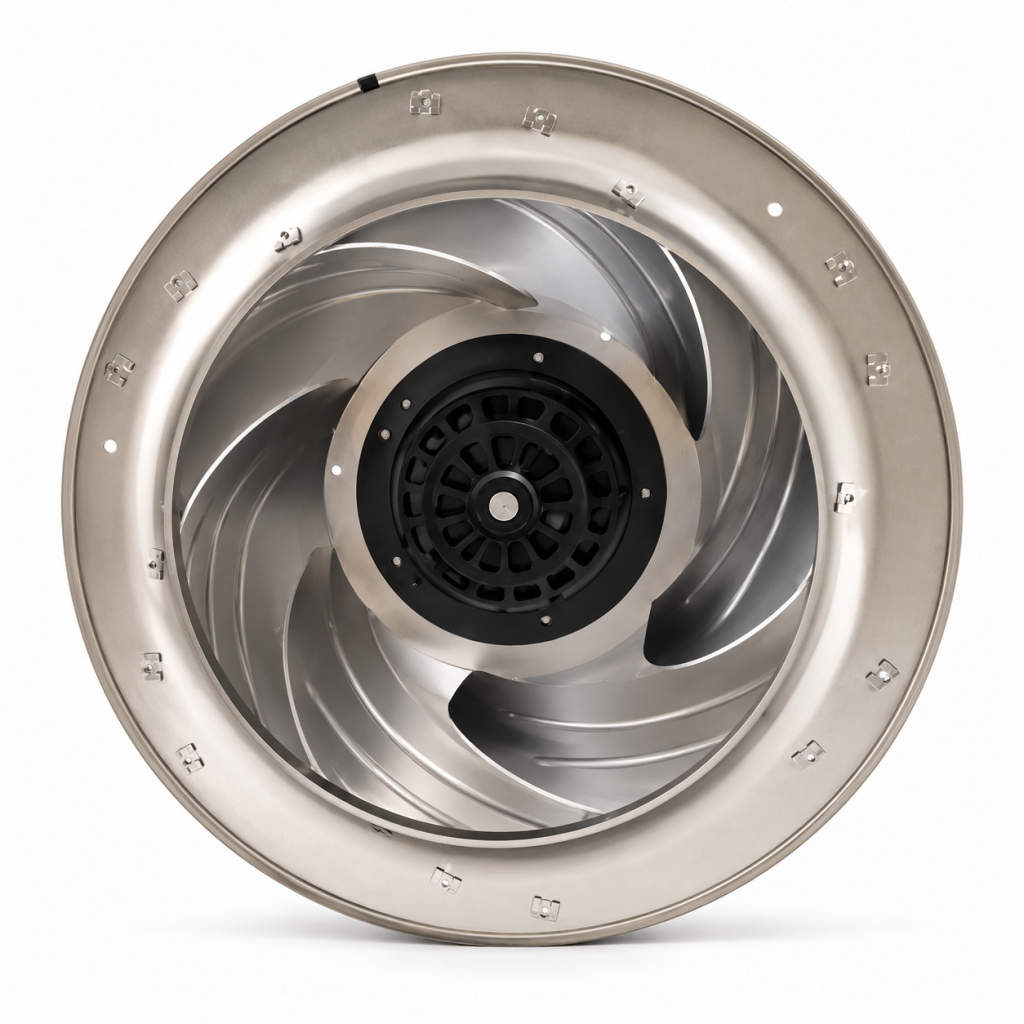

AC CENTRIFUGAL FANS
ø360x167 mm
PRODUCT SPECIFICATIONS
Impeller: Plastic
Ambient Temperature Range: -10°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Shaded-Pole or Capacitor Induction Motor
Motor Protection: Thermal Protection
Termination: Lead Wire
Weight: 5,100g
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units

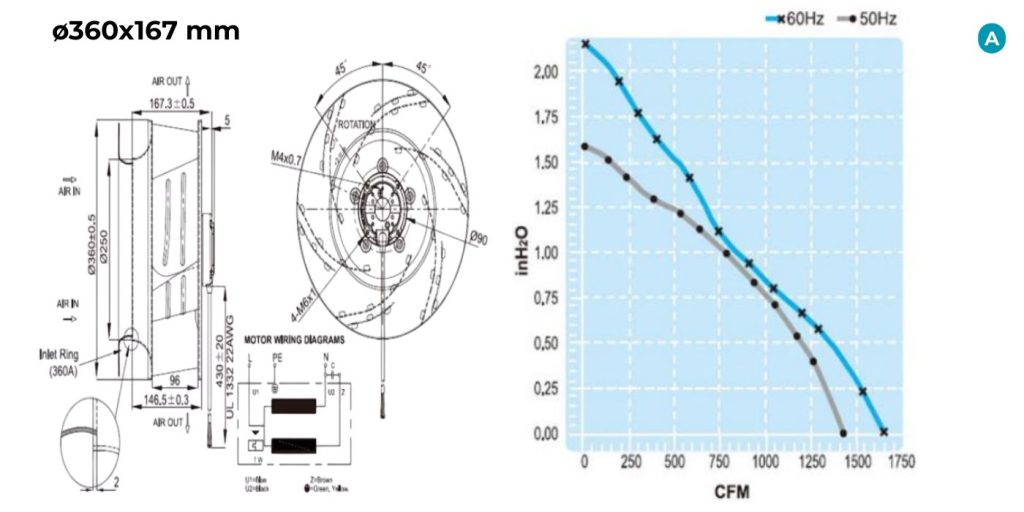

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYC13617HB | 115 | 50/60 | 1.7/2.3 | 190/270 | 1400/1600 | 1430/1645 | 40/55 | 66/70 |
| HYC23617HB | 230 | 50/60 | 0.9/1.2 | 190/265 | 1400/1600 | 1430/1645 | 40/55 | 66/70 |
