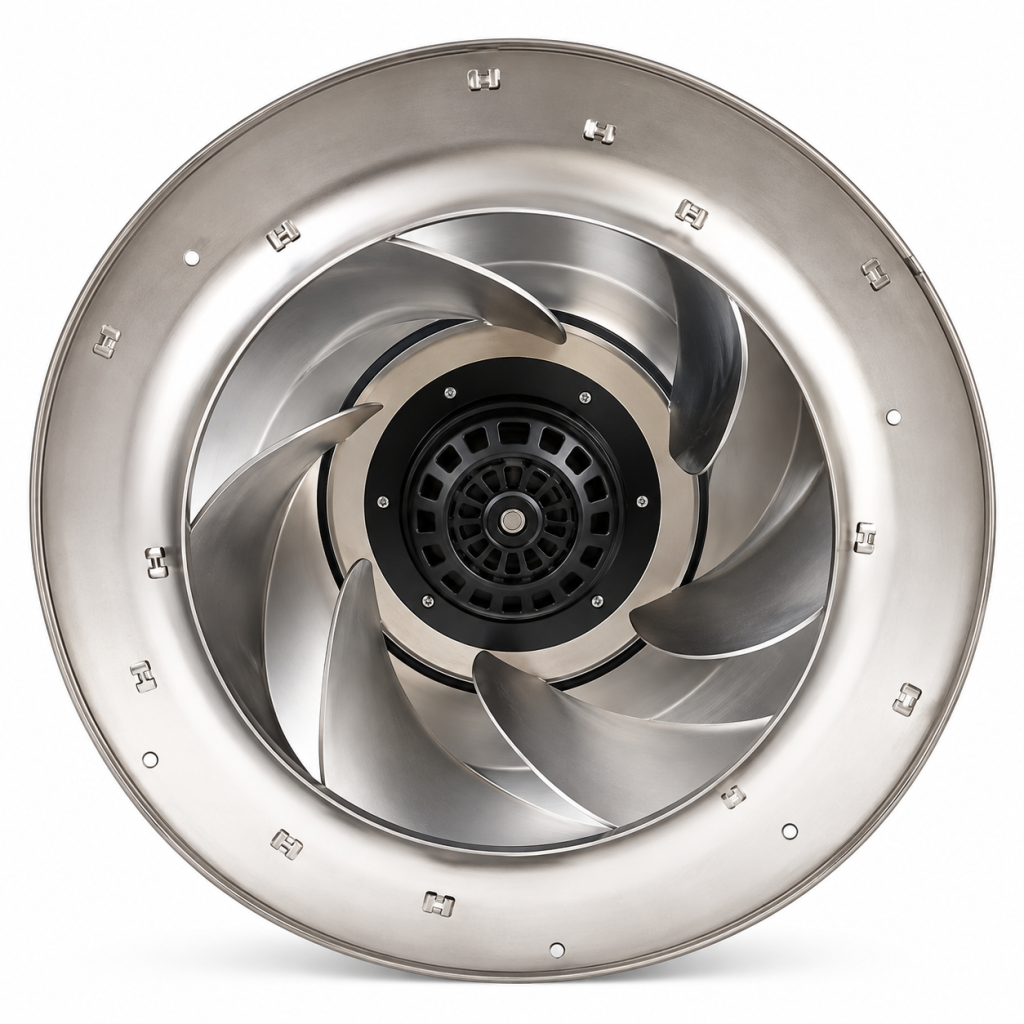

AC CENTRIFUGAL FANS
ø400x162 mm
PRODUCT SPECIFICATIONS
Impeller: Plastic
Ambient Temperature Range: -10°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Shaded-Pole or Capacitor Induction Motor
Motor Protection: Thermal Protection
Termination: Lead Wire
Weight: 5,450g
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units

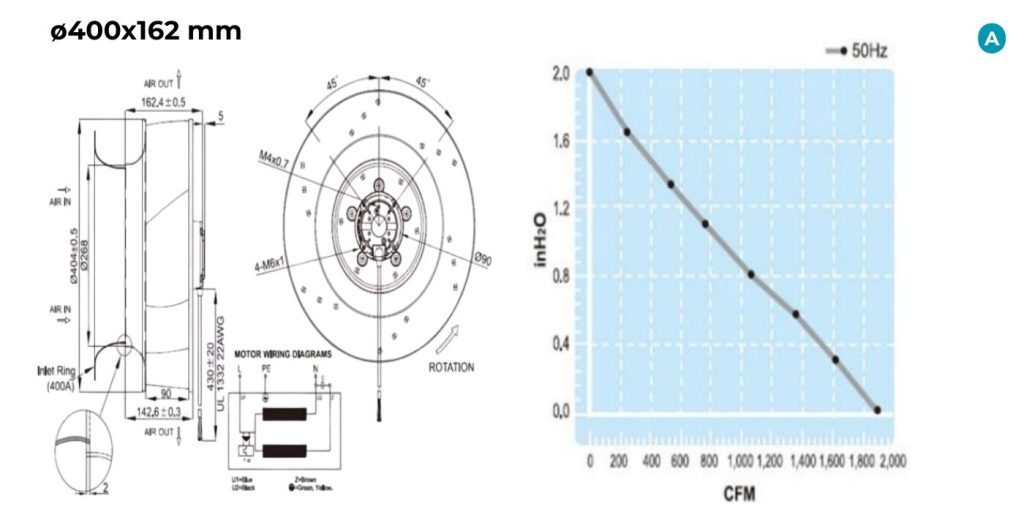

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYC24016HB | 230 | 50 | 1.26 | 287 | 1250 | 1900 | 49.7 | 73 |
