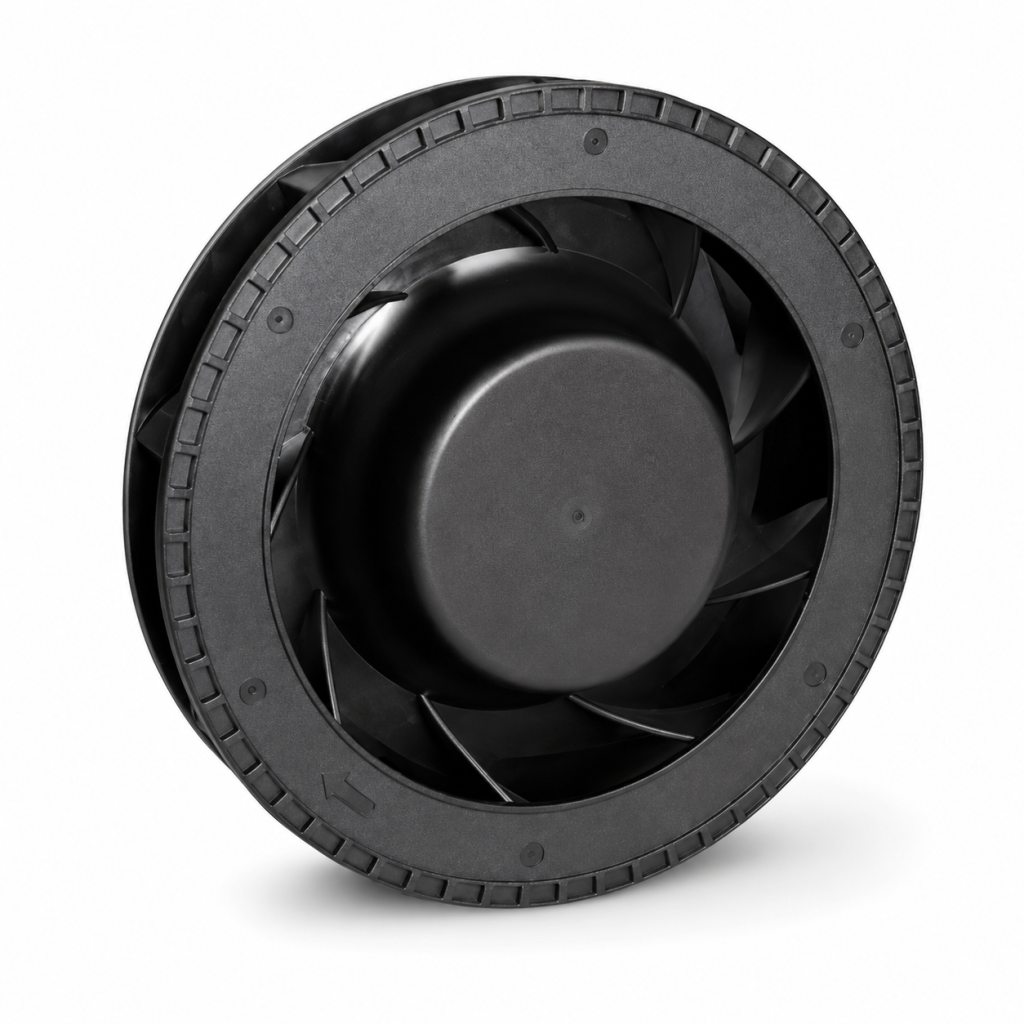

DC CENTRIFUGAL FANS
ø105X25 mm
PRODUCT SPECIFICATIONS
Frame: Die-Cast Aluminum
Impeller: Plastic (UL94 V-0)
Bearing: Dual Precision Ball Bearings
Motor Structure: Single-Phase Brushless DC Motor
Weight: 130 g
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units

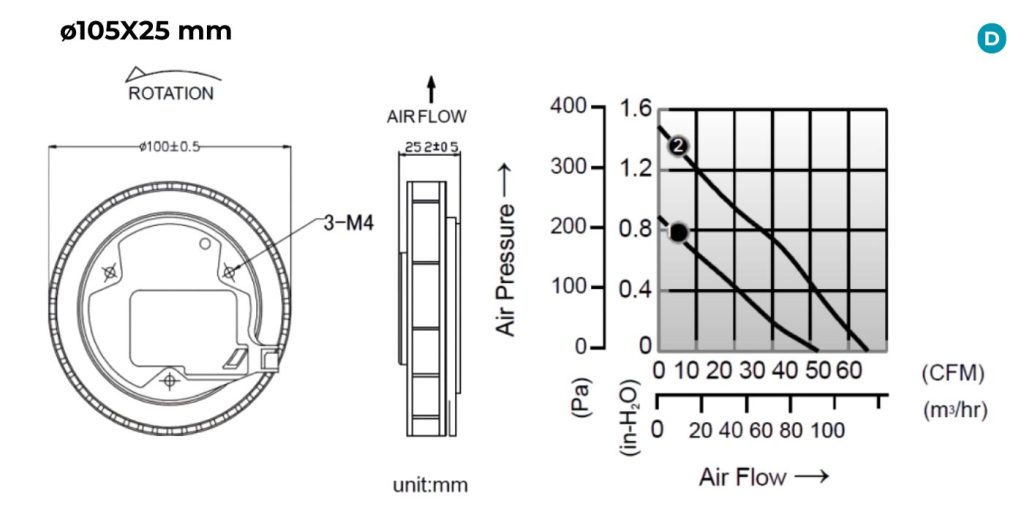

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|
| HYDC121025HB | 12 | 0.5 | 4300 | 42 | 0.89 | 53 |
| HYDC121025XB | 12 | 0.1 | 5300 | 55 | 1.49 | 58 |
