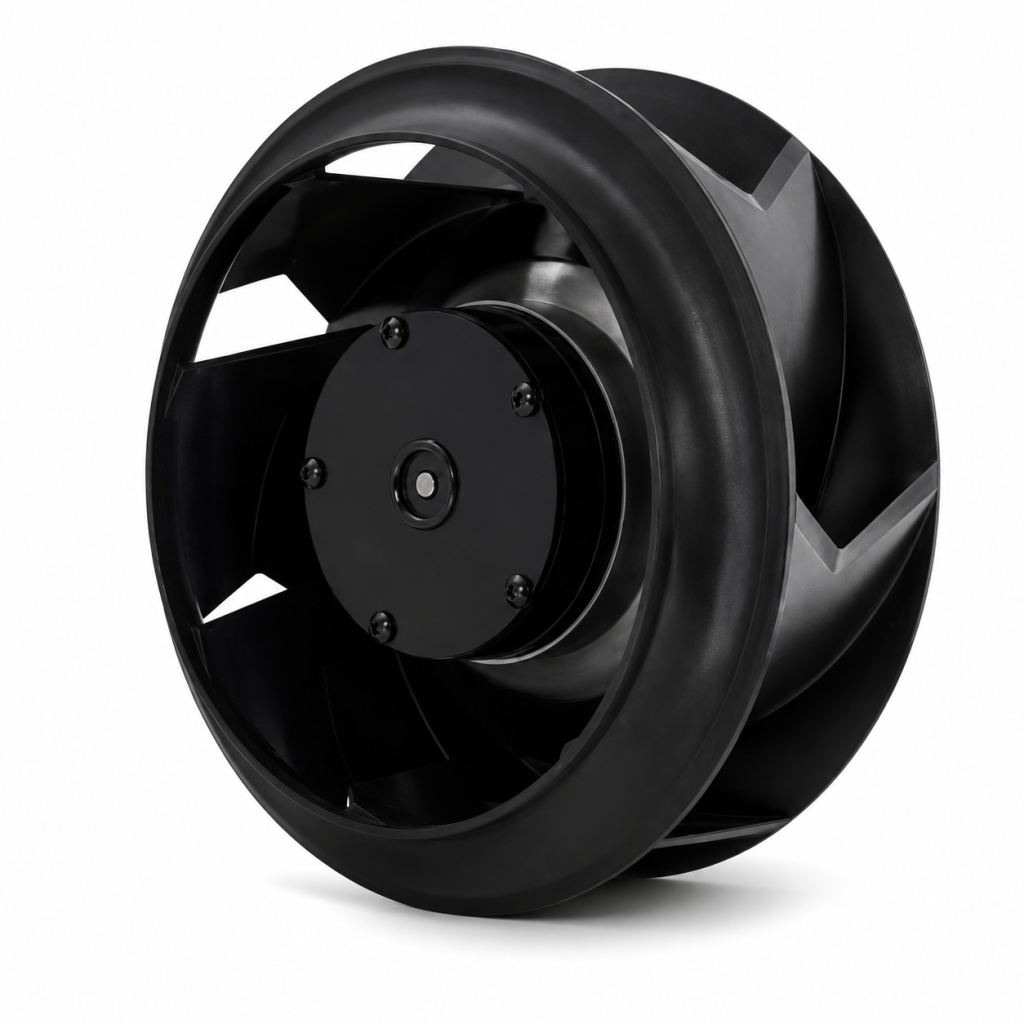

DC CENTRIFUGAL FANS

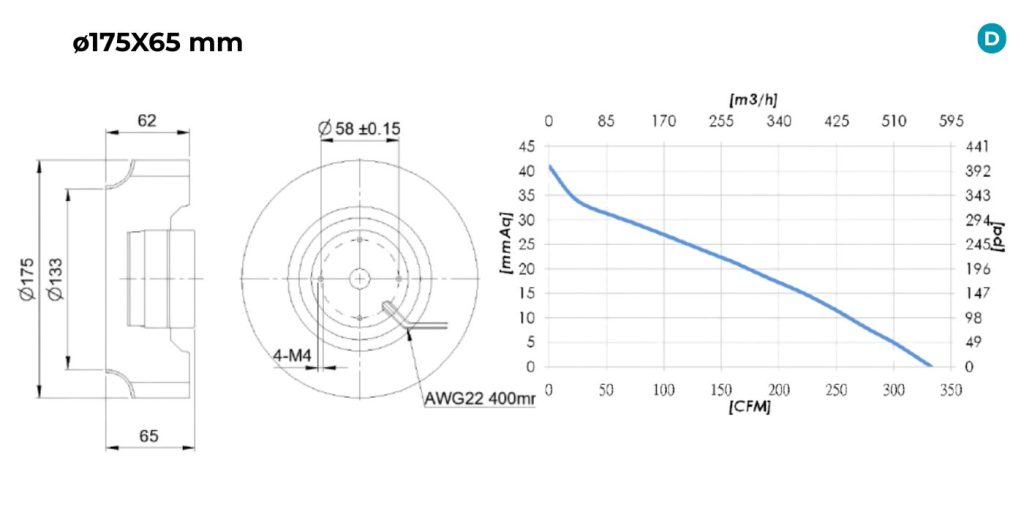

ø175X65 mm
PRODUCT SPECIFICATIONS
Impeller: Plastic (UL94 V-0)
Operating Temperature Range: -10°C ~ +60°C
Bearing: Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 880 g
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|
| HYDC717565HB | 24 | 2 | 2800 | 332 | 1.61 | 76 |
| HYDC817565HB | 48 | 1.27 | 3000 | 332 | 1.61 | 76 |
