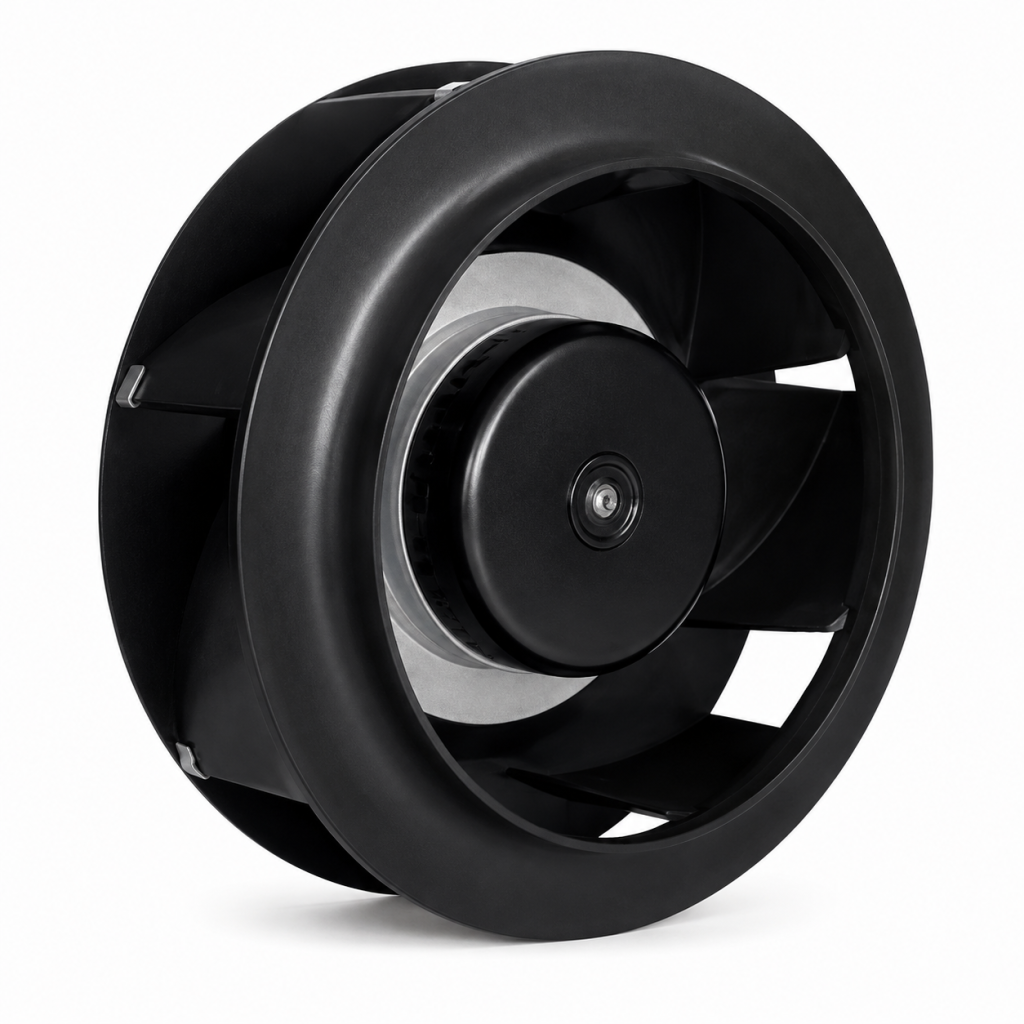

DC CENTRIFUGAL FANS

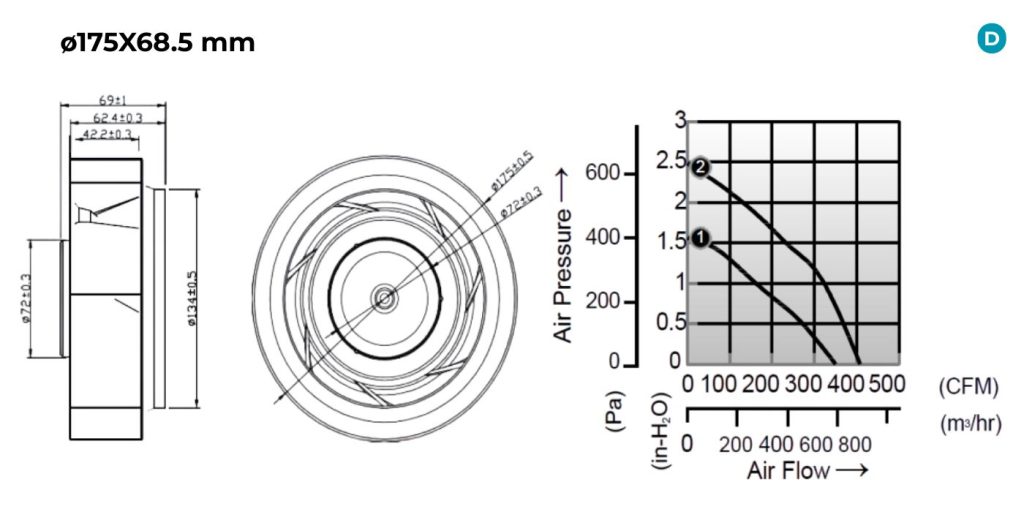

ø175X68.5 mm
PRODUCT SPECIFICATIONS
Frame: Die-Cast Aluminum
Impeller: Plastic (UL94 V-0)
Bearing: Dual Precision Ball Bearings
Motor Structure: Single-Phase Brushless DC Motor
Insulation Class: Class B
Weight: 180 g
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|
| HYDC241768HB | 24 | 1.5 | 3300 | 350 | 1.56 | 67 |
| HYDC481768HB | 48 | 1.2 | 3300 | 350 | 1.56 | 67 |
| HYDC481768XB | 48 | 1.2 | 4200 | 408 | 2.48 | 72 |
