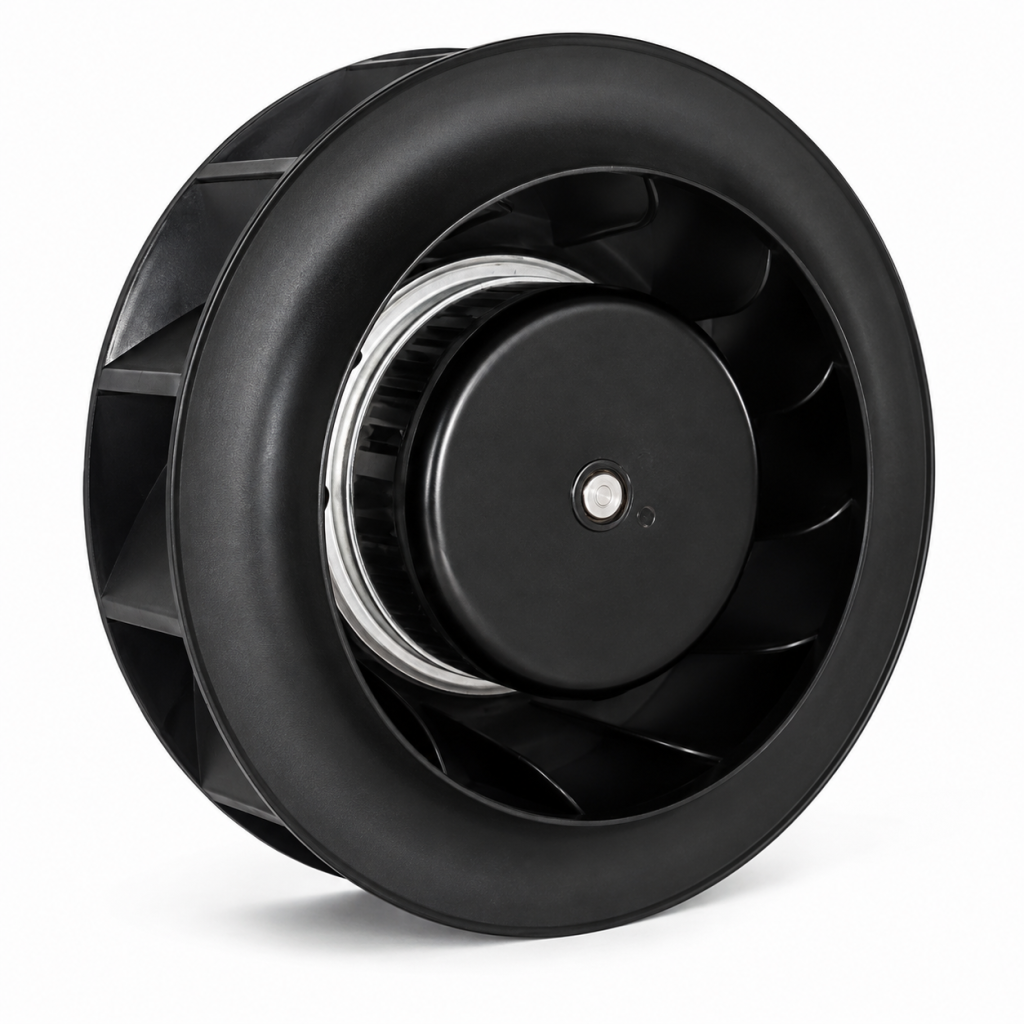

DC CENTRIFUGAL FANS
ø190X69 mm
PRODUCT SPECIFICATIONS
Frame: Die-Cast Aluminum
Impeller: Plastic (UL94 V-0) / Steel
Bearing: Dual Precision Ball Bearings
Motor Structure: Single-Phase Brushless DC Motor
Insulation Class: Class B
Weight: 1.0 kg (HYDC) / 1.3 kg (HYDCM)
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units

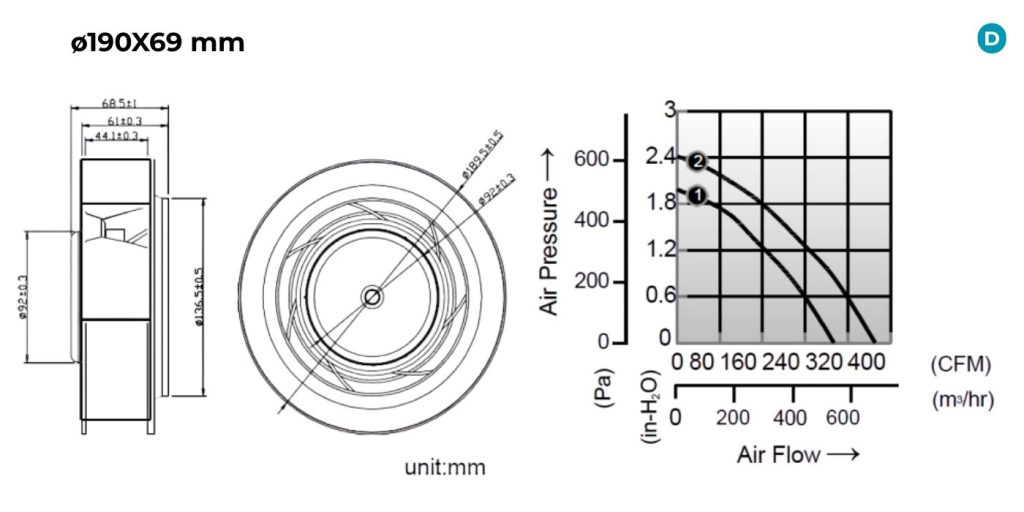

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|
| HYDC241969XB | 24 | 3.5 | 3000 | 371 | 1.99 | 68 |
| HYDC481969XB | 48 | 1.8 | 3000 | 371 | 1.99 | 68 |
| HYDCM241969XB | 24 | 3.5 | 3000 | 294 | 2.41 | 73 |
| HYDCM481969XB | 48 | 1.8 | 3000 | 294 | 2.41 | 73 |
