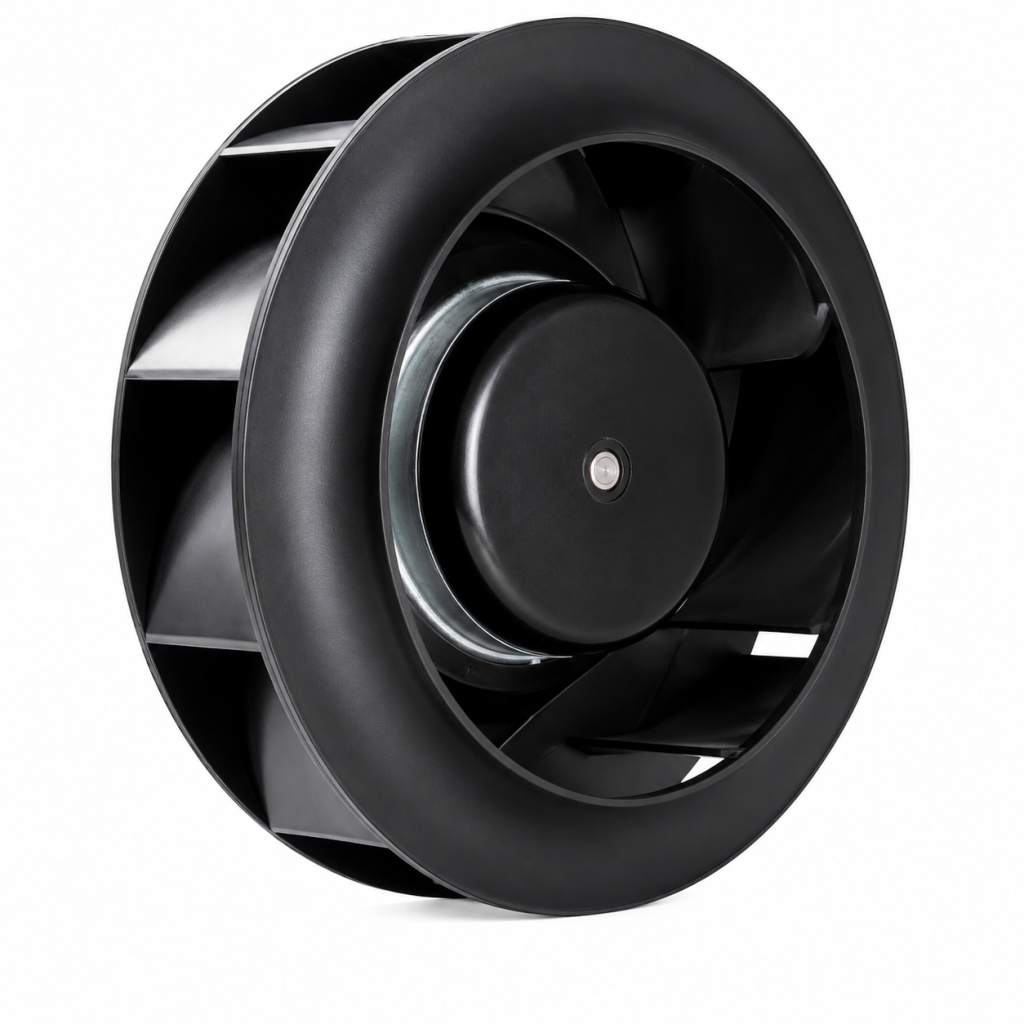

DC CENTRIFUGAL FANS
ø220X71 mm
PRODUCT SPECIFICATIONS
Frame: Die-Cast Aluminum
Impeller: Plastic (UL94 V-0)
Bearing: Dual Precision Ball Bearings
Motor Structure: Single-Phase Brushless DC Motor
Insulation Class: Class B
Weight: 1.1 kg (HYDC) / 1.4 kg (HYDCM)
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units

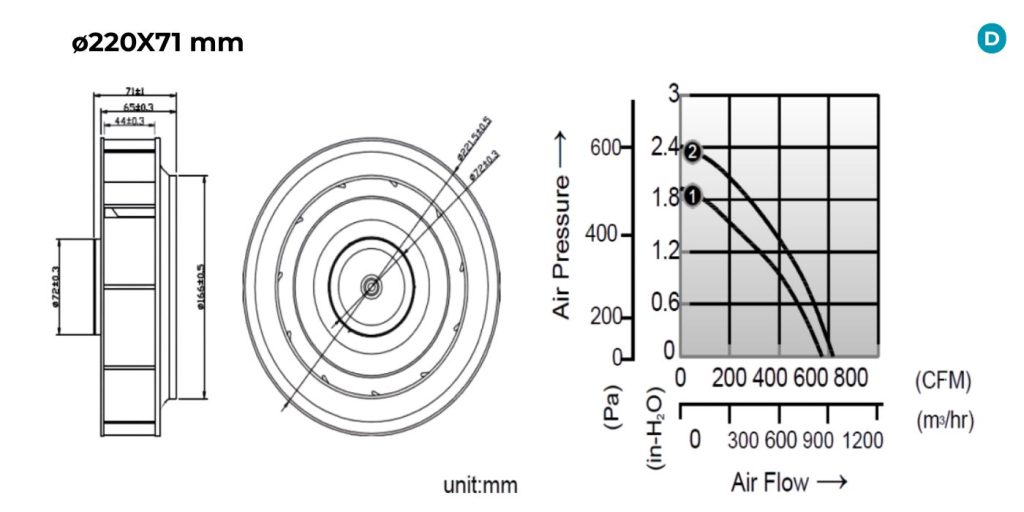

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|
| HYDC242271MB | 24 | 4.5 | 2800 | 573 | 1.93 | 65 |
| HYDC482271MB | 48 | 2.3 | 2800 | 573 | 1.93 | 65 |
| HYDCM242271HB | 24 | 4.5 | 3150 | 618 | 2.41 | 73 |
| HYDCM482271HB | 48 | 2.3 | 3150 | 618 | 2.41 | 73 |
