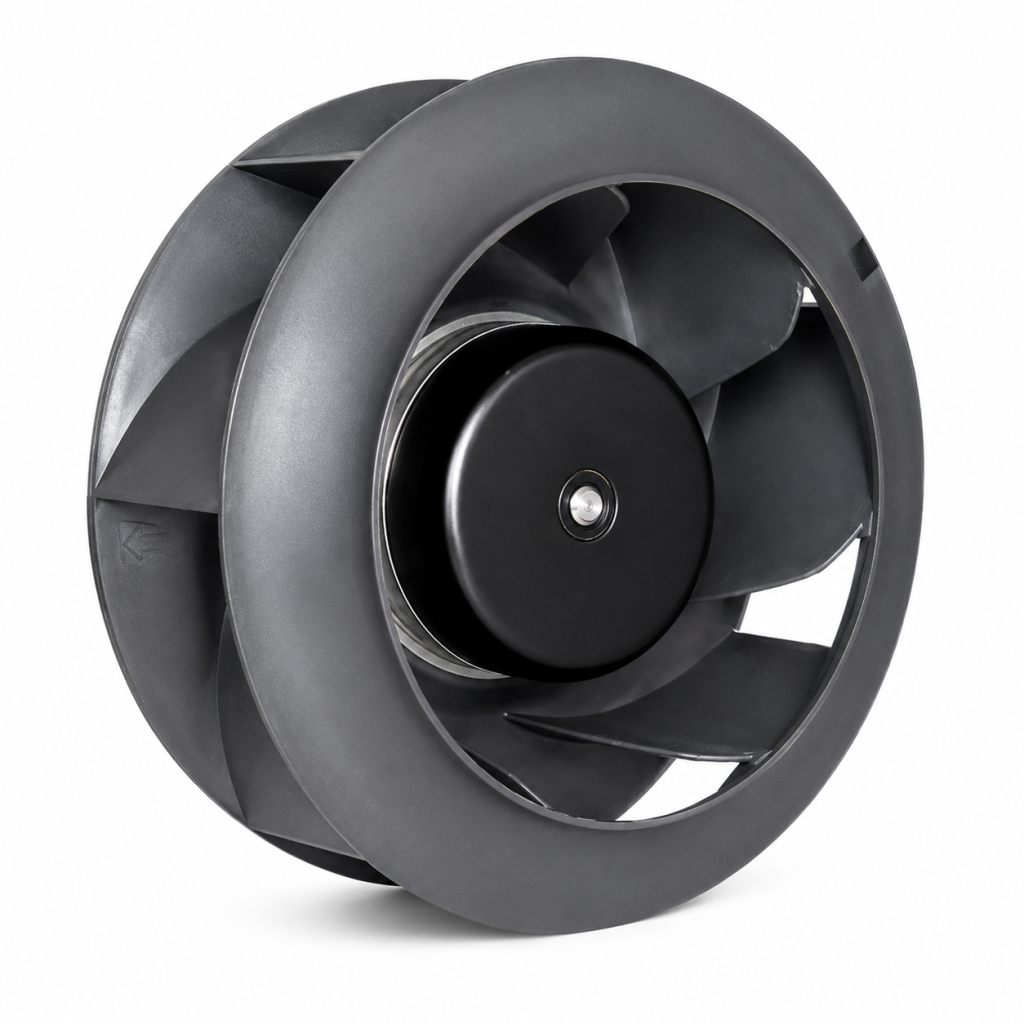

DC CENTRIFUGAL FANS

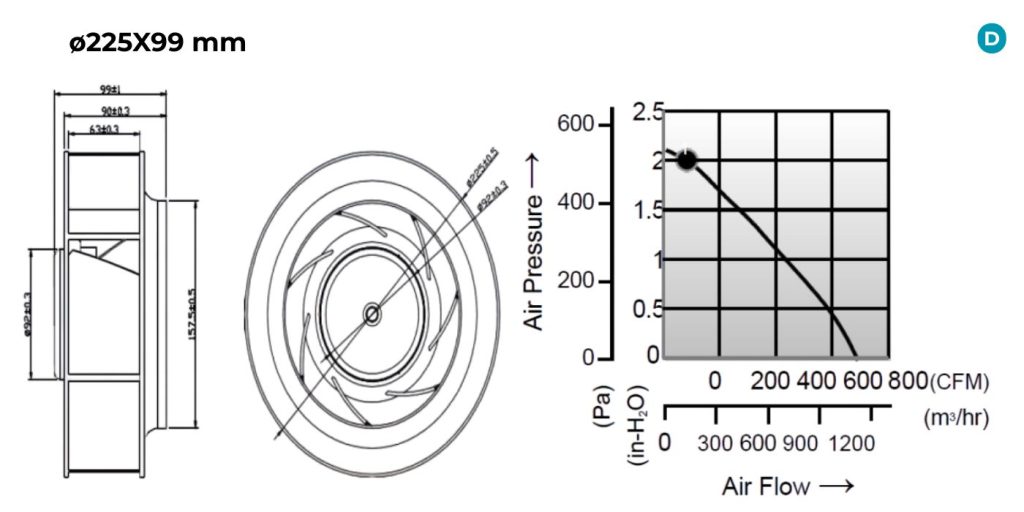

ø225X99 mm
PRODUCT SPECIFICATIONS
Frame: Die-Cast Aluminum
Impeller: Plastic (UL94 V-0)
Bearing: Dual Precision Ball Bearings
Motor Structure: Single-Phase Brushless DC Motor
Insulation Class: Class B
Weight: 1.5 kg
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|
| HYDC242299MB | 24 | 4.5 | 2700 | 683 | 2.13 | 76 |
| HYDC482299HB | 48 | 2.3 | 2700 | 683 | 2.13 | 76 |
