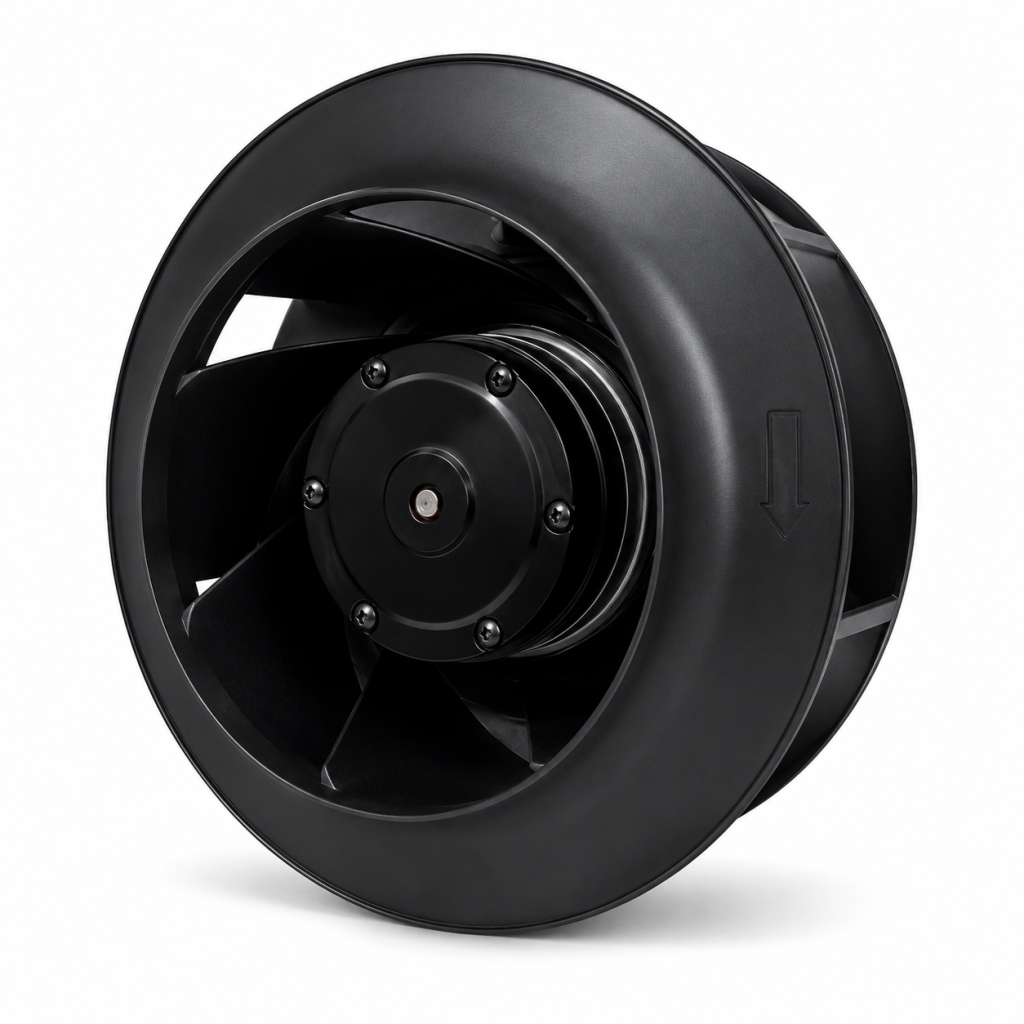

DC CENTRIFUGAL FANS
ø250X94 mm
PRODUCT SPECIFICATIONS
Impeller: Plastic (UL94 V-0)
Operating Temperature Range: -10°C ~ +60°C
Bearing: Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 1,675 g
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units

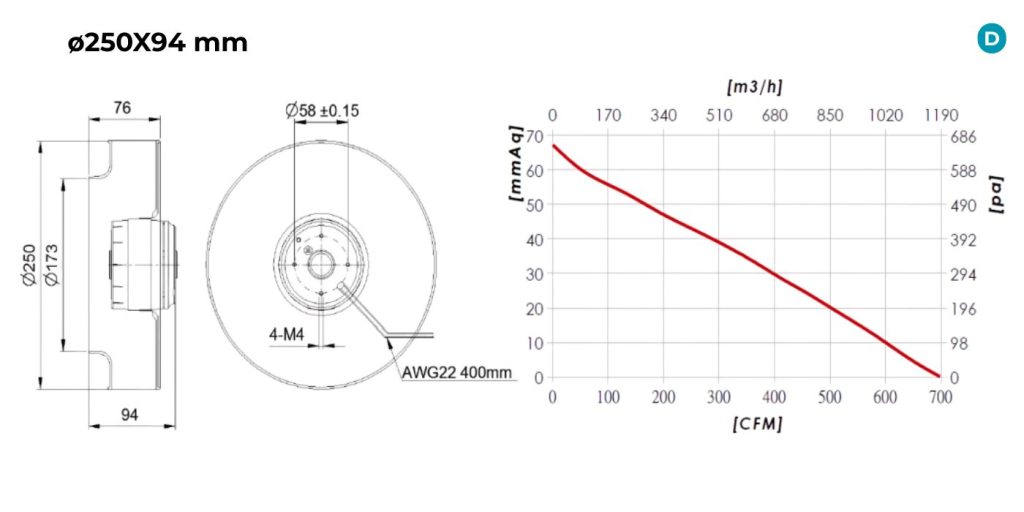

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|
| HYDC725094HB | 24 | 5 | 2800 | 698 | 2.68 | 72 |
