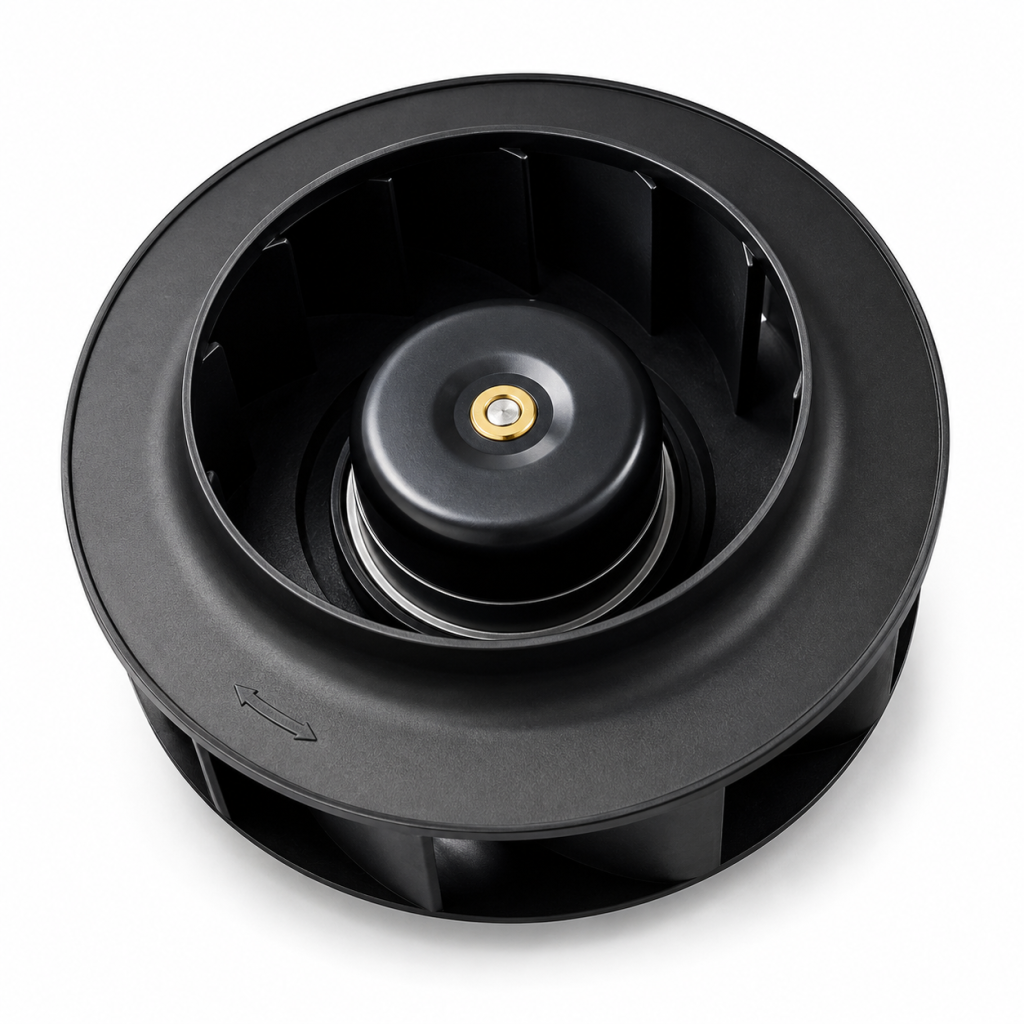

EC CENTRIFUGAL FANS
ø250X130 mm
PRODUCT SPECIFICATIONS
Frame: Aluminum
Impeller: Plastic (UL94 V-0)
Ambient Temperature Range: -10°C ~ +70°C
Bearing: Ball Bearing
Weight: 2,000 g
Typical Applications
HVAC Systems
Machinery Cooling
Industrial Ventilation
Air Handling Units

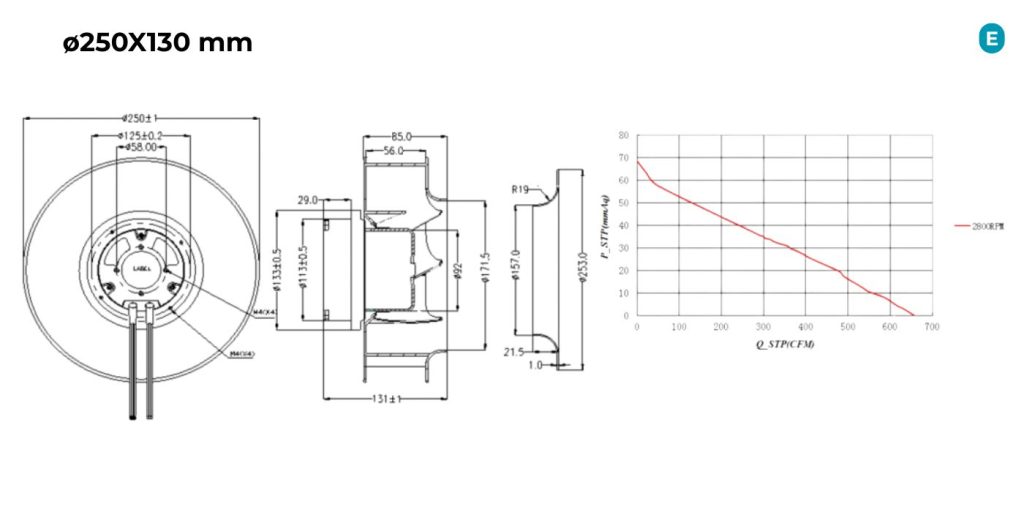

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Operating Range (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Airflow (m³/min) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|---|
| HYEC12513HB | 110 | 80–135 | 50/60 | 123 | 2800 | 657 | 18.6 | 2.7 | 74 |
| HYEC22513HB | 220 | 180–265 | 50/60 | 123 | 2800 | 657 | 18.6 | 2.7 | 74 |
