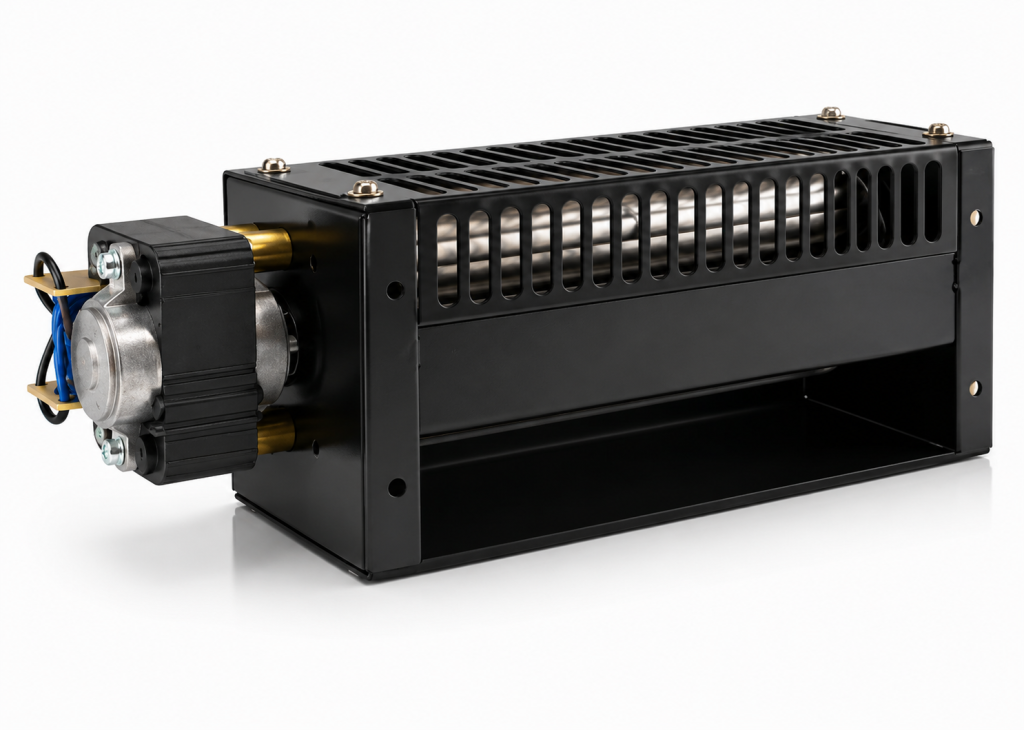

AC CROSS FLOW FANS
6017 Series
PRODUCT SPECIFICATIONS
Frame: Steel
Impeller: Aluminum
Ambient Temperature Range: -10°C ~ +70°C
Bearing: Ball Bearing
Motor Structure: Shaded-Pole or Capacitor Induction Motor
Weight: 1.6 kg
Typical Applications
HVAC Systems
Electronic Equipment
Industrial Equipment
Air Curtains
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYF16017HB | 120 | 50/60 | 27/25 | 0.45/0.42 | 2400/2500 | 90/95 | 3.5/3.7 | 51/52 |
| HYF16017MB | 120 | 50/60 | 27/25 | 0.30/0.28 | 2350/2000 | 88/72 | 3.5/2.8 | 33/38 |
| HYF26017HB | 230 | 50/60 | 27/25 | 0.22/0.2 | 2300/2400 | 85/90 | 3.3/3.5 | 38/38 |
