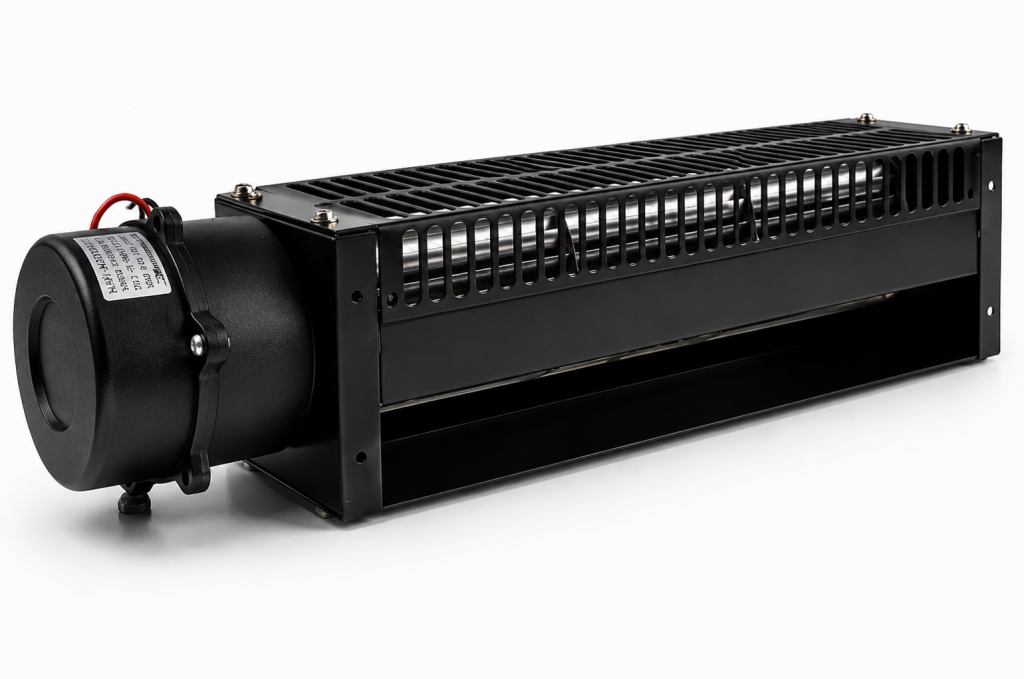

AC CROSS FLOW FANS
6036 Series
PRODUCT SPECIFICATIONS
Frame: Steel
Impeller: Aluminum
Ambient Temperature Range: -10°C ~ +70°C
Bearing: Ball Bearing
Motor Structure: Shaded-Pole or Capacitor Induction Motor
Weight: 2.1 kg
Typical Applications
HVAC Systems
Electronic Equipment
Industrial Equipment
Air Curtains

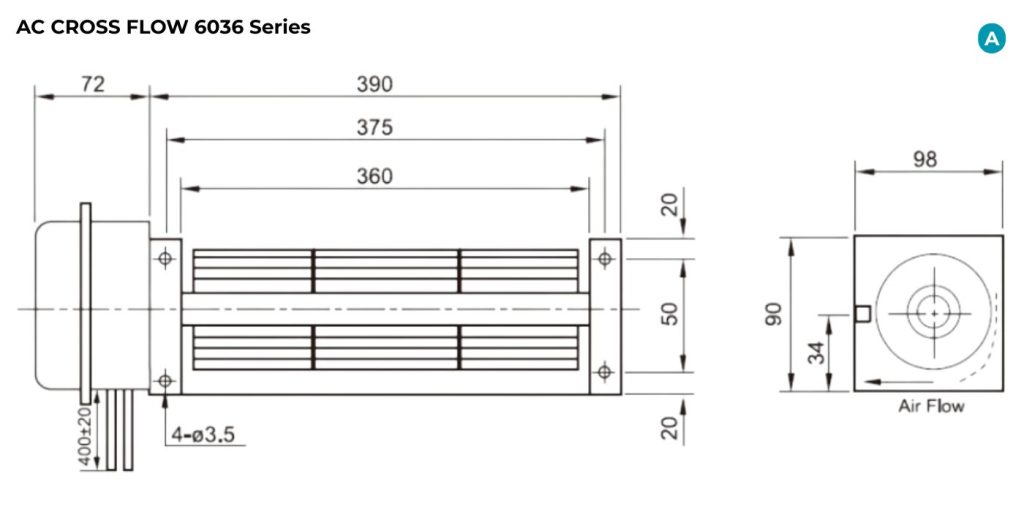

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYF16036HB | 120 | 50/60 | 35/37 | 0.33/0.33 | 2500/2800 | 195/212 | 5/7.5 | 50/53 |
| HYF26036HB | 230 | 50/60 | 35/37 | 0.17/0.17 | 2500/2800 | 195/212 | 5/7.5 | 50/53 |
