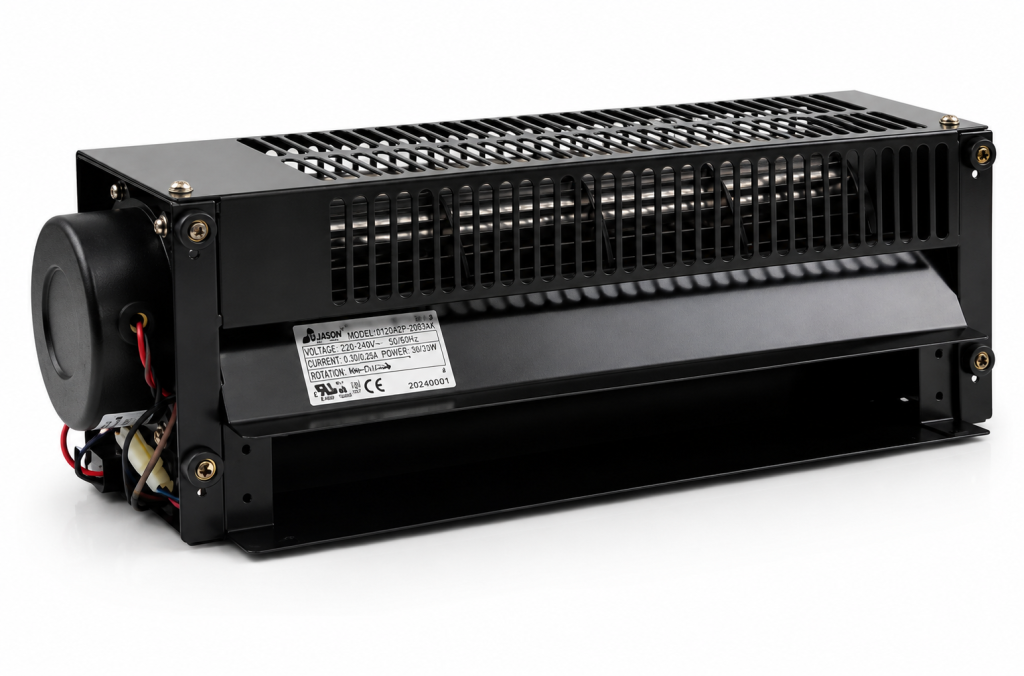

AC CROSS FLOW FANS
9029 Series
PRODUCT SPECIFICATIONS
Frame: Steel
Impeller: Plastic (UL94 V-0)
Ambient Temperature Range: -10°C ~ +70°C
Bearing: Ball Bearing
Motor Structure: Shaded-Pole or Capacitor Induction Motor
Weight: 3 kg
Typical Applications
HVAC Systems
Electronic Equipment
Industrial Equipment
Air Curtains

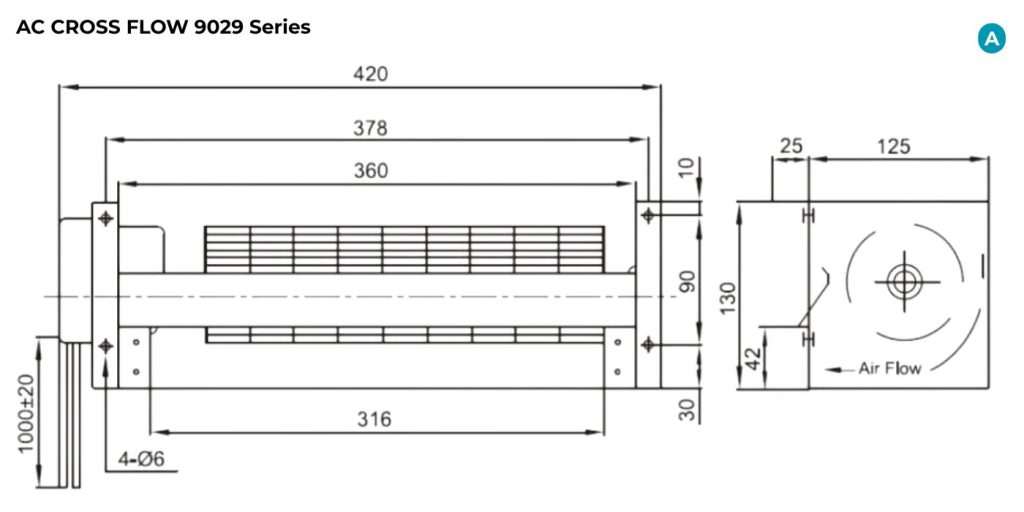

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYF19029HB | 120 | 50/60 | 33/31 | 0.28/0.27 | 1350/1560 | 159/177 | 2.2/3.3 | 43/46 |
| HYF29029HB | 230 | 50/60 | 33/31 | 0.14/0.13 | 1350/1560 | 159/177 | 2.2/3.3 | 43/46 |
