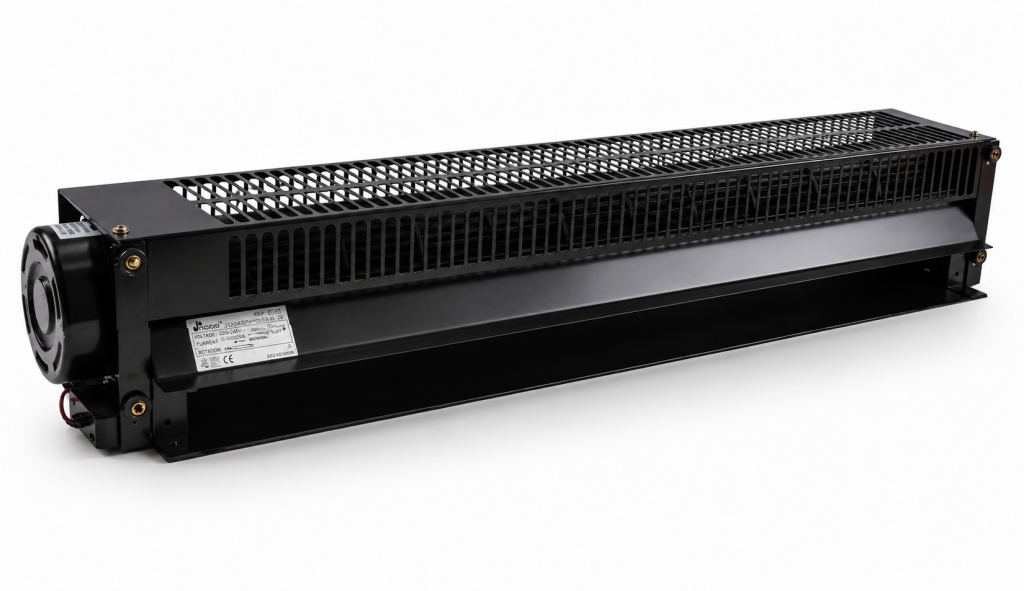

AC CROSS FLOW FANS
9060 Series
PRODUCT SPECIFICATIONS
Frame: Steel
Impeller: Plastic (UL94 V-0)
Ambient Temperature Range: -10°C ~ +70°C
Bearing: Ball Bearing
Motor Structure: Shaded-Pole or Capacitor Induction Motor
Weight: 6 kg
Typical Applications
HVAC Systems
Electronic Equipment
Industrial Equipment
Air Curtains

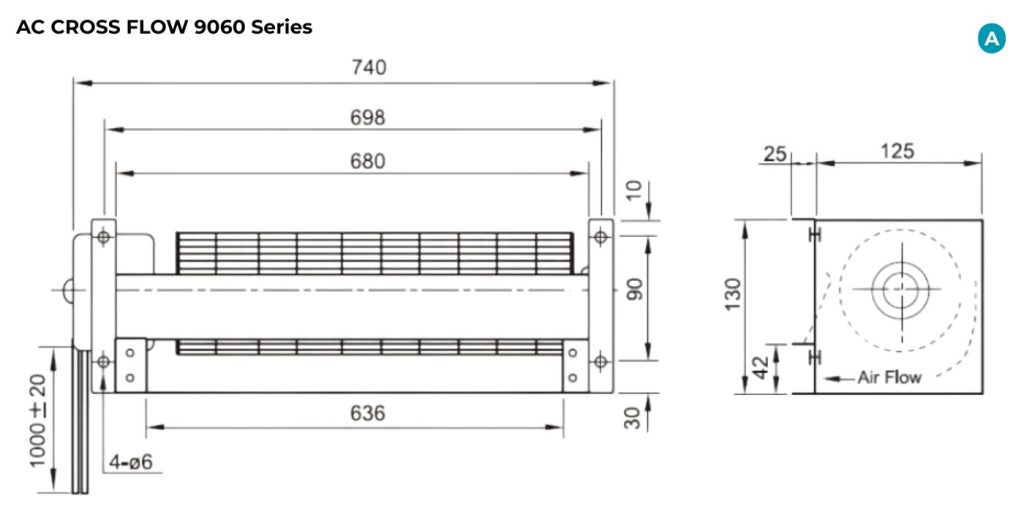

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYF19060HB | 120 | 50/60 | 130/160 | 1/1.25 | 2150/2100 | 550/530 | 9/11 | 55/54 |
| HYF29060HB | 230 | 50/60 | 130/160 | 0.55/0.7 | 2150/2100 | 550/530 | 9/11 | 55/54 |
