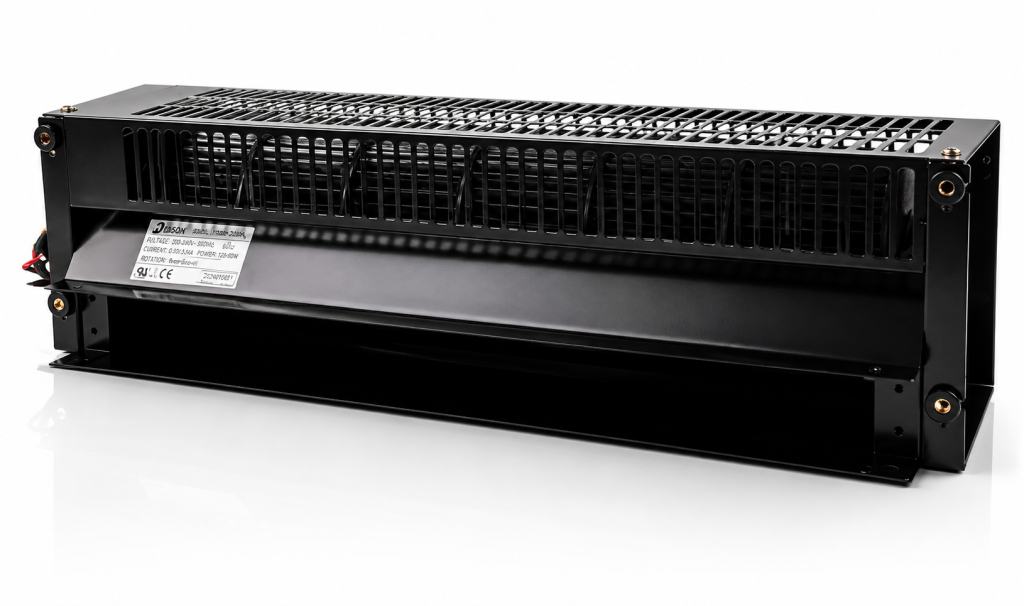

AC CROSS FLOW FANS
9446 Series
PRODUCT SPECIFICATIONS
Frame: Steel
Impeller: Plastic (UL94 V-0)
Ambient Temperature Range: -10°C ~ +70°C
Bearing: Ball Bearing
Motor Structure: Shaded-Pole or Capacitor Induction Motor
Weight: 3.6 kg
Typical Applications
HVAC Systems
Electronic Equipment
Industrial Equipment
Air Curtains

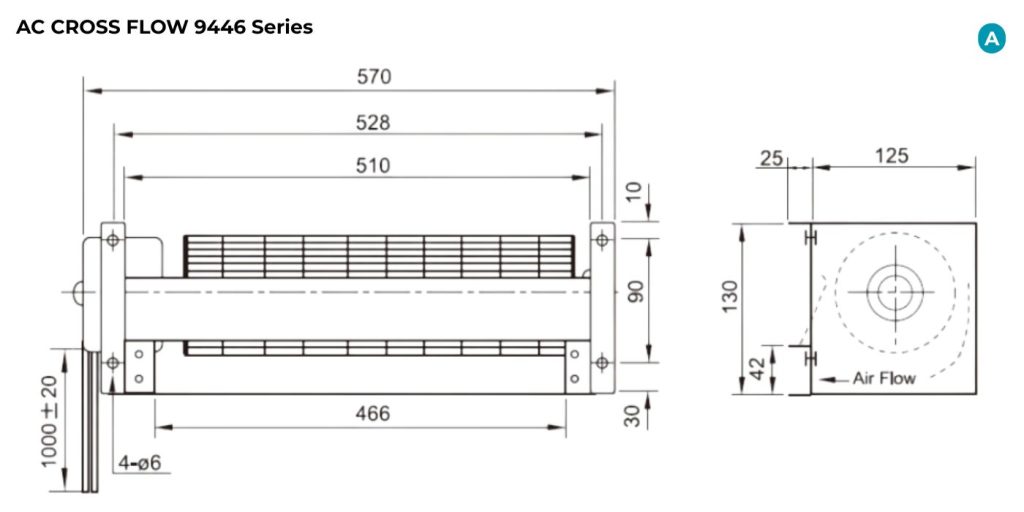

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYF19446HB | 120 | 50/60 | 43/50 | 0.4/0.42 | 1350/1550 | 300/354 | 3.5/5 | 48/53 |
| HYF29446HB | 230 | 50/60 | 43/50 | 0.2/0.23 | 1350/1550 | 300/354 | 3.5/5 | 48/53 |
