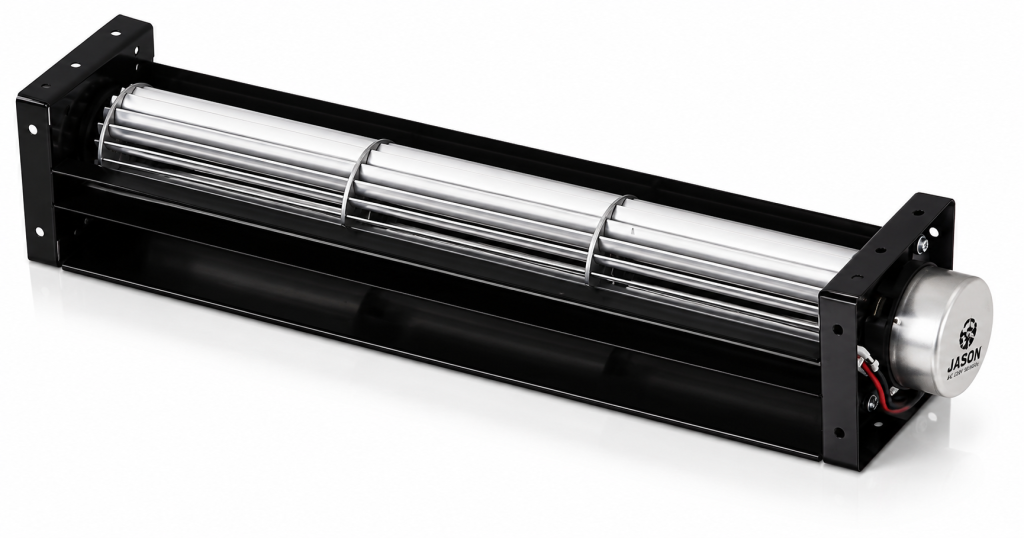

DC CROSS FLOW FANS
30B Series
PRODUCT SPECIFICATIONS
Frame: Steel
Impeller: Aluminum Alloy
Motor Structure: Single-Phase Brushless DC Motor
Typical Applications
HVAC Systems
Electronic Equipment
Industrial Equipment
Air Curtains

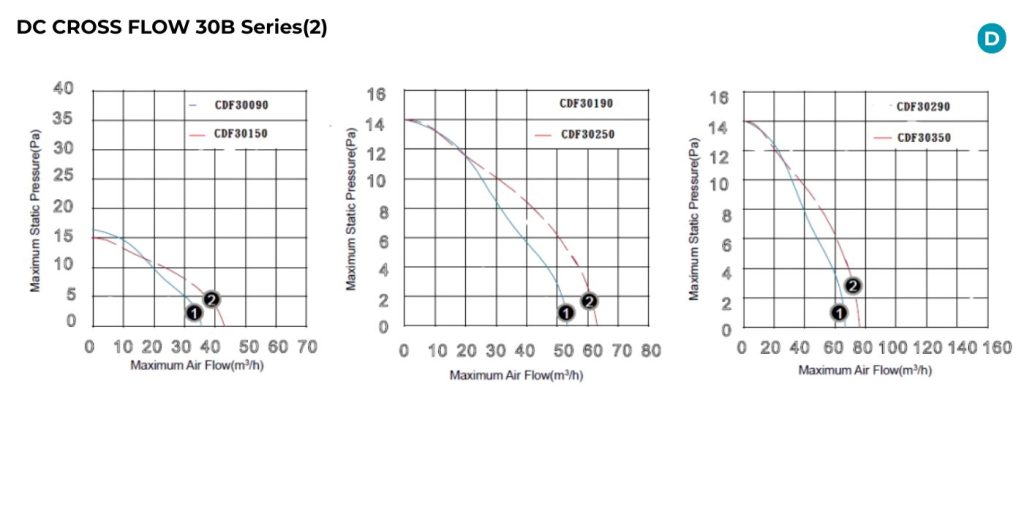

TECHNICAL DATA
Performance Specifications

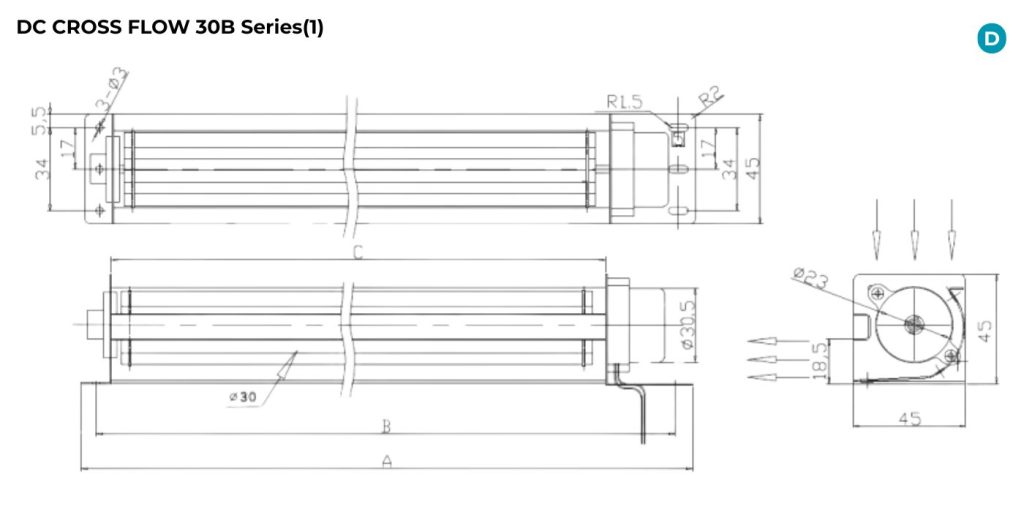

| Model | Size (mm) | Voltage (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | |||||||
| HYDF1230090BM-B | 143 | 108 | 98 | 12 | 0.10 | 3000 | 20.6 | 0.068 | 29 |
| HYDF2430090BM-B | 143 | 108 | 98 | 24 | 0.05 | 3000 | 20.6 | 0.068 | 29 |
| HYDF1230150BM-B | 200 | 170 | 160 | 12 | 0.12 | 2800 | 24.7 | 0.060 | 30 |
| HYDF2430150BM-B | 200 | 170 | 160 | 24 | 0.07 | 2800 | 24.7 | 0.060 | 30 |
| HYDF1230190BM-B | 222 | 208 | 198 | 12 | 0.14 | 2700 | 30.6 | 0.056 | 31 |
| HYDF2430190BM-B | 222 | 208 | 198 | 24 | 0.08 | 2700 | 30.6 | 0.056 | 31 |
| HYDF1230250BM-B | 293 | 258 | 248 | 12 | 0.16 | 2600 | 38.3 | 0.056 | 32 |
| HYDF2430250BM-B | 293 | 258 | 248 | 24 | 0.09 | 2600 | 38.3 | 0.056 | 32 |
| HYDF1230290BM-B | 341 | 310 | 300 | 12 | 0.18 | 2500 | 42.4 | 0.052 | 33 |
| HYDF2430290BM-B | 341 | 310 | 300 | 24 | 0.09 | 2500 | 42.4 | 0.052 | 33 |
| HYDF1230350BM-B | 390 | 362 | 352 | 12 | 0.20 | 2400 | 49.4 | 0.052 | 35 |
| HYDF2430350BM-B | 390 | 362 | 352 | 24 | 0.10 | 2400 | 49.4 | 0.052 | 35 |
