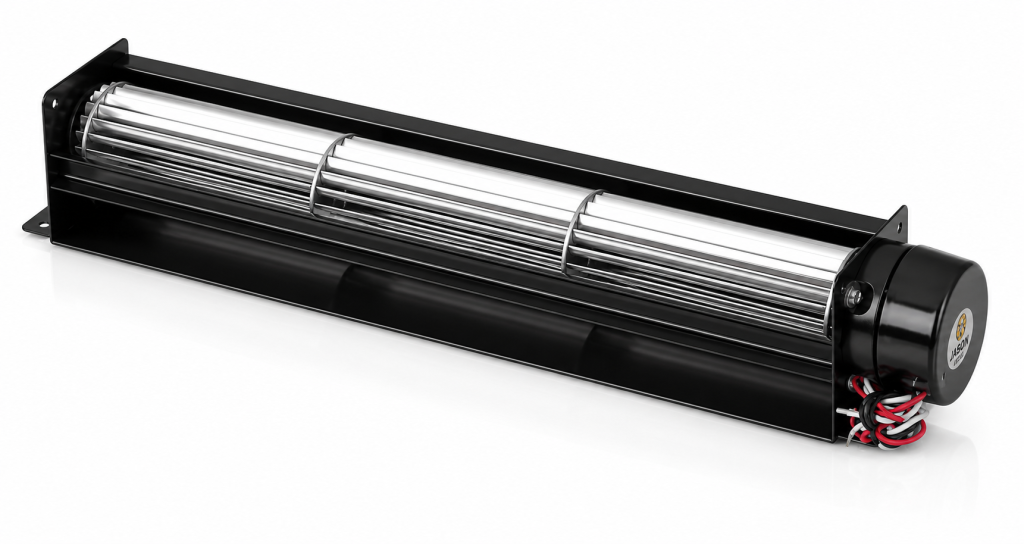

DC CROSS FLOW FANS
30C Series
PRODUCT SPECIFICATIONS
Frame: Steel
Impeller: Aluminum Alloy
Motor Structure: Single-Phase Brushless DC Motor
Typical Applications
HVAC Systems
Electronic Equipment
Industrial Equipment
Air Curtains
TECHNICAL DATA

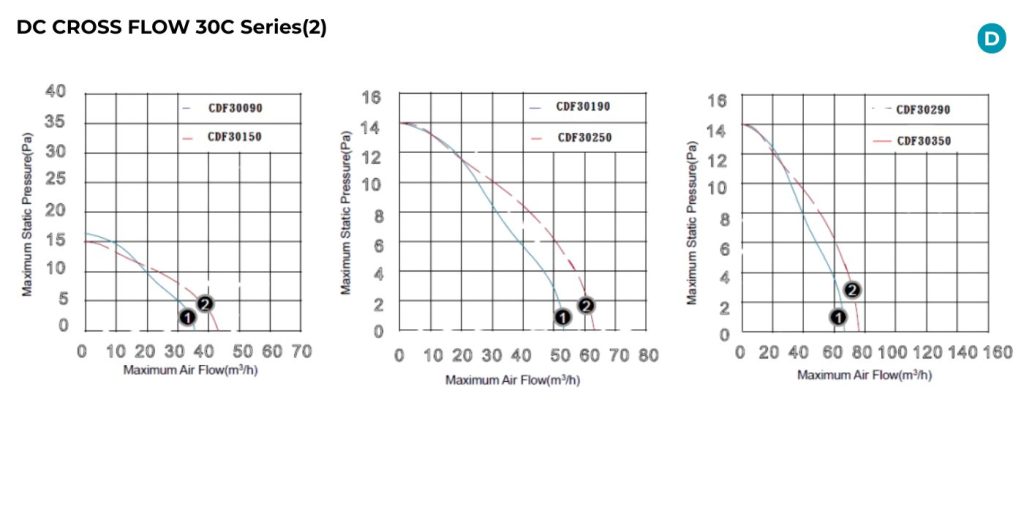

Performance Specifications
| Model | Size (mm) | Voltage (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
||
|---|---|---|---|---|---|---|---|---|---|

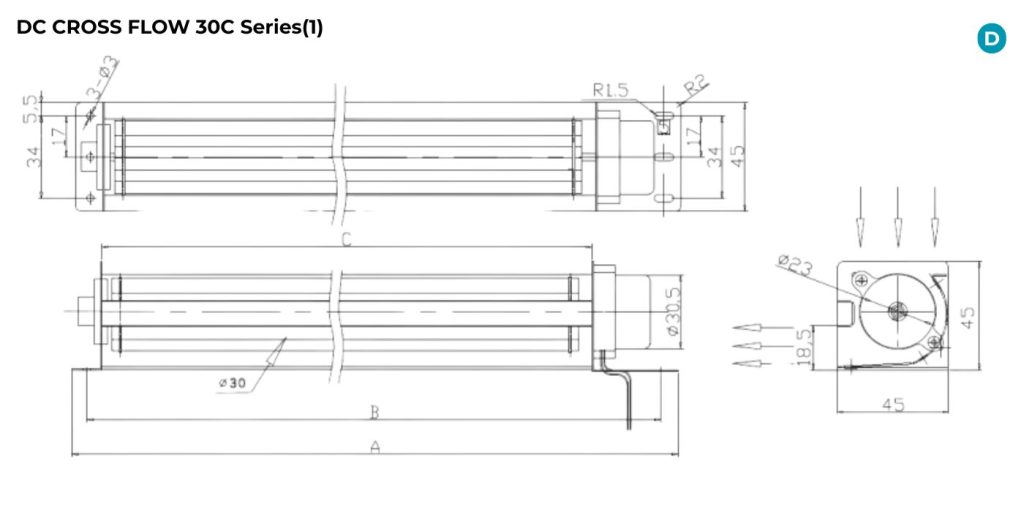

| A | B | C | |||||||
| HYDF1230090BM-C | 145 | 132 | 98 | 12 | 0.10 | 3000 | 20.6 | 0.068 | 29 |
| HYDF2430090BM-C | 145 | 132 | 98 | 24 | 0.05 | 3000 | 20.6 | 0.068 | 29 |
| HYDF1230150BM-C | 207 | 194 | 160 | 12 | 0.12 | 2800 | 24.7 | 0.060 | 30 |
| HYDF2430150BM-C | 207 | 194 | 160 | 24 | 0.07 | 2800 | 24.7 | 0.060 | 30 |
| HYDF1230190BM-C | 245 | 232 | 198 | 12 | 0.14 | 2700 | 30.6 | 0.056 | 31 |
| HYDF2430190BM-C | 245 | 232 | 198 | 24 | 0.08 | 2700 | 30.6 | 0.056 | 31 |
| HYDF1230250BM-C | 295 | 282 | 248 | 12 | 0.16 | 2600 | 38.3 | 0.056 | 32 |
| HYDF2430250BM-C | 295 | 282 | 248 | 24 | 0.09 | 2600 | 38.3 | 0.056 | 32 |
| HYDF1230290BM-C | 347 | 334 | 300 | 12 | 0.18 | 2500 | 42.4 | 0.052 | 33 |
| HYDF2430290BM-C | 347 | 334 | 300 | 24 | 0.09 | 2500 | 42.4 | 0.052 | 33 |
| HYDF1230350BM-C | 399 | 386 | 352 | 12 | 0.20 | 2400 | 49.4 | 0.052 | 35 |
| HYDF2430350BM-C | 399 | 386 | 352 | 24 | 0.10 | 2400 | 49.4 | 0.052 | 35 |
