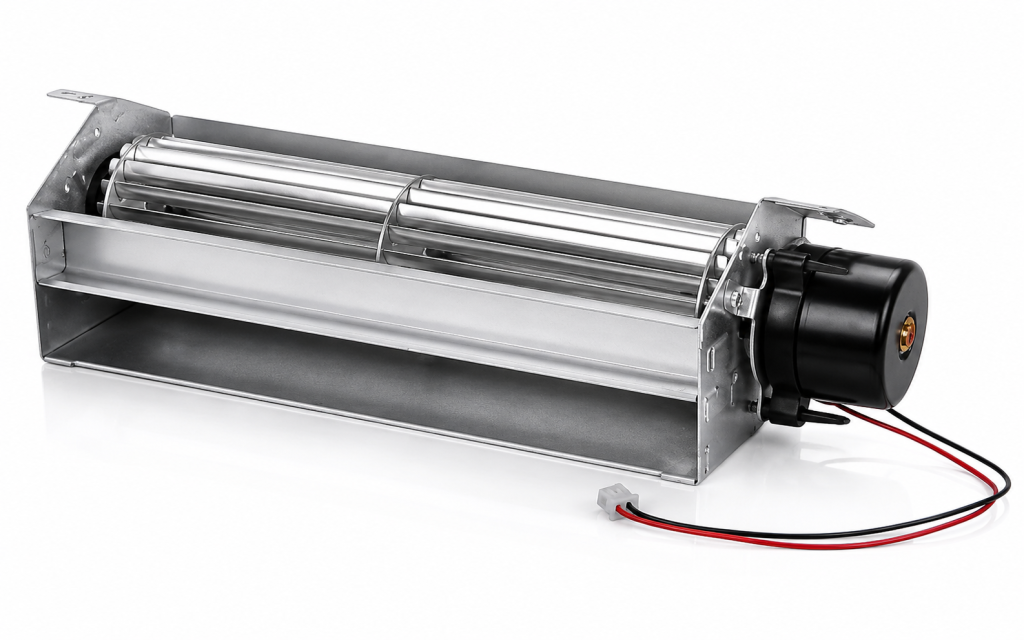

DC CROSS FLOW FANS
40C Series
PRODUCT SPECIFICATIONS
Frame: Steel
Impeller: Aluminum Alloy
Motor Structure: Single-Phase Brushless DC Motor
Typical Applications
HVAC Systems
Electronic Equipment
Industrial Equipment
Air Curtains
TECHNICAL DATA

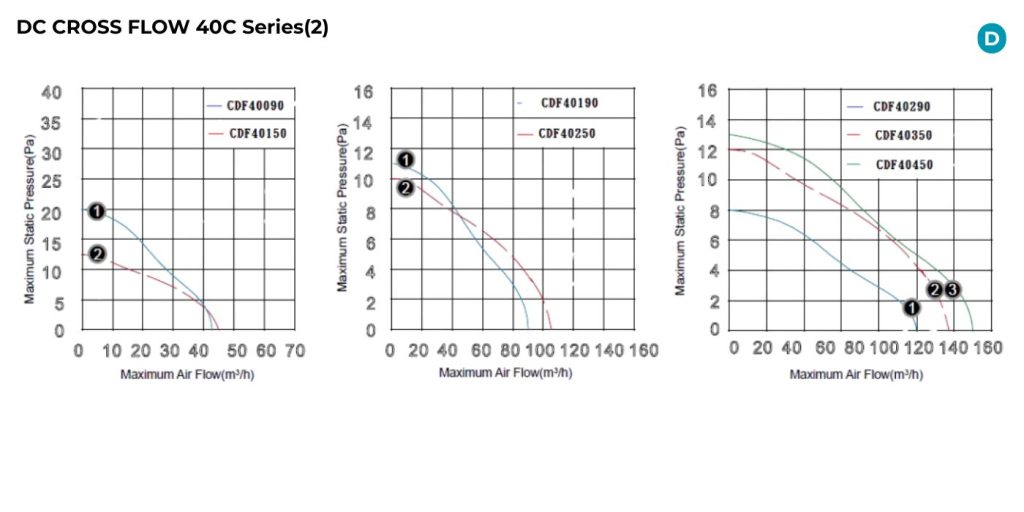

Performance Specifications
| Model | Size (mm) | Voltage (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
||
|---|---|---|---|---|---|---|---|---|---|

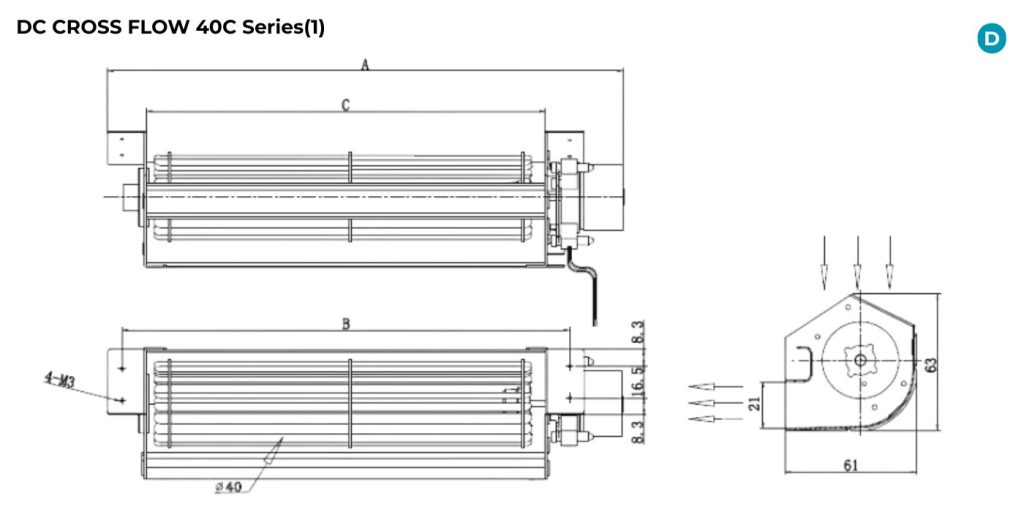

| A | B | C | |||||||
| HYDF1240090BM-C | 167 | 121 | 98 | 12 | 0.12 | 3000 | 24.7 | 0.114 | 33 |
| HYDF2440090BM-C | 167 | 121 | 98 | 24 | 0.07 | 3000 | 24.7 | 0.114 | 33 |
| HYDF1240150BM-C | 229 | 183 | 160 | 12 | 0.18 | 2700 | 35.3 | 0.102 | 34 |
| HYDF2440150BM-C | 229 | 183 | 160 | 24 | 0.10 | 2700 | 35.3 | 0.102 | 34 |
| HYDF1240190BM-C | 267 | 221 | 198 | 12 | 0.20 | 2500 | 49.4 | 0.098 | 35 |
| HYDF2440190BM-C | 267 | 221 | 198 | 24 | 0.12 | 2500 | 49.4 | 0.098 | 35 |
| HYDF1240250BM-C | 319 | 273 | 250 | 12 | 0.23 | 2400 | 63 | 0.094 | 36 |
| HYDF2440250BM-C | 319 | 273 | 250 | 24 | 0.13 | 2400 | 63 | 0.094 | 36 |
| HYDF1240290BM-C | 369 | 323 | 300 | 12 | 0.26 | 2300 | 74.2 | 0.083 | 37 |
| HYDF2440290BM-C | 369 | 323 | 300 | 24 | 0.14 | 2300 | 74.2 | 0.083 | 37 |
| HYDF1240350BM-C | 417 | 371 | 348 | 12 | 0.29 | 2200 | 84.7 | 0.079 | 38 |
| HYDF2440350BM-C | 417 | 371 | 348 | 24 | 0.16 | 2200 | 84.7 | 0.079 | 38 |
| HYDF1240450BM-C | 489 | 443 | 420 | 12 | 0.32 | 2000 | 91.8 | 0.071 | 39 |
| HYDF2440450BM-C | 489 | 443 | 420 | 24 | 0.17 | 2000 | 91.8 | 0.071 | 39 |
