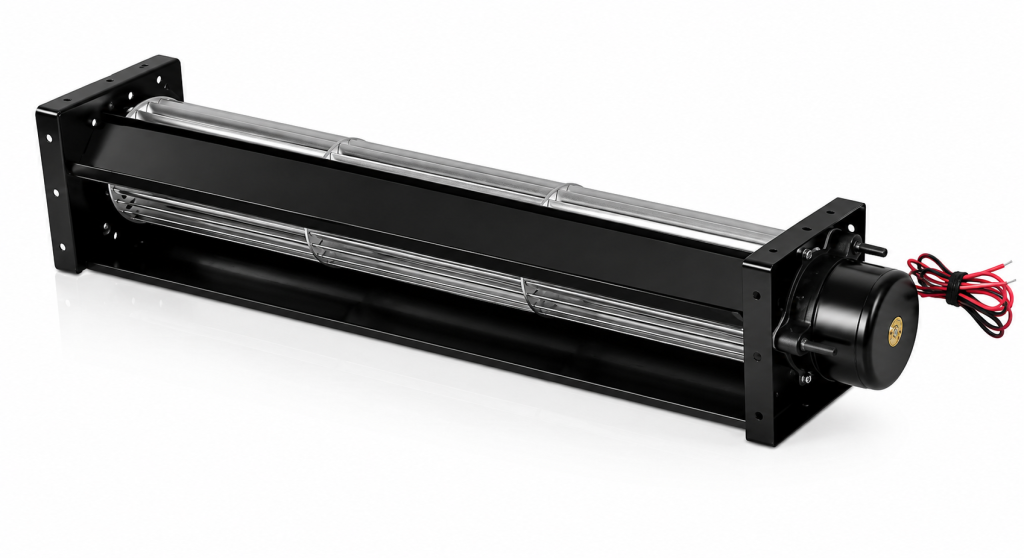

DC CROSS FLOW FANS
43A Series
PRODUCT SPECIFICATIONS
Frame: Steel
Impeller: Aluminum Alloy
Motor Structure: Single-Phase / Three-Phase Brushless DC Motor
Typical Applications
HVAC Systems
Electronic Equipment
Industrial Equipment
Air Curtains
TECHNICAL DATA

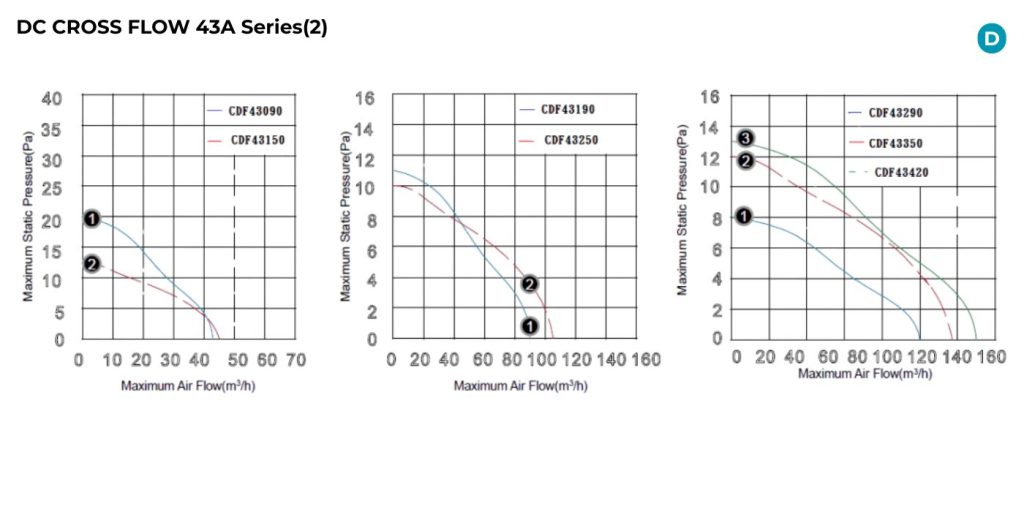

Performance Specifications
| Model | Size (mm) | Voltage (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
||
|---|---|---|---|---|---|---|---|---|---|

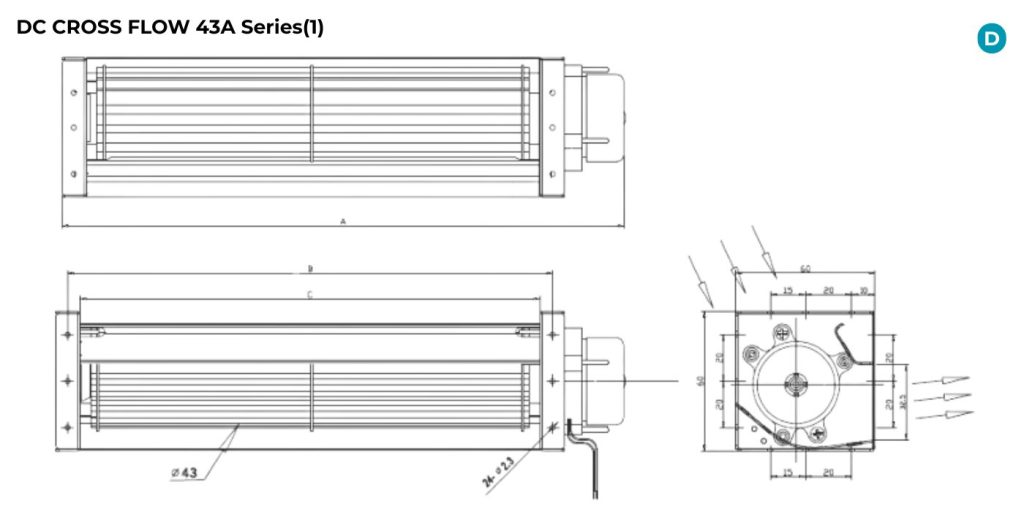

| A | B | C | |||||||
| HYDF1243090BM-A | 145 | 108 | 98 | 12 | 0.12 | 3000 | 25.3 | 0.079 | 36 |
| HYDF2443090BM-A | 145 | 108 | 98 | 24 | 0.07 | 3000 | 25.3 | 0.079 | 36 |
| HYDF1243150BM-A | 210 | 170 | 160 | 12 | 0.18 | 2700 | 44.1 | 0.047 | 37 |
| HYDF2443150BM-A | 210 | 170 | 160 | 24 | 0.10 | 2700 | 44.1 | 0.047 | 37 |
| HYDF1243190BM-A | 230 | 208 | 198 | 12 | 0.20 | 2500 | 55.9 | 0.043 | 39 |
| HYDF2443190BM-A | 230 | 208 | 198 | 24 | 0.12 | 2500 | 55.9 | 0.043 | 39 |
| HYDF1243250BM-A | 300 | 160 | 250 | 12 | 0.23 | 2400 | 60.0 | 0.039 | 40 |
| HYDF2443250BM-A | 300 | 160 | 250 | 24 | 0.13 | 2400 | 60.0 | 0.039 | 40 |
| HYDF1243290BM-A | 352 | 310 | 300 | 12 | 0.26 | 2300 | 70.6 | 0.031 | 41 |
| HYDF2443290BM-A | 352 | 310 | 300 | 24 | 0.14 | 2300 | 70.6 | 0.031 | 41 |
| HYDF1243350BM-A | 417 | 358 | 348 | 12 | 0.29 | 2100 | 81.2 | 0.047 | 41 |
| HYDF2443350BM-A | 417 | 358 | 348 | 24 | 0.16 | 2100 | 81.2 | 0.047 | 41 |
| HYDF1243420BM-A | 472 | 430 | 420 | 12 | 0.32 | 2000 | 88.3 | 0.051 | 38 |
| HYDF2443420BM-A | 472 | 430 | 420 | 24 | 0.17 | 2000 | 88.3 | 0.051 | 38 |
