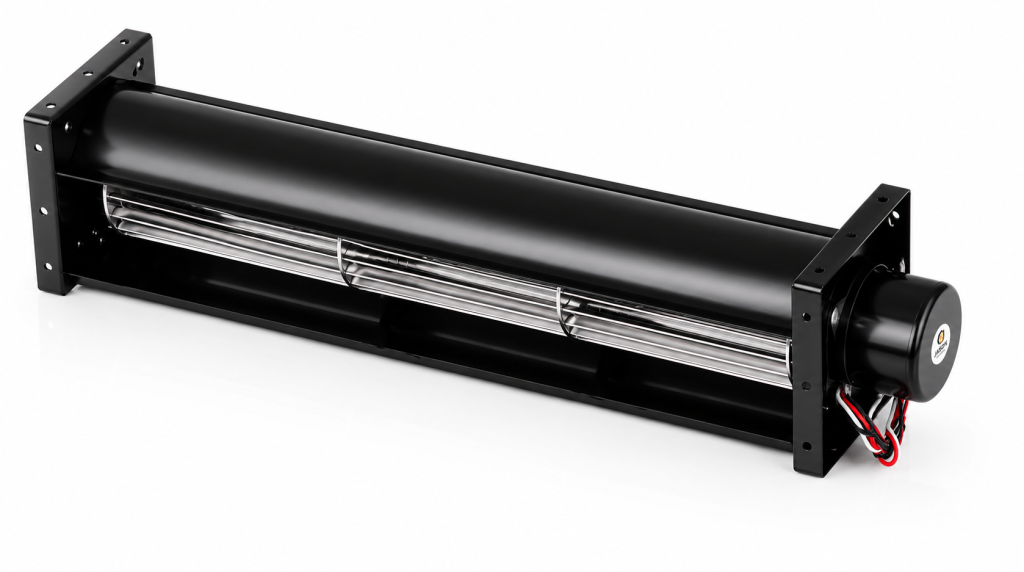

DC CROSS FLOW FANS
50A Series
PRODUCT SPECIFICATIONS
Frame: Steel
Impeller: Aluminum Alloy
Motor Structure: Single-Phase / Three-Phase Brushless DC Motor
Typical Applications
HVAC Systems
Electronic Equipment
Industrial Equipment
Air Curtains
TECHNICAL DATA

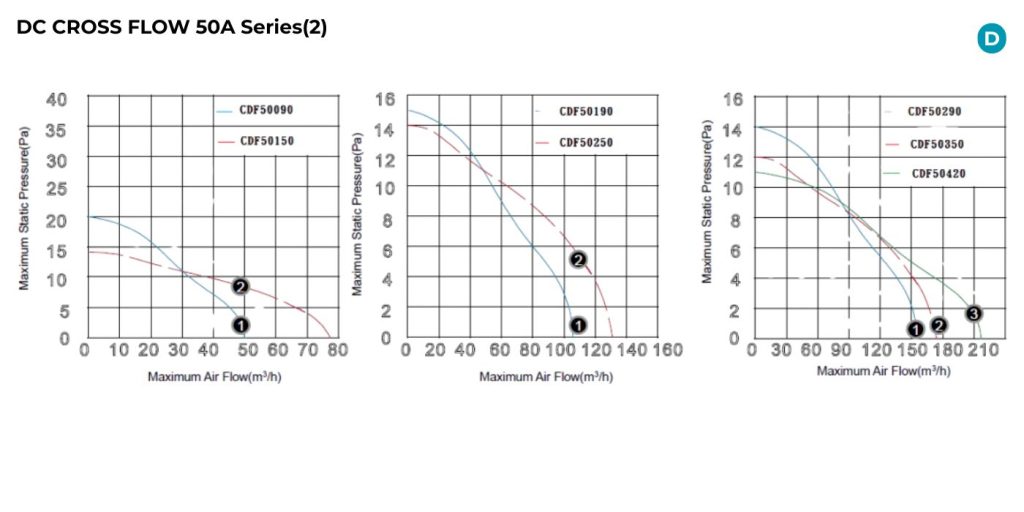

Performance Specifications
| Model | Size (mm) | Voltage (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
||
|---|---|---|---|---|---|---|---|---|---|

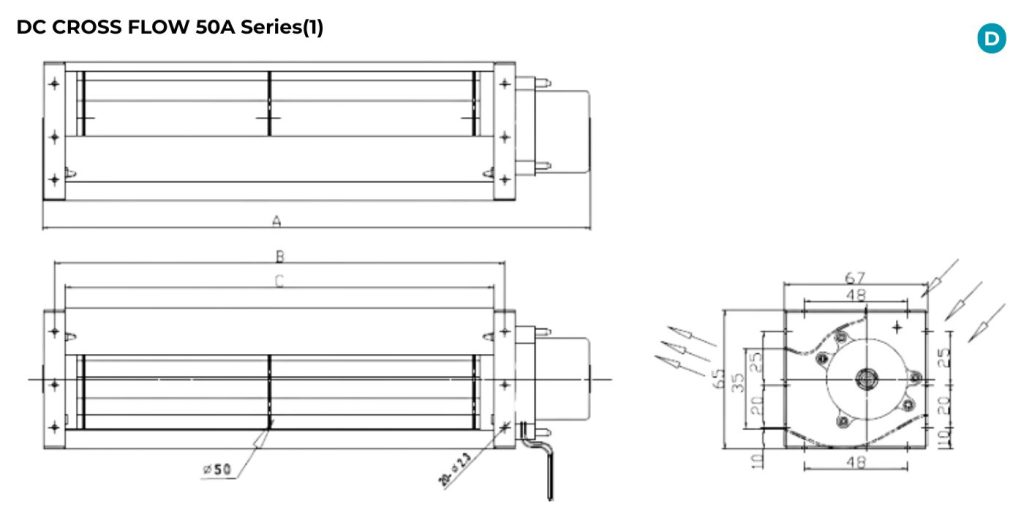

| A | B | C | |||||||
| HYDF1250090BM-A | 155 | 110 | 100 | 12 | 0.16 | 2700 | 17.7 | 0.076 | 38 |
| HYDF2450090BM-A | 155 | 110 | 100 | 24 | 0.10 | 2700 | 17.7 | 0.076 | 38 |
| HYDF1250150BM-A | 215 | 170 | 160 | 12 | 0.21 | 2500 | 26.5 | 0.052 | 39 |
| HYDF2450150BM-A | 215 | 170 | 160 | 24 | 0.12 | 2500 | 26.5 | 0.052 | 39 |
| HYDF1250190BM-A | 256 | 210 | 200 | 12 | 0.28 | 2600 | 36.5 | 0.056 | 41 |
| HYDF2450190BM-A | 256 | 210 | 200 | 24 | 0.15 | 2600 | 36.5 | 0.056 | 41 |
| HYDF1250250BM-A | 302 | 260 | 250 | 12 | 0.35 | 2500 | 47.1 | 0.052 | 42 |
| HYDF2450250BM-A | 302 | 260 | 250 | 24 | 0.18 | 2500 | 47.1 | 0.052 | 42 |
| HYDF1250290BM-A | 340 | 310 | 300 | 12 | 0.35 | 2500 | 53.6 | 0.052 | 43 |
| HYDF2450290BM-A | 340 | 310 | 300 | 24 | 0.18 | 2500 | 53.6 | 0.052 | 43 |
| HYDF1250350BM-A | 410 | 370 | 360 | 12 | 0.40 | 2400 | 61.8 | 0.052 | 44 |
| HYDF2450350BM-A | 410 | 370 | 360 | 24 | 0.21 | 2400 | 61.8 | 0.052 | 44 |
| HYDF1250420BM-A | 475 | 430 | 420 | 12 | 0.46 | 2300 | 71.2 | 0.048 | 46 |
| HYDF2450420BM-A | 475 | 430 | 420 | 24 | 0.23 | 2300 | 71.2 | 0.048 | 46 |
