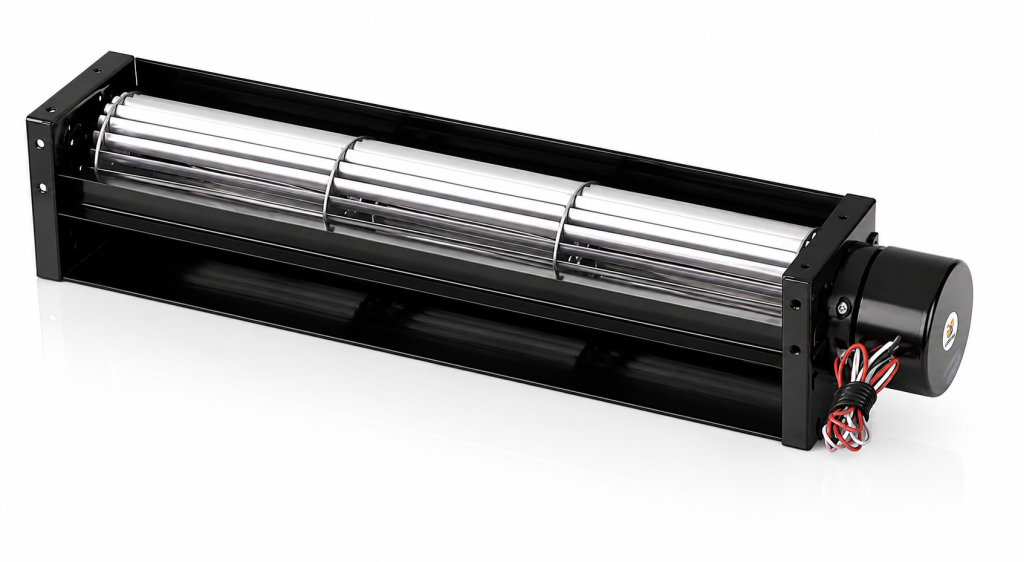

DC CROSS FLOW FANS
50B Series
PRODUCT SPECIFICATIONS
Frame: Steel
Impeller: Aluminum Alloy
Motor Structure: Single-Phase / Three-Phase Brushless DC Motor
Typical Applications
HVAC Systems
Electronic Equipment
Industrial Equipment
Air Curtains
TECHNICAL DATA

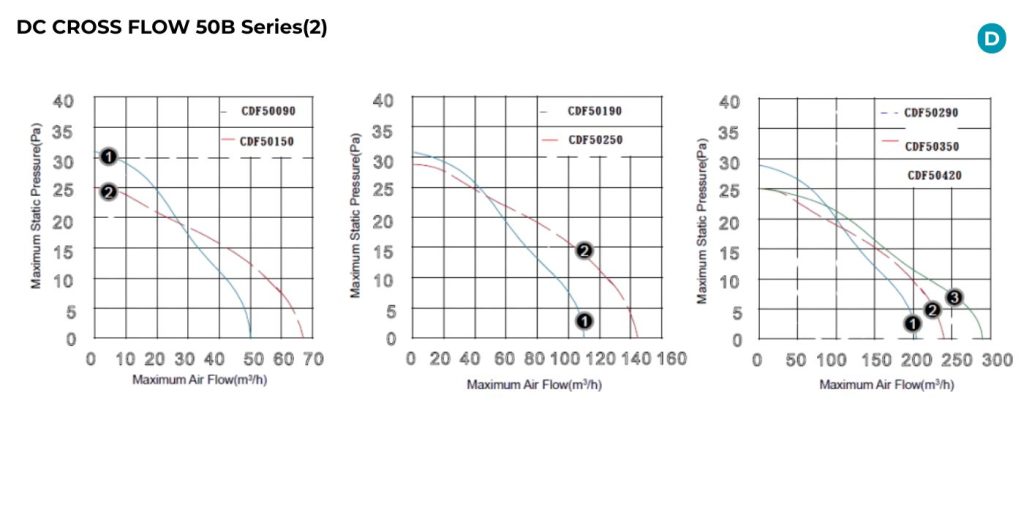

Performance Specifications

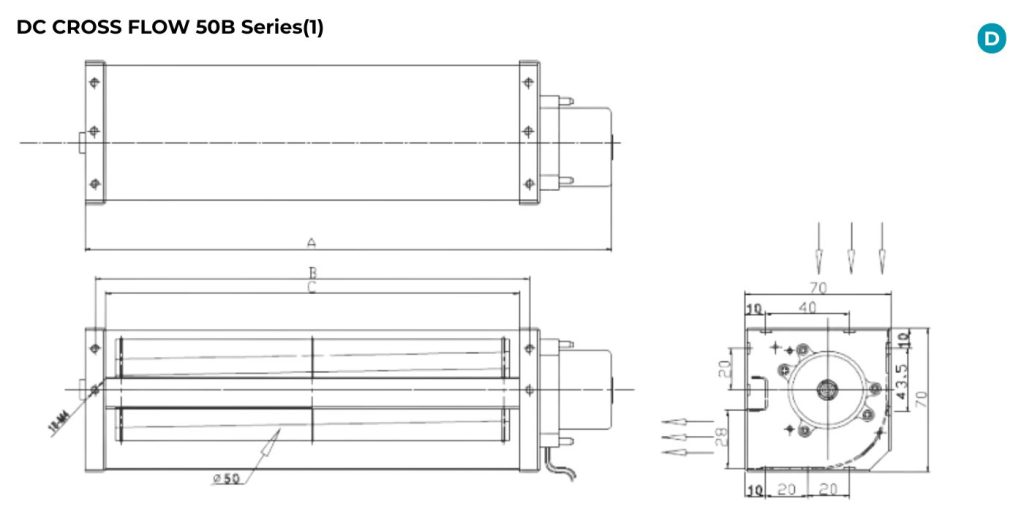

| Model | Size (mm) | Voltage (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | |||||||
| HYDF1250090BM-B | 166 | 108 | 98 | 12 | 0.20 | 2500 | 29.4 | 0.126 | 36 |
| HYDF2450090BM-B | 166 | 108 | 98 | 24 | 0.11 | 2500 | 29.4 | 0.126 | 36 |
| HYDF1250150BM-B | 229 | 168 | 158 | 12 | 0.30 | 2100 | 39.4 | 0.102 | 33 |
| HYDF2450150BM-B | 229 | 168 | 158 | 24 | 0.16 | 2100 | 39.4 | 0.102 | 33 |
| HYDF1250190BM-B | 266 | 208 | 198 | 12 | 0.56 | 2600 | 63.6 | 0.126 | 45 |
| HYDF2450190BM-B | 266 | 208 | 198 | 24 | 0.30 | 2600 | 63.6 | 0.126 | 45 |
| HYDF1250250BM-B | 310 | 258 | 248 | 12 | 0.73 | 2450 | 84.2 | 0.118 | 45 |
| HYDF2450250BM-B | 310 | 258 | 248 | 24 | 0.36 | 2450 | 84.2 | 0.118 | 45 |
| HYDF1250290BM-B | 390 | 308 | 363 | 12 | 0.79 | 2300 | 120.6 | 0.110 | 46 |
| HYDF2450290BM-B | 390 | 308 | 363 | 24 | 0.40 | 2300 | 120.6 | 0.110 | 46 |
| HYDF1250350BM-B | 422 | 368 | 358 | 12 | 0.90 | 2200 | 140.1 | 0.102 | 46 |
| HYDF2450350BM-B | 422 | 368 | 358 | 24 | 0.46 | 2200 | 140.1 | 0.102 | 46 |
| HYDF1250420BM-B | 476 | 428 | 418 | 12 | 0.93 | 2200 | 170.7 | 0.102 | 47 |
| HYDF2450420BM-B | 476 | 428 | 418 | 24 | 0.48 | 2200 | 170.7 | 0.102 | 47 |
