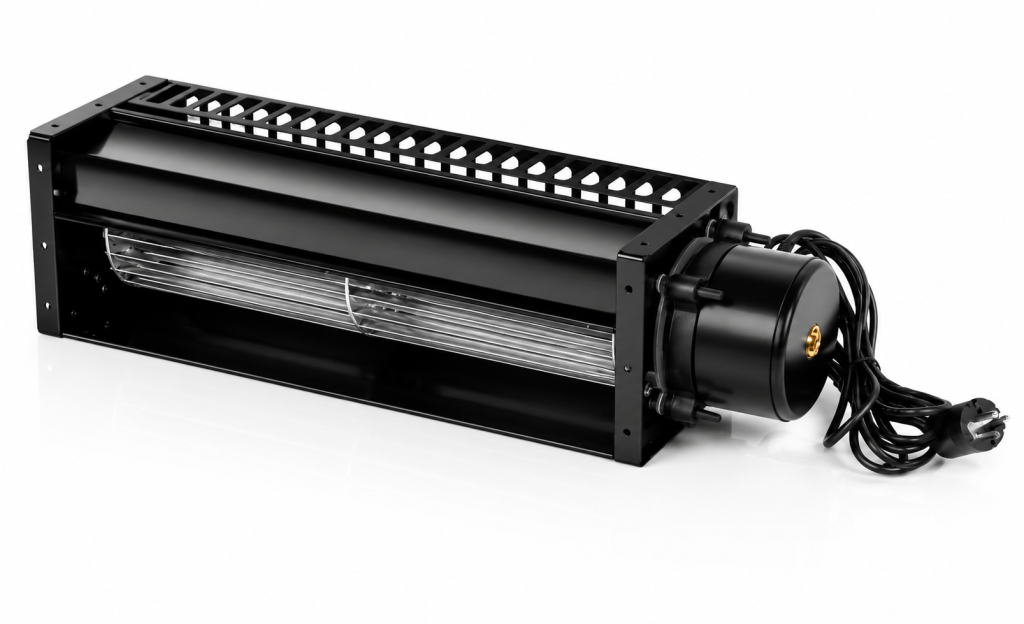

DC CROSS FLOW FANS
50C Series
PRODUCT SPECIFICATIONS
Frame: Steel
Impeller: Aluminum Alloy
Motor Structure: Single-Phase / Three-Phase Brushless DC Motor
Typical Applications
HVAC Systems
Electronic Equipment
Industrial Equipment
Air Curtains
TECHNICAL DATA

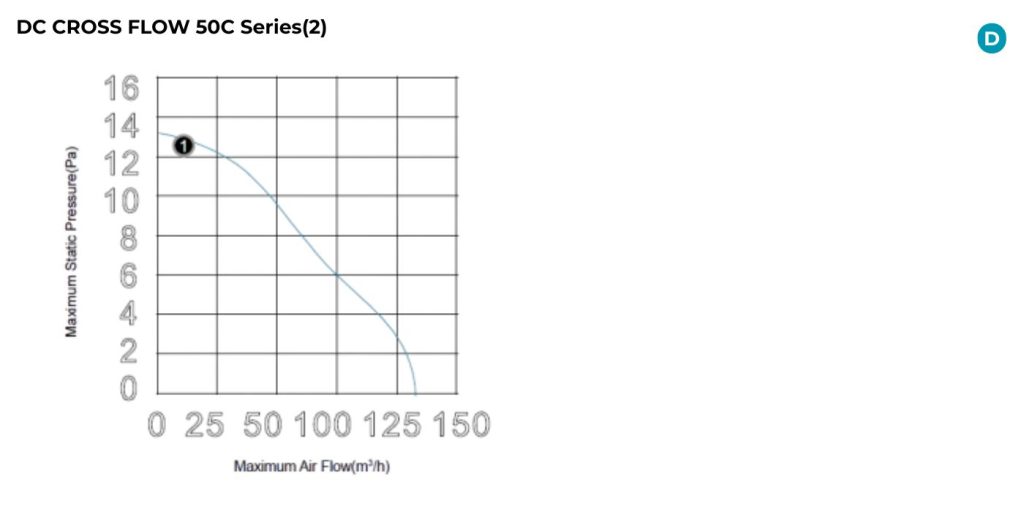

Performance Specifications
| Model | Size (mm) | Voltage (V) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
||
|---|---|---|---|---|---|---|---|---|---|

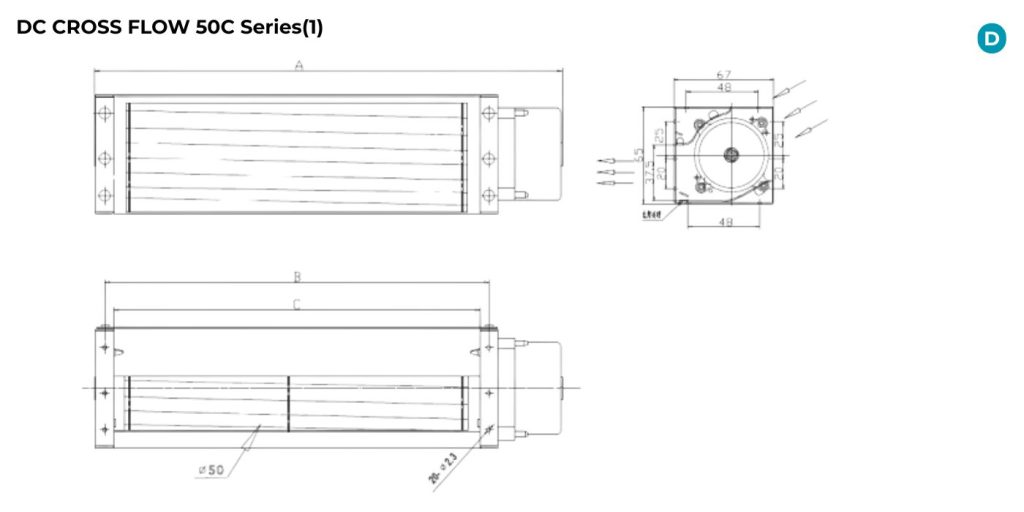

| A | B | C | |||||||
| HYDF1250190BM-C | 253 | 210 | 200 | 12 | 0.24 | 2600 | 91.8 | 0.071 | 46 |
