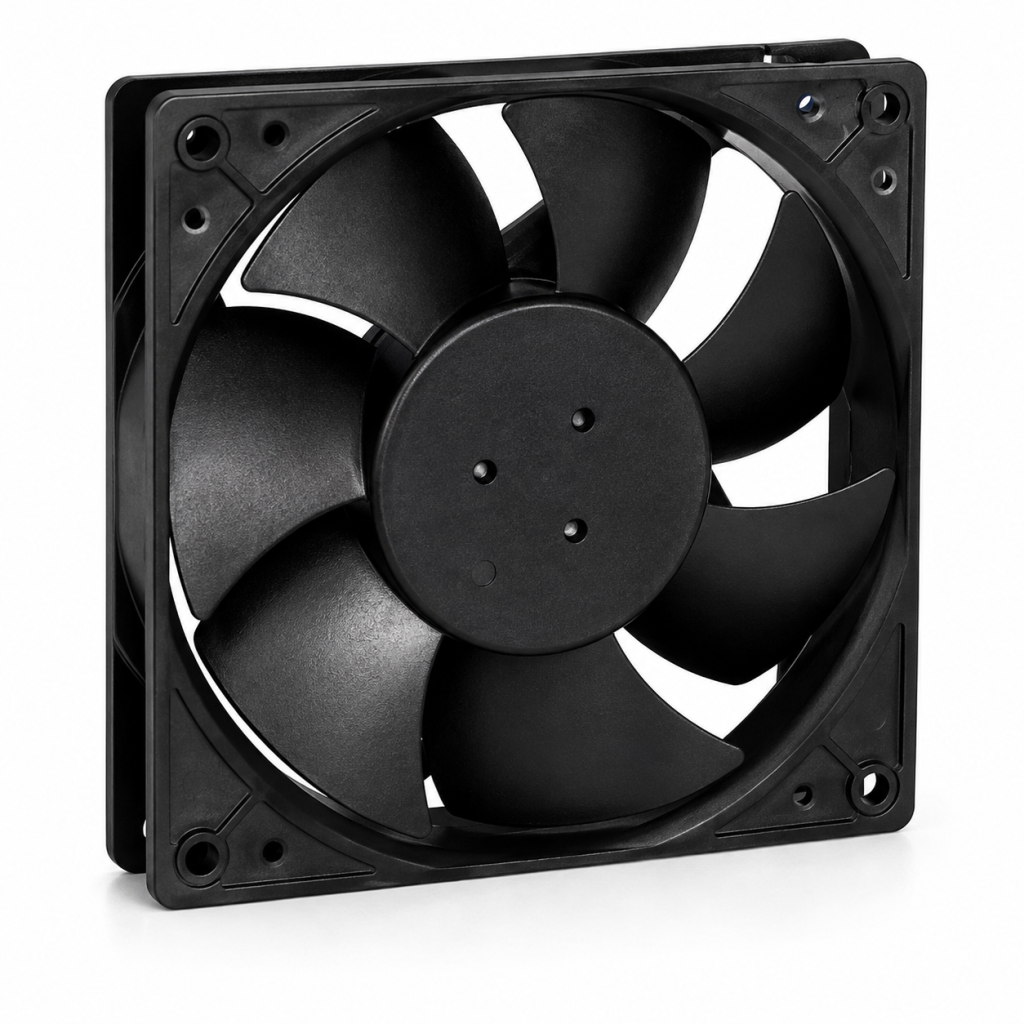

DC FANS
120x120x25C mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 230 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

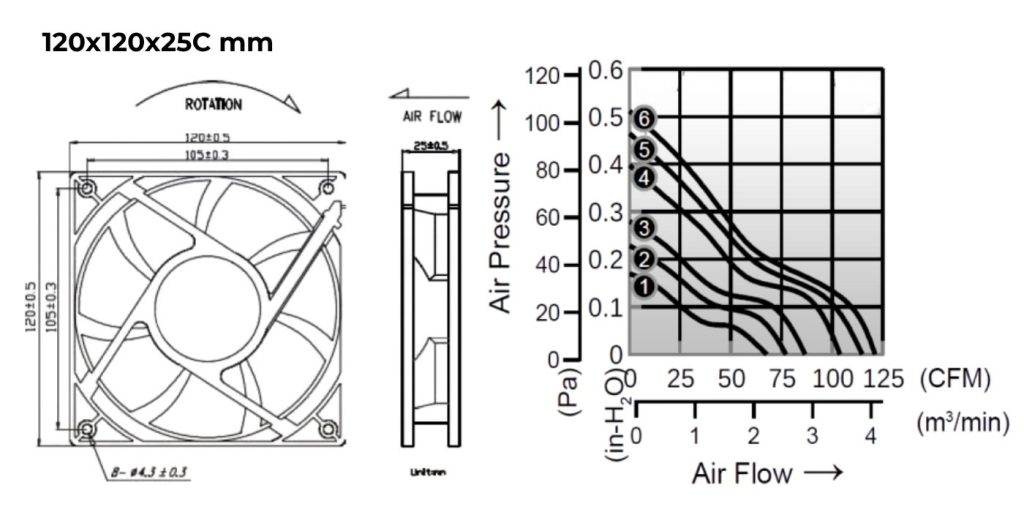

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYDC121225HB | 12 | 7.0 – 13.2 | 0.50 | 3400 | 103.9 | 0.40 | 47 |
| HYDC121225XB | 12 | 7.0 – 13.2 | 0.62 | 3700 | 114.8 | 0.46 | 50 |
| HYDC121225UB | 12 | 7.0 – 13.2 | 0.65 | 4000 | 121.1 | 0.51 | 52 |
| HYDC241225HB | 24 | 14.0 – 26.4 | 0.28 | 3400 | 103.9 | 0.40 | 47 |
| HYDC241225XB | 24 | 14.0 – 26.4 | 0.30 | 3700 | 114.8 | 0.46 | 50 |
| HYDC241225UB | 24 | 14.0 – 26.4 | 0.40 | 4000 | 121.1 | 0.51 | 52 |
| HYDC481225LB | 48 | 28.0 – 56.0 | 0.10 | 2500 | 77.2 | 0.23 | 39 |
| HYDC481225MB | 48 | 28.0 – 56.0 | 0.11 | 2800 | 86.7 | 0.28 | 42 |
| HYDC481225HB | 48 | 28.0 – 56.0 | 0.12 | 3400 | 103.9 | 0.40 | 47 |
