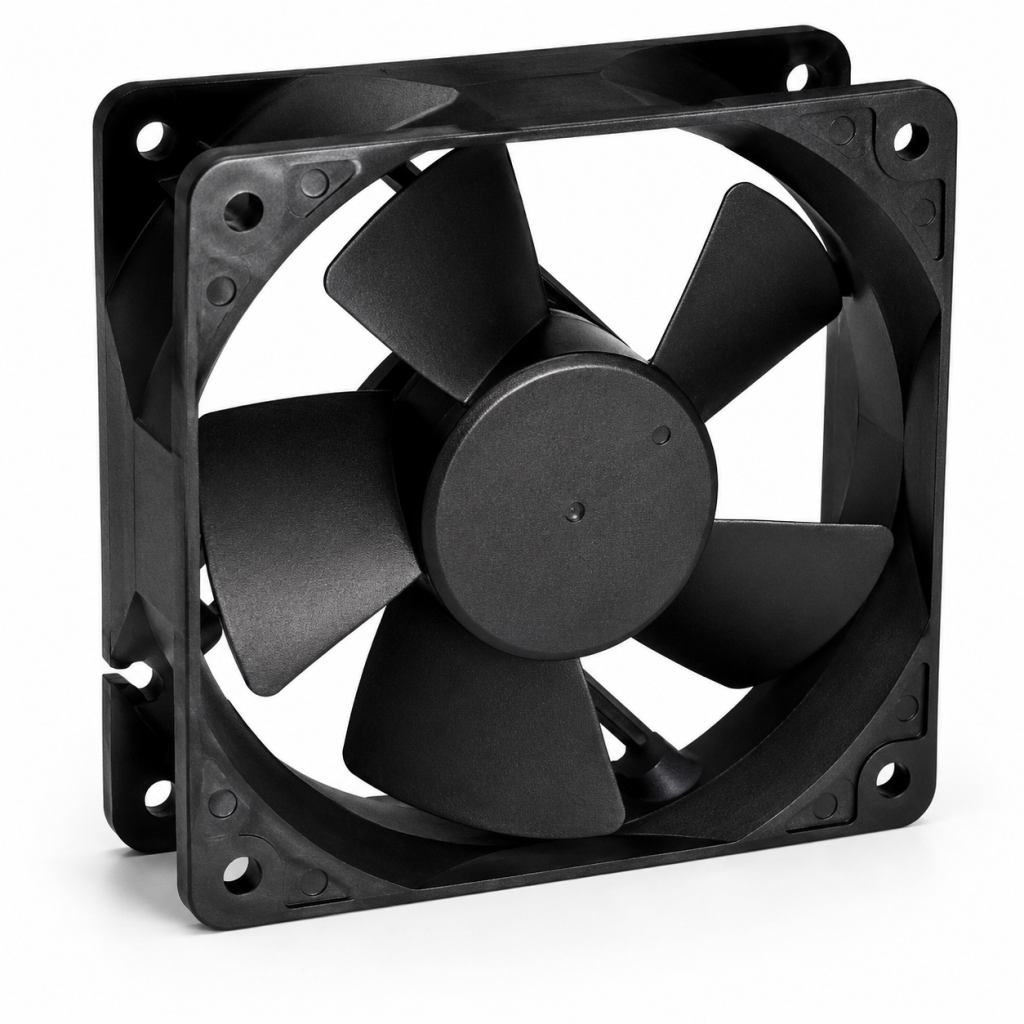

DC FANS
120x120x32Y mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Thermoplastic PBT UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Sleeve or Ball Bearing
Motor Structure: Brushless DC Motor
Termination: Lead wire 300± 10mm
Weight: 219 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

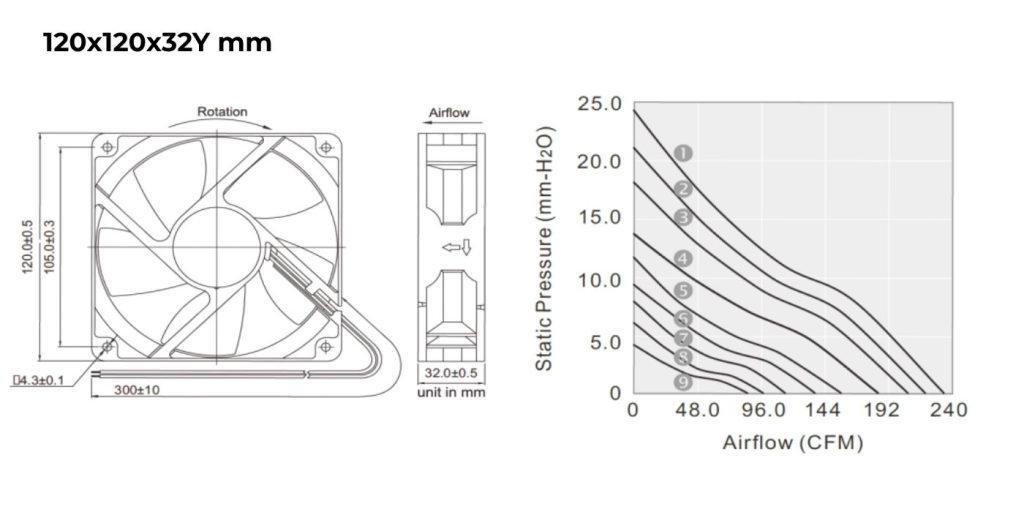

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYD121232HBL | 12 | 7.0 – 13.2 | 0.58 | 6.96 | 2900 | 87.7 | 0.31 | 47.5 |
| HYD121232XBL | 12 | 7.0 – 13.2 | 1.10 | 13.2 | 4100 | 115 | 0.54 | 58.5 |
| HYD121232UBL | 12 | 7.0 – 13.2 | 1.60 | 19.2 | 4600 | 184.8 | 0.72 | 61 |
| HYD121232VBL | 12 | 7.0 – 13.2 | 2.20 | 26.4 | 4900 | 207.3 | 0.83 | 62 |
| HYD241232HBL | 24 | 12.0 – 26.4 | 0.29 | 6.96 | 2900 | 115 | 0.31 | 47.5 |
| HYD241232XBL | 24 | 12.0 – 26.4 | 0.36 | 8.64 | 3500 | 157.7 | 0.46 | 55 |
| HYD241232UBL | 24 | 12.0 – 26.4 | 0.75 | 18 | 4600 | 207.3 | 0.72 | 61 |
| HYD241232VBL | 24 | 12.0 – 26.4 | 1.00 | 24 | 5200 | 234.3 | 0.96 | 63.5 |
| HYD481232HBL | 48 | 24.0 – 56.0 | 0.19 | 9.12 | 2900 | 115 | 0.31 | 47 |
| HYD481232XBL | 48 | 24.0 – 56.0 | 0.21 | 10.08 | 3500 | 157.7 | 0.46 | 55 |
| HYD481232UBL | 48 | 24.0 – 56.0 | 0.45 | 21.6 | 4600 | 207.3 | 0.72 | 61 |
| HYD481232VBL | 48 | 24.0 – 56.0 | 0.60 | 28.8 | 5200 | 234.3 | 0.96 | 63.5 |
