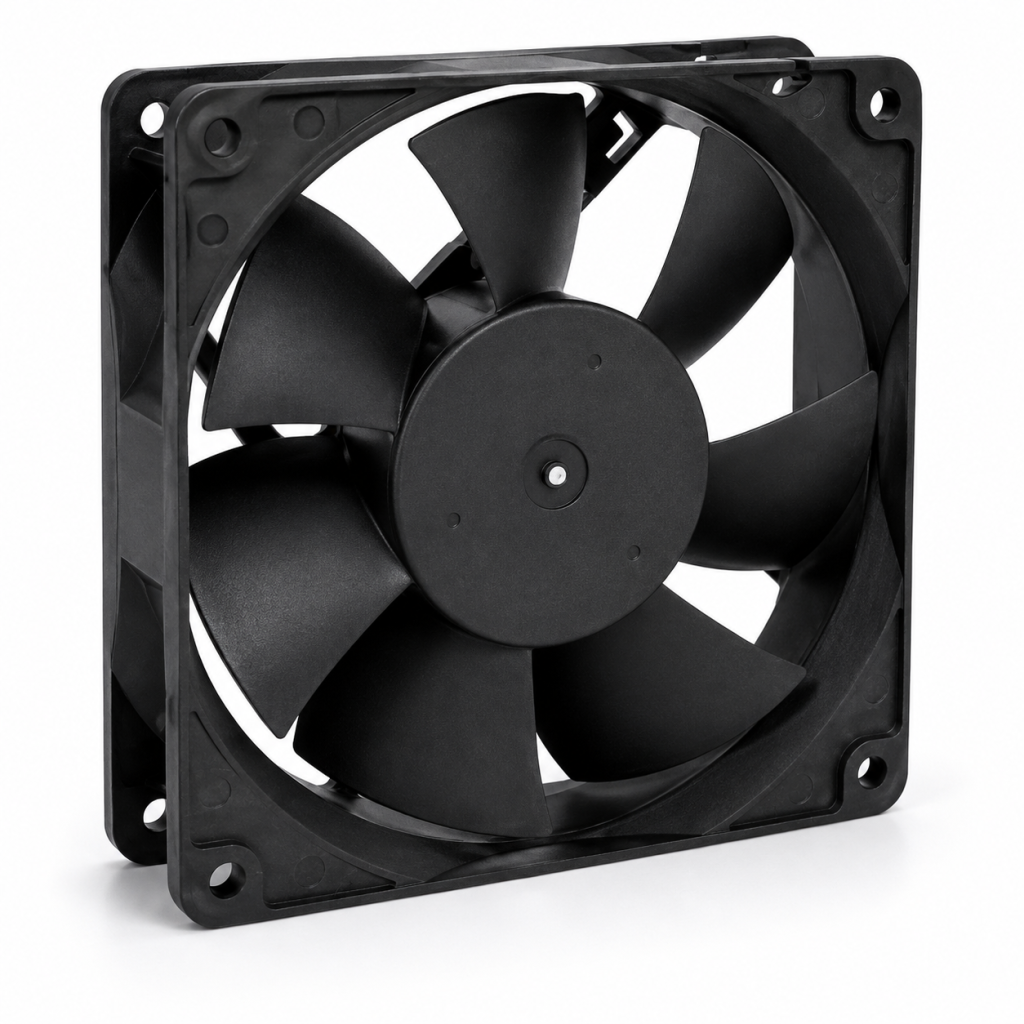

DC FANS
120x120x38 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Sleeve or Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 260 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

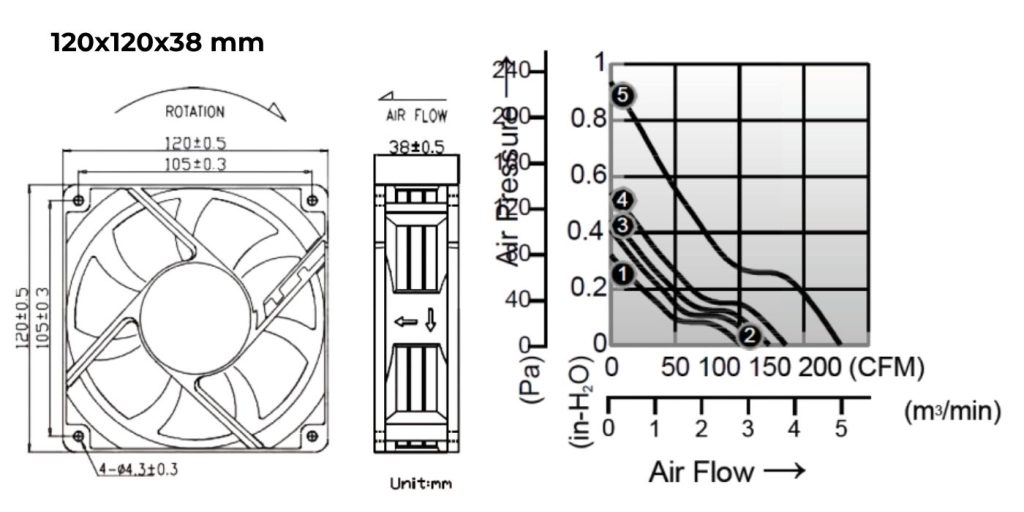

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD121238XB | 12 | 7.0 – 13.2 | 0.75 | 2900 | 123.2 | 0.45 | 44 |
| HYD121238UB | 12 | 7.0 – 13.2 | 0.80 | 3200 | 135.9 | 0.54 | 48 |
| HYD121238WB | 12 | 7.0 – 13.2 | 1.55 | 4200 | 178.4 | 0.94 | 54 |
| HYD241238HB | 24 | 14.0 – 26.4 | 0.48 | 2900 | 123.2 | 0.45 | 44 |
| HYD241238XB | 24 | 14.0 – 26.4 | 0.62 | 3200 | 135.9 | 0.54 | 48 |
| HYD241238UB | 24 | 14.0 – 26.4 | 0.85 | 4200 | 178.4 | 0.94 | 54 |
| HYD481238LB | 48 | 28.0 – 56.0 | 0.25 | 2900 | 123.2 | 0.45 | 44 |
| HYD481238MB | 48 | 28.0 – 56.0 | 0.30 | 3200 | 135.9 | 0.54 | 48 |
| HYD481238HB | 48 | 28.0 – 56.0 | 0.48 | 4200 | 178.4 | 0.94 | 54 |
