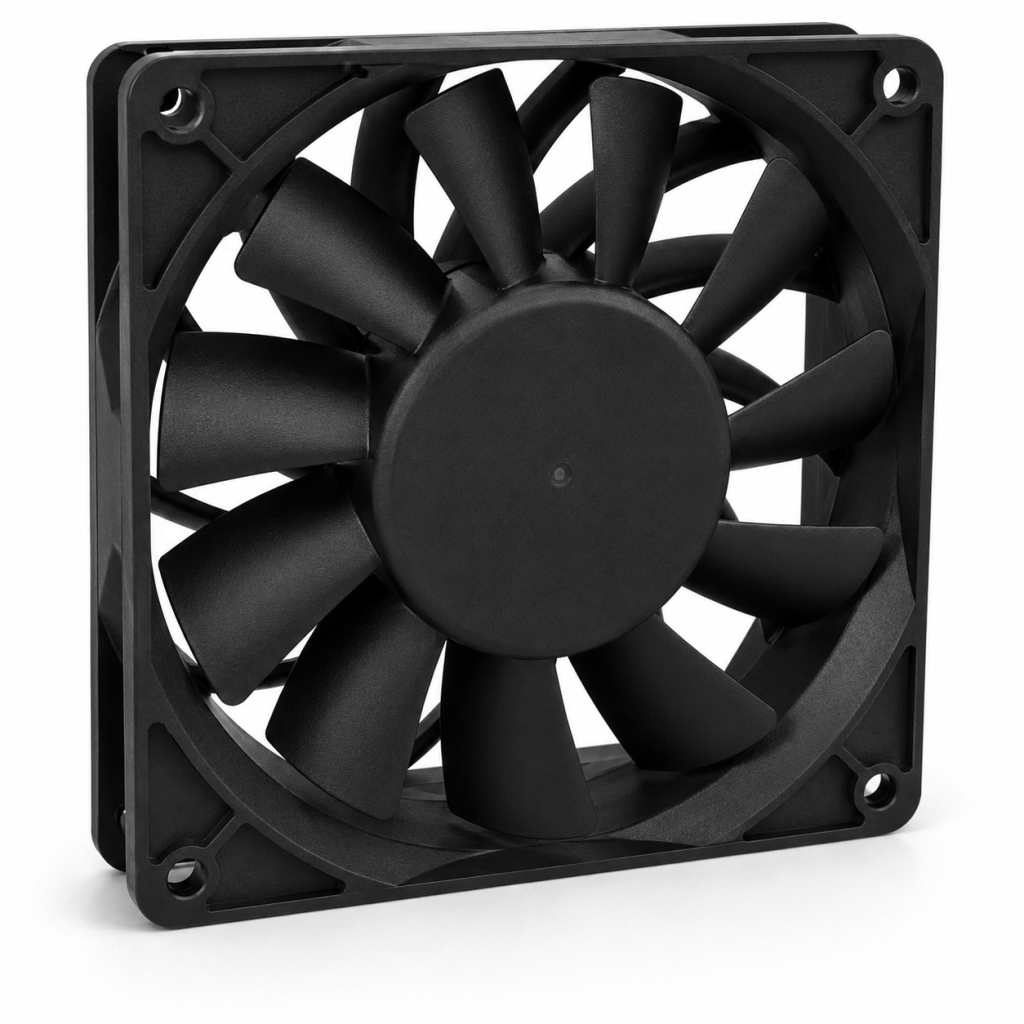

DC FANS
120x120x38P mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 315 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

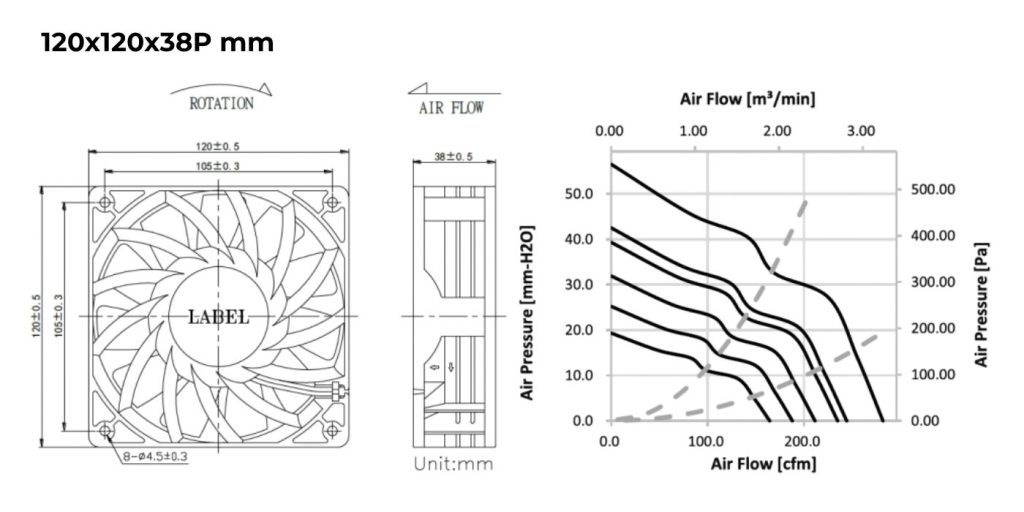

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYDP121238LB | 12 | 7.0 – 13.2 | 1.60 | 3500 | 164.3 | 0.76 | 52 |
| HYDP121238MB | 12 | 7.0 – 13.2 | 2.00 | 4000 | 187.8 | 0.99 | 55 |
| HYDP121238HB | 12 | 7.0 – 13.2 | 2.80 | 4500 | 211.3 | 1.26 | 57 |
| HYDP241238XB | 24 | 14.0 – 26.4 | 1.80 | 5000 | 234.8 | 1.55 | 60 |
| HYDP241238UB | 24 | 14.0 – 26.4 | 2.00 | 5200 | 244.2 | 1.67 | 61 |
| HYDP241238WB | 24 | 14.0 – 26.4 | 2.60 | 5500 | 258.2 | 1.87 | 62 |
| HYDP481238XB | 48 | 28.0 – 56.0 | 0.90 | 5000 | 234.8 | 1.55 | 60 |
| HYDP481238UB | 48 | 28.0 – 56.0 | 1.00 | 5200 | 244.2 | 1.67 | 61 |
| HYDP481238WB | 48 | 28.0 – 56.0 | 1.30 | 6000 | 281.8 | 2.22 | 64 |
