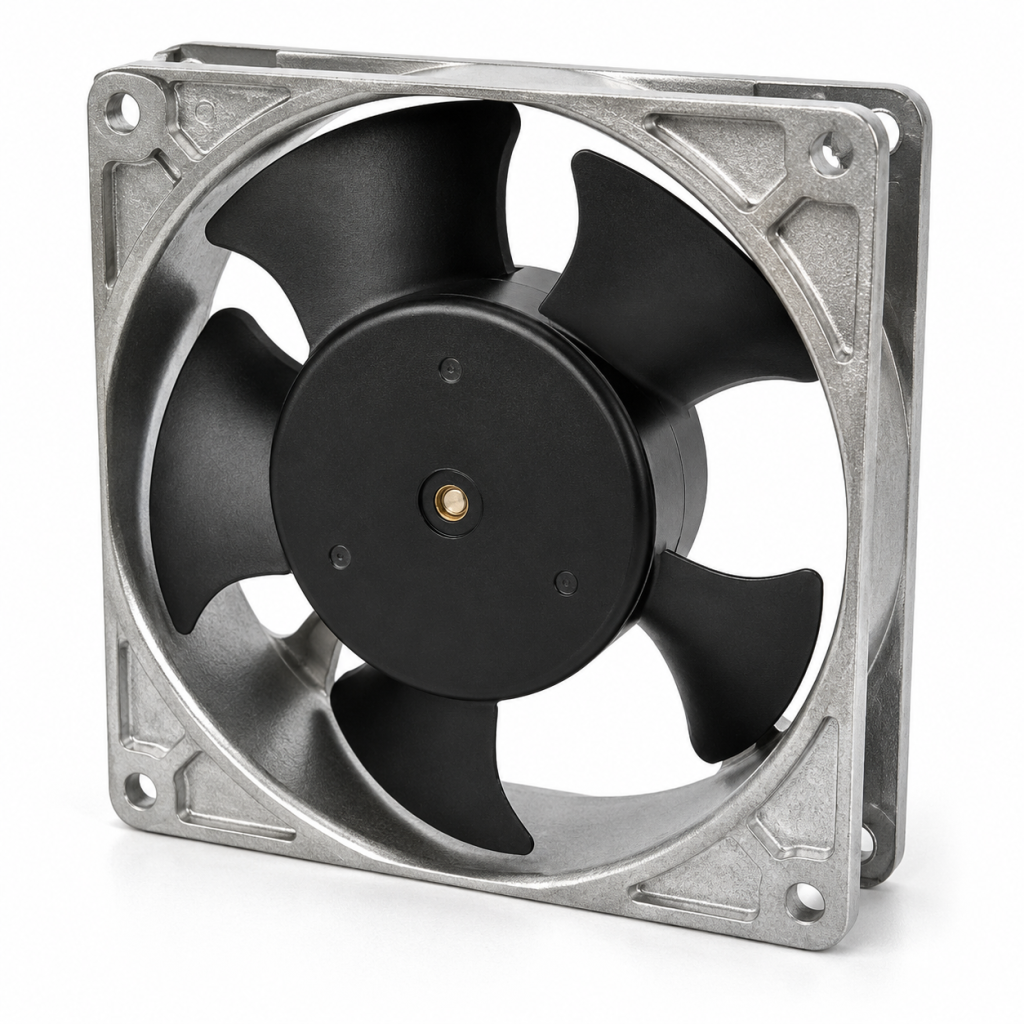

DC FANS
127x127x38.5 mm
PRODUCT SPECIFICATIONS
Frame: Aluminum
Impeller: 5-Blade, Glass-Fiber-Reinforced Plastic, UL94V-0
Ambient Temperature Range: -15°C ~ +65°C
Bearing: Sleeve Bearing / Ball Bearing
Motor Structure: Brushless DC Motor
Motor Protection: Auto Cutoff / Auto Restart
Termination: Lead Wire, 300 ± 10 mm
Weight: 420 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

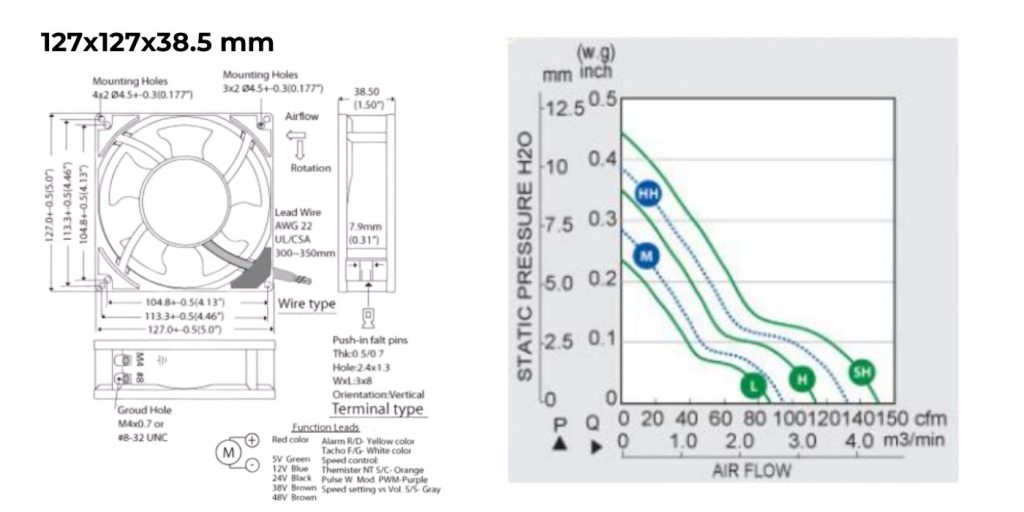

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYD051239LBL | 5 | 4.0 – 6.0 | 0.40 | 2 | 1700 | 75 | 0.21 | 28 |
| HYD051239MBL | 5 | 4.0 – 6.0 | 0.55 | 3 | 2000 | 90 | 0.27 | 32 |
| HYD051239HBL | 5 | 4.0 – 6.0 | 0.65 | 3.5 | 2300 | 100 | 0.31 | 36 |
| HYD051239XBL | 5 | 4.0 – 6.0 | 1.60 | 8 | 2600 | 113 | 0.35 | 40 |
| HYD051239UBL | 5 | 4.0 – 6.0 | 1.90 | 9.5 | 2900 | 128 | 0.39 | 43 |
| HYD121239LBL | 12 | 9.0 – 13.8 | 0.20 | 2.4 | 1900 | 86 | 0.23 | 30 |
| HYD121239MBL | 12 | 9.0 – 13.8 | 0.40 | 4.8 | 2200 | 96 | 0.29 | 34 |
| HYD121239HBL | 12 | 9.0 – 13.8 | 0.50 | 6 | 2500 | 110 | 0.33 | 38 |
| HYD121239XBL | 12 | 9.0 – 13.8 | 0.70 | 8.4 | 2800 | 122 | 0.37 | 42 |
| HYD121239UBL | 12 | 9.0 – 14.0 | 0.88 | 10.6 | 3100 | 138 | 0.40 | 45 |
| HYD241239LBL | 24 | 12.0 – 28.0 | 0.15 | 3.6 | 1900 | 86 | 0.23 | 30 |
| HYD241239MBL | 24 | 12.0 – 27.6 | 0.19 | 4.6 | 2200 | 96 | 0.29 | 34 |
| HYD241239HBL | 24 | 12.0 – 27.6 | 0.23 | 5.5 | 2600 | 115 | 0.35 | 40 |
| HYD241239XBL | 24 | 12.0 – 27.6 | 0.35 | 8.4 | 2900 | 128 | 0.39 | 43 |
| HYD241239UBL | 24 | 12.0 – 27.6 | 0.43 | 10.3 | 3200 | 145 | 0.43 | 46 |
| HYD481239LBL | 48 | 28.0 – 60.0 | 0.07 | 3.4 | 1900 | 86 | 0.23 | 30 |
| HYD481239MBL | 48 | 26.0 – 58.0 | 0.08 | 3.8 | 2200 | 96 | 0.29 | 34 |
| HYD481239HBL | 48 | 26.0 – 58.0 | 0.10 | 5 | 2600 | 115 | 0.35 | 40 |
| HYD481239XBL | 48 | 26.0 – 58.0 | 0.16 | 7.7 | 2900 | 128 | 0.39 | 43 |
| HYD481239UBL | 48 | 26.0 – 58.0 | 0.22 | 10.6 | 3200 | 145 | 0.43 | 46 |
