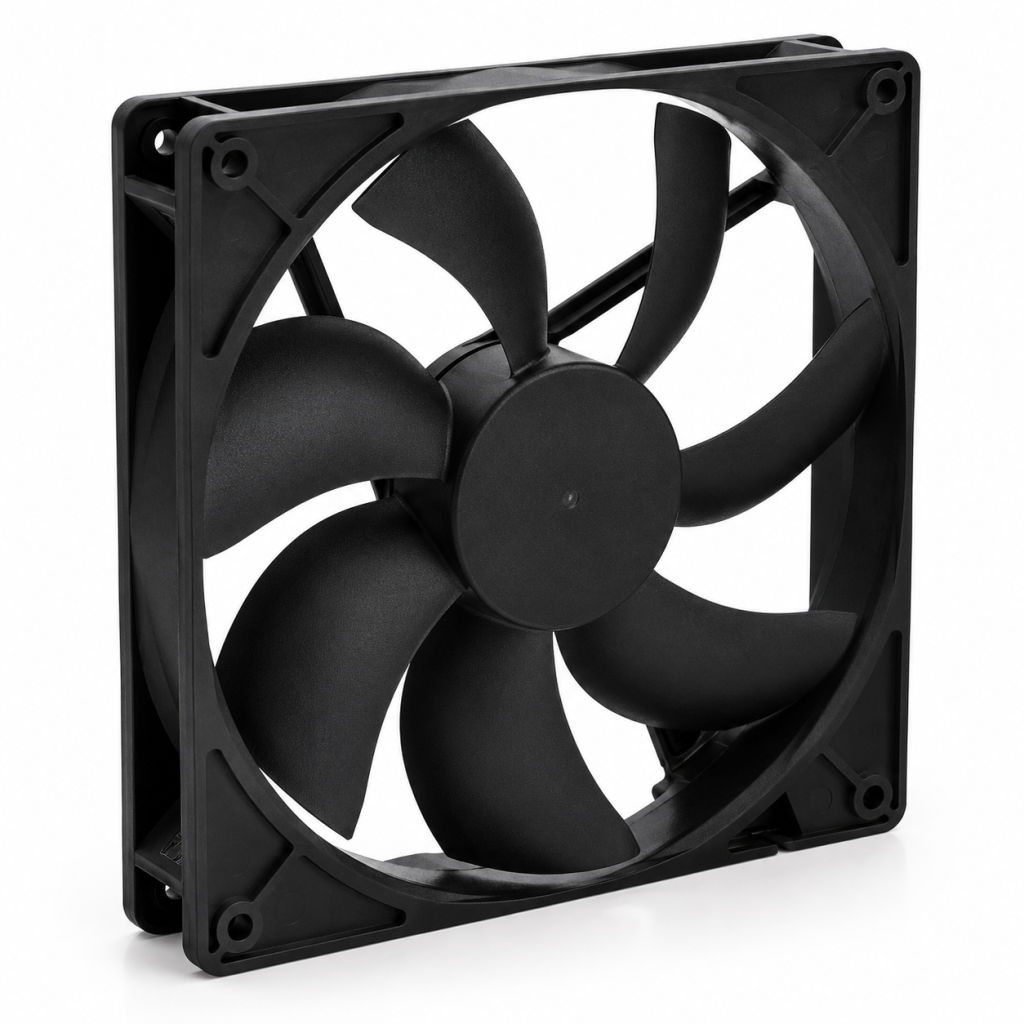

DC FANS

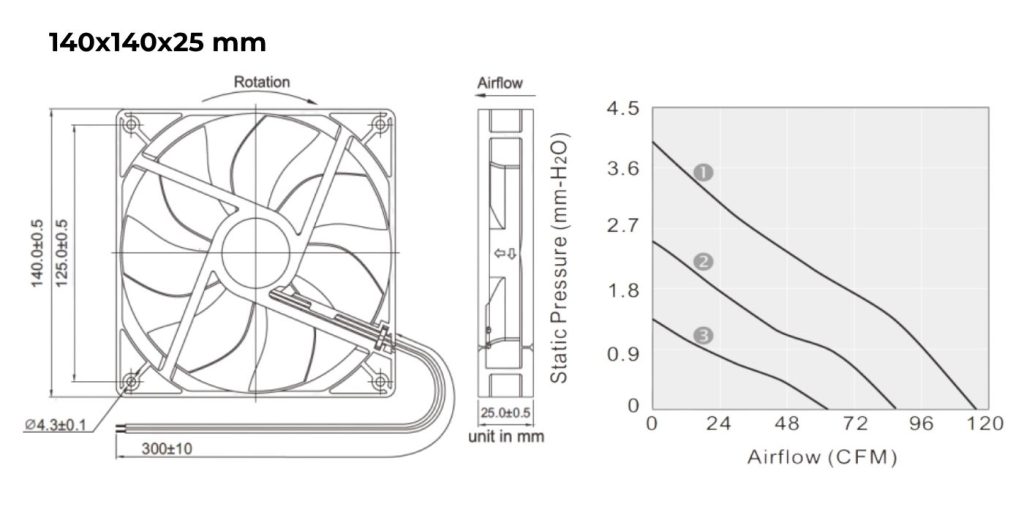

140x140x25 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Thermoplastic PBT UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Sleeve or Ball Bearing
Motor Structure: Brushless DC Motor
Termination: Lead wire 300 ± 10 mm
Weight: 182 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling
TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYD121425LBL | 12 | 7.0 – 13.2 | 0.07 | 0.84 | 1050 | 62.1 | 0.05 | 21.7 |
| HYD121425MBL | 12 | 7.0 – 13.2 | 0.17 | 2.04 | 1450 | 87.1 | 0.10 | 31.6 |
| HYD121425HBL | 12 | 7.0 – 13.2 | 0.37 | 4.44 | 1850 | 115.3 | 0.16 | 40.6 |
