DC FANS
15x14x04 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +60℃
Storage Temperature Range: -20℃ ~ +70℃
Bearing: Sleeve Bearing
Motor Structure: Brushless DC Motor
Weight: 1.27 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

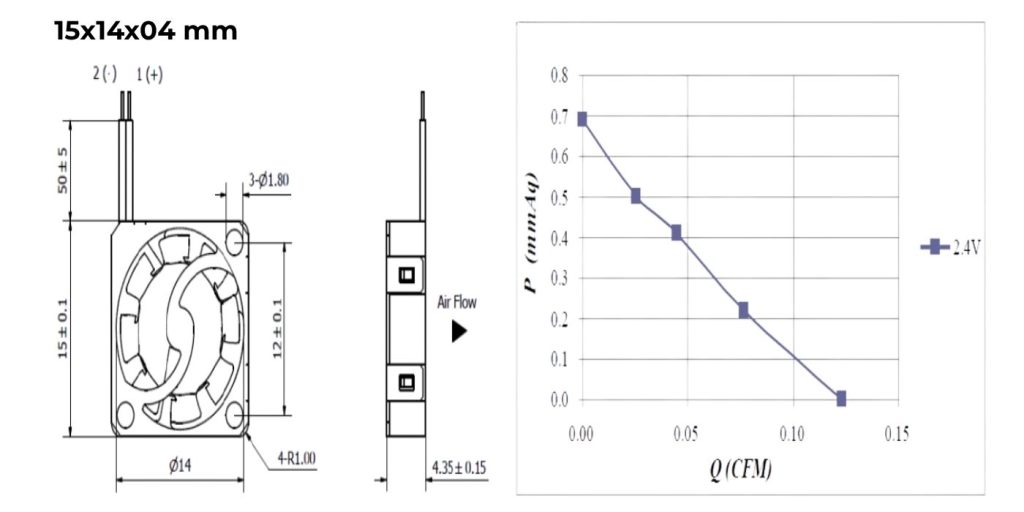

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD021504 | 2.4 | 2.4 – 3.3 | 0.011 | 7500 | 0.12 | 0.69 | 14.6 |
