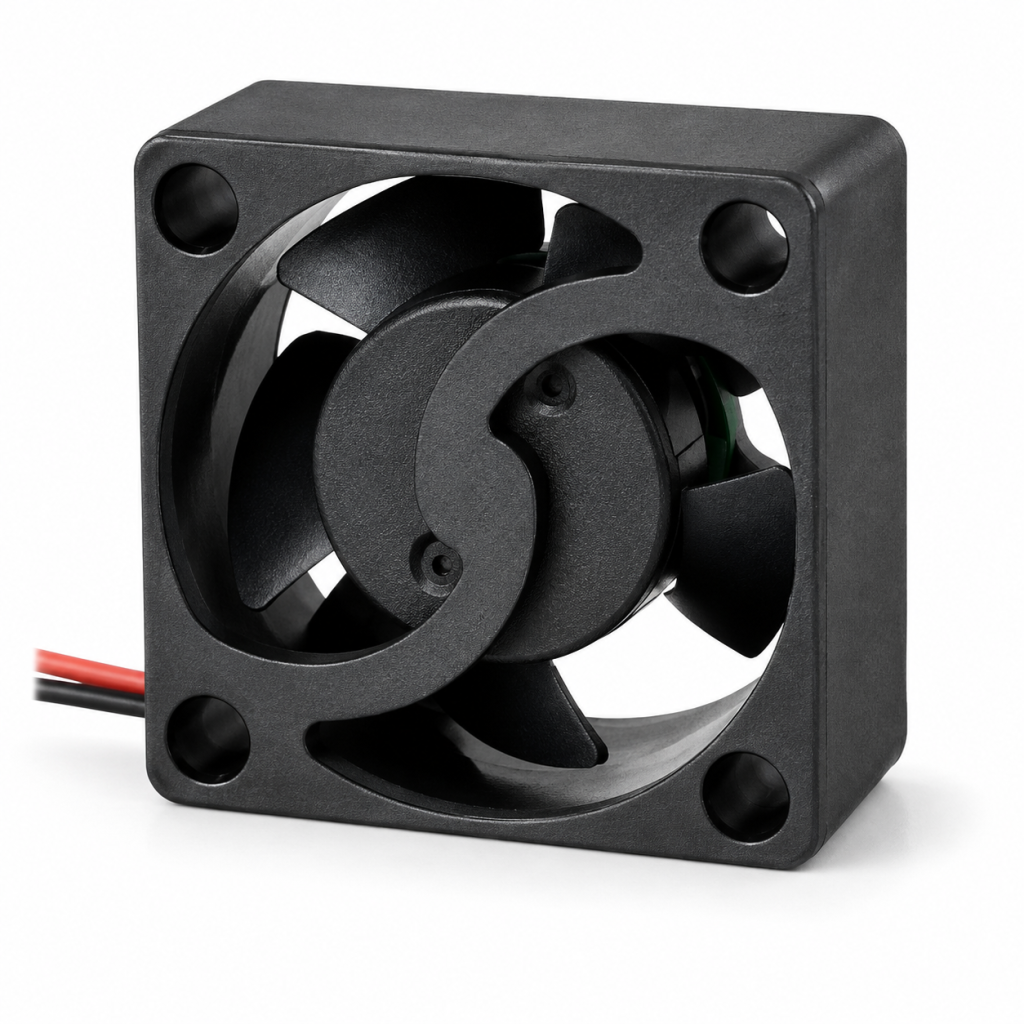

DC FANS

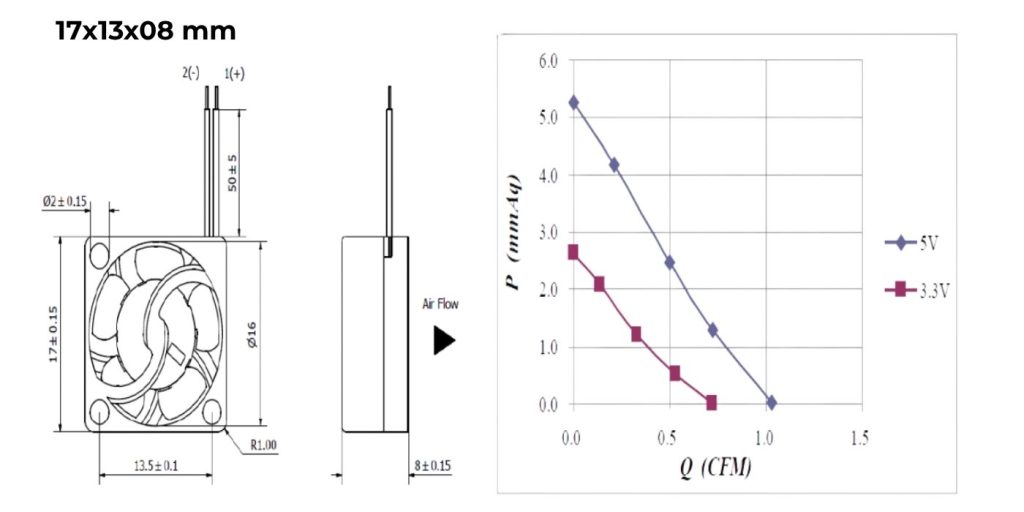

17x13x08 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +60℃
Storage Temperature Range: -20℃ ~ +70℃
Bearing: Sleeve Bearing
Motor Structure: Brushless DC Motor
Weight: 2.06 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling
TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD031708 | 3.3 | 2.8 – 3.6 | 0.05 | 11000 | 0.72 | 2.63 | 16.5 |
| HYD051708 | 5 | 4.5 – 5.5 | 0.07 | 16000 | 1.03 | 5.26 | 26.8 |
