DC FANS

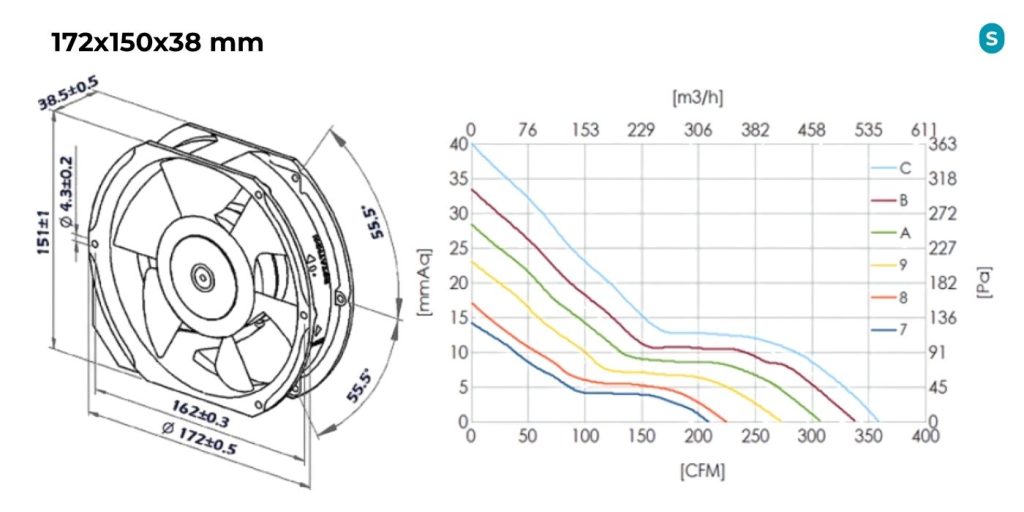

172x150x38 mm
PRODUCT SPECIFICATIONS
Frame: Aluminum
Impeller: Steel
Ambient Temperature Range: -10°C ~ +70°C
Bearing: Ball Bearing
Motor Structure: Permanent Magnet Brushless DC Motor
Protection Grade: IP54
Termination: Terminals or Lead Wire
Weight: 880 g / Packing: 12 pcs/carton
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling
TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Current (A) |
Speed (RPM) |
Air Flow (CFM) |
Pressure (mmAq) |
Noise (dB) |
Curve No. |
|---|---|---|---|---|---|---|---|
| HYDMx1738LB | 12/24/48 | 1.1/0.54/0.28 | 2800 | 210 | 14.5 | 52 | 7 |
| HYDMx1738MB | 12/24/48 | 1.59/0.78/0.37 | 3200 | 245 | 18.6 | 56 | 8 |
| HYDMx1738HB | 12/24/48 | 2.34/1.08/0.52 | 3600 | 275 | 23.1 | 60 | 9 |
| HYDMx1738XB | 12/24/48 | 3.33/1.38/0.68 | 4000 | 310 | 28.5 | 64 | A |
| HYDMx1738XB | 24/48 | 1.91/0.9 | 4400 | 340 | 33.4 | 68 | B |
| HYDMx1738XB | 24/48 | 2.34/1.13 | 4800 | 360 | 39.2 | 72 | C |
Note: x = 6 (12VDC), 7 (24VDC), 8 (48VDC).
Current values correspond to the voltage sequence shown.
