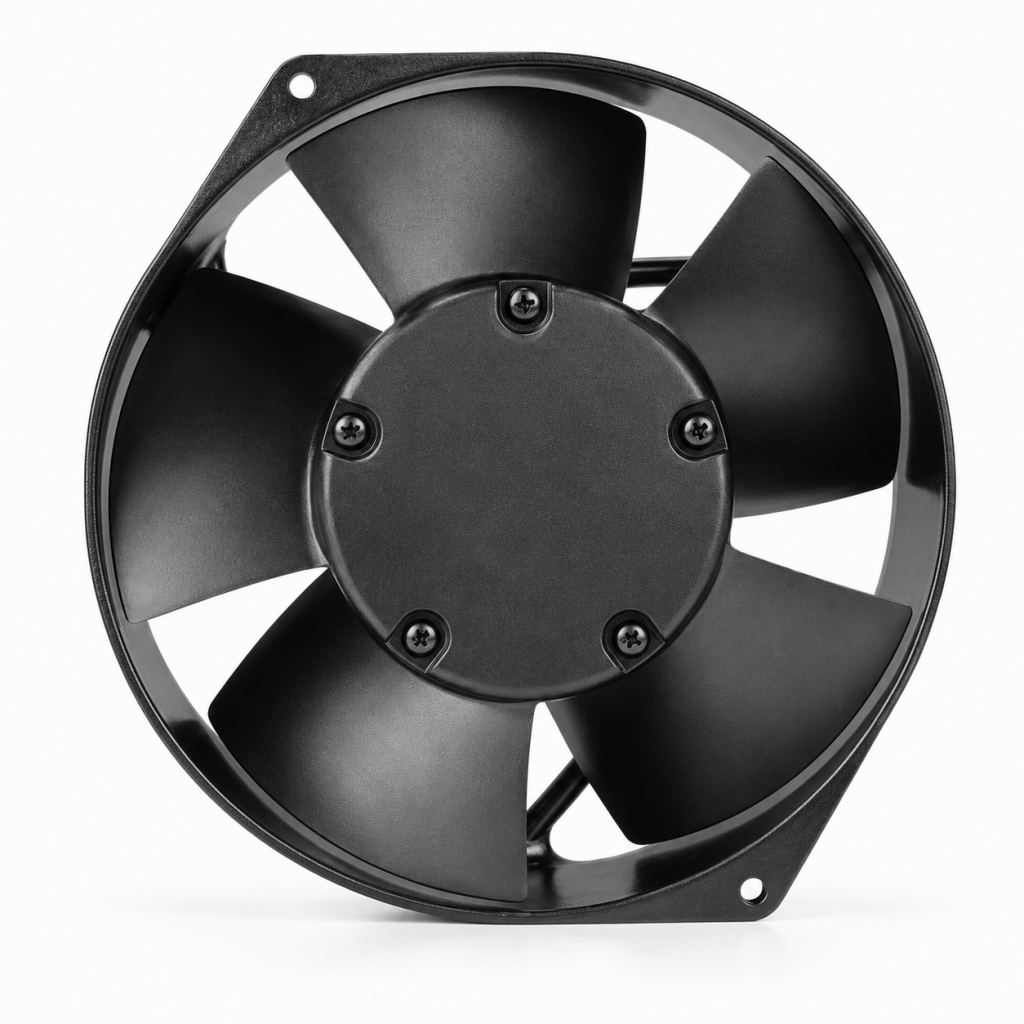

DC FANS

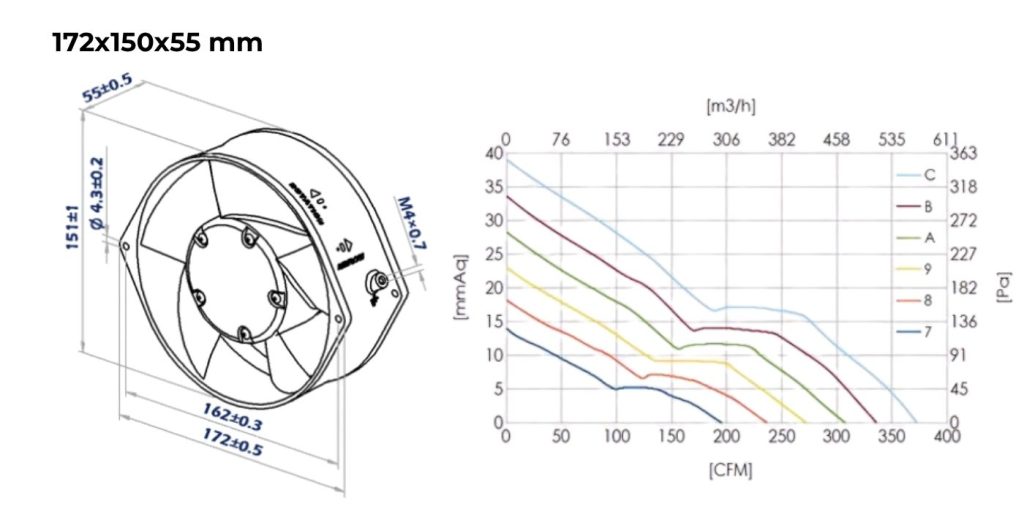

172x150x55 mm
PRODUCT SPECIFICATIONS
Frame: Aluminum
Impeller: Plastic
Ambient Temperature Range: -10°C ~ +70°C
Bearing: Ball Bearing
Motor Structure: Permanent Magnet Brushless DC Motor
Protection Grade: IP54
Termination: Terminals or Lead Wire
Weight: 1,010 g / Packing: 12 pcs/carton
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling
TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mmAq) |
Noise (dB) |
Curve No. |
|---|---|---|---|---|---|---|---|
| HYD-1755LB | 12/24/48 | 1.31/0.65/0.33 | 2800 | 205 | 13.9 | 53 | 7 |
| HYD-1755MB | 12/24/48 | 1.88/0.94/0.45 | 3200 | 240 | 18.2 | 57 | 8 |
| HYD-1755HB | 12/24/48 | 2.75/1.21/0.60 | 3600 | 275 | 22.9 | 61 | 9 |
| HYD-1755XB | 12/24/48 | 3.74/1.69/0.79 | 4000 | 310 | 28.3 | 65 | A |
| HYD-1755XB | 24/48 | 2.41/1.15 | 4400 | 340 | 33.6 | 69 | B |
| HYD-1755XB | 24/48 | 2.94/1.48 | 4800 | 375 | 39.7 | 73 | C |
