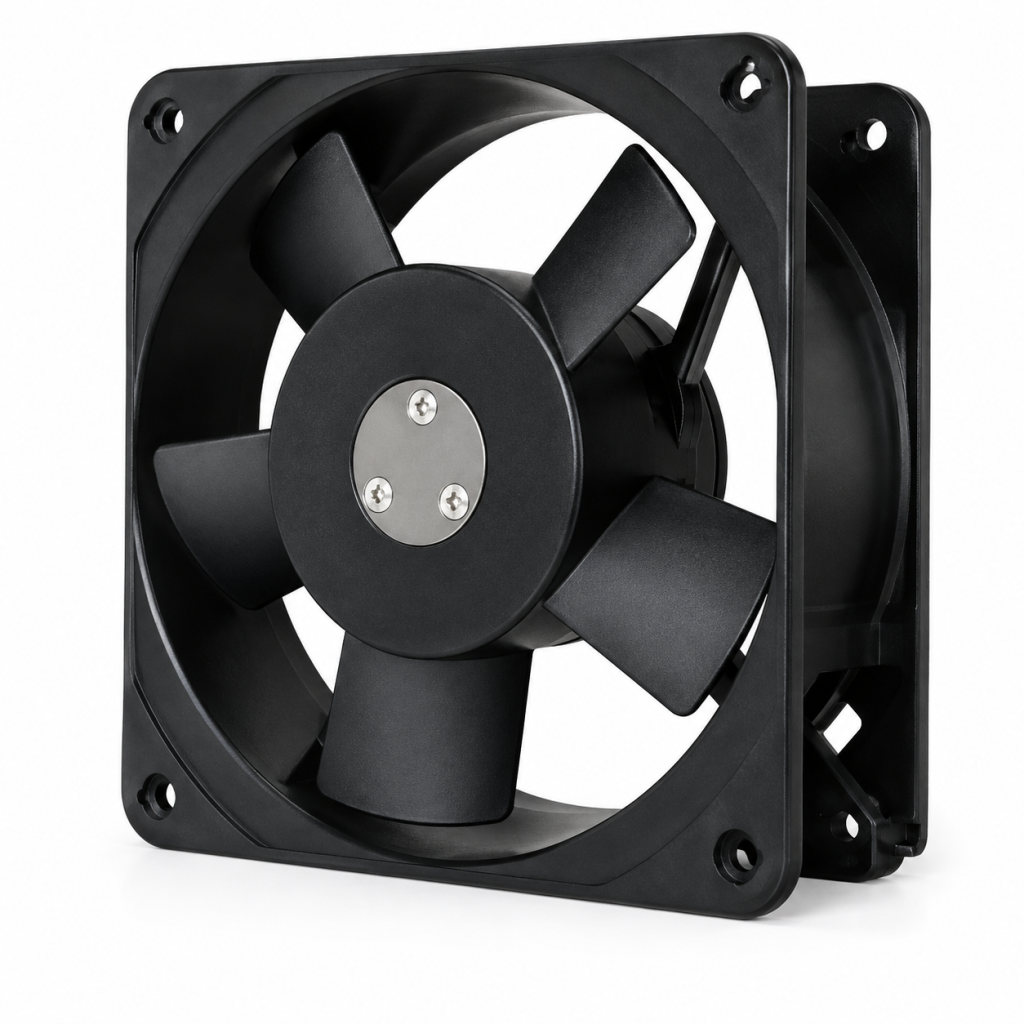

DC FANS

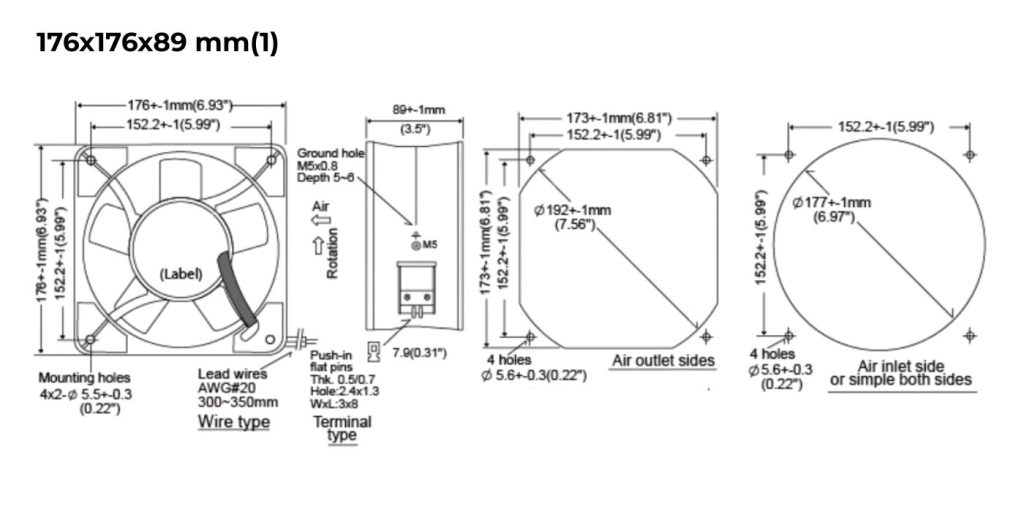

176x176x89 mm
PRODUCT SPECIFICATIONS
Frame: Aluminum
Impeller: Glass-Fiber-Reinforced Plastic, UL94V-0
Ambient Temperature Range: -10°C ~ +70°C
Bearing: Sleeve Bearing or Ball Bearing
Motor Structure: Brushless DC Motor
Termination: Lead Wire, 300 ± 10 mm
Weight: 1,500 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Operating Voltage (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYD121789LBL | 12 | 10.0 – 14.0 | 0.45 | 5.5 | 1600 | 230 | 0.23 | 39 |
| HYD121789MBL | 12 | 10.0 – 14.0 | 1.10 | 13.2 | 2100 | 290 | 0.47 | 46 |
| HYD121789HBL | 12 | 9.0 – 13.8 | 1.90 | 23 | 2600 | 350 | 0.55 | 53 |
| HYD121789XBL | 12 | 9.0 – 13.8 | 4.20 | 50.4 | 3100 | 410 | 0.75 | 60 |
| HYD121789UBL | 12 | 9.0 – 13.8 | 5.40 | 64.8 | 3600 | 485 | 0.89 | 65 |
| HYD241789LBL | 24 | 12.0 – 28.0 | 0.20 | 5 | 1600 | 230 | 0.23 | 39 |
| HYD241789MBL | 24 | 12.0 – 28.0 | 0.52 | 13 | 2100 | 290 | 0.47 | 46 |
| HYD241789HBL | 24 | 12.0 – 27.6 | 0.97 | 24 | 2600 | 350 | 0.55 | 53 |
| HYD241789XBL | 24 | 12.0 – 27.6 | 2.10 | 50.4 | 3150 | 420 | 0.76 | 61 |
| HYD241789UBL | 24 | 12.0 – 27.6 | 2.65 | 63.6 | 3800 | 485 | 0.89 | 65 |
| HYD481789LBL | 48 | 30.0 – 62.0 | 0.12 | 5.8 | 1600 | 230 | 0.23 | 39 |
| HYD481789MBL | 48 | 28.0 – 58.0 | 0.30 | 14.5 | 2100 | 290 | 0.47 | 46 |
| HYD481789HBL | 48 | 24.0 – 53.0 | 0.48 | 23.5 | 2600 | 350 | 0.55 | 53 |
| HYD481789XBL | 48 | 24.0 – 53.0 | 1.03 | 49.4 | 3150 | 420 | 0.76 | 61 |
| HYD481789UBL | 48 | 24.0 – 53.0 | 1.30 | 62.4 | 3600 | 485 | 0.89 | 65 |
