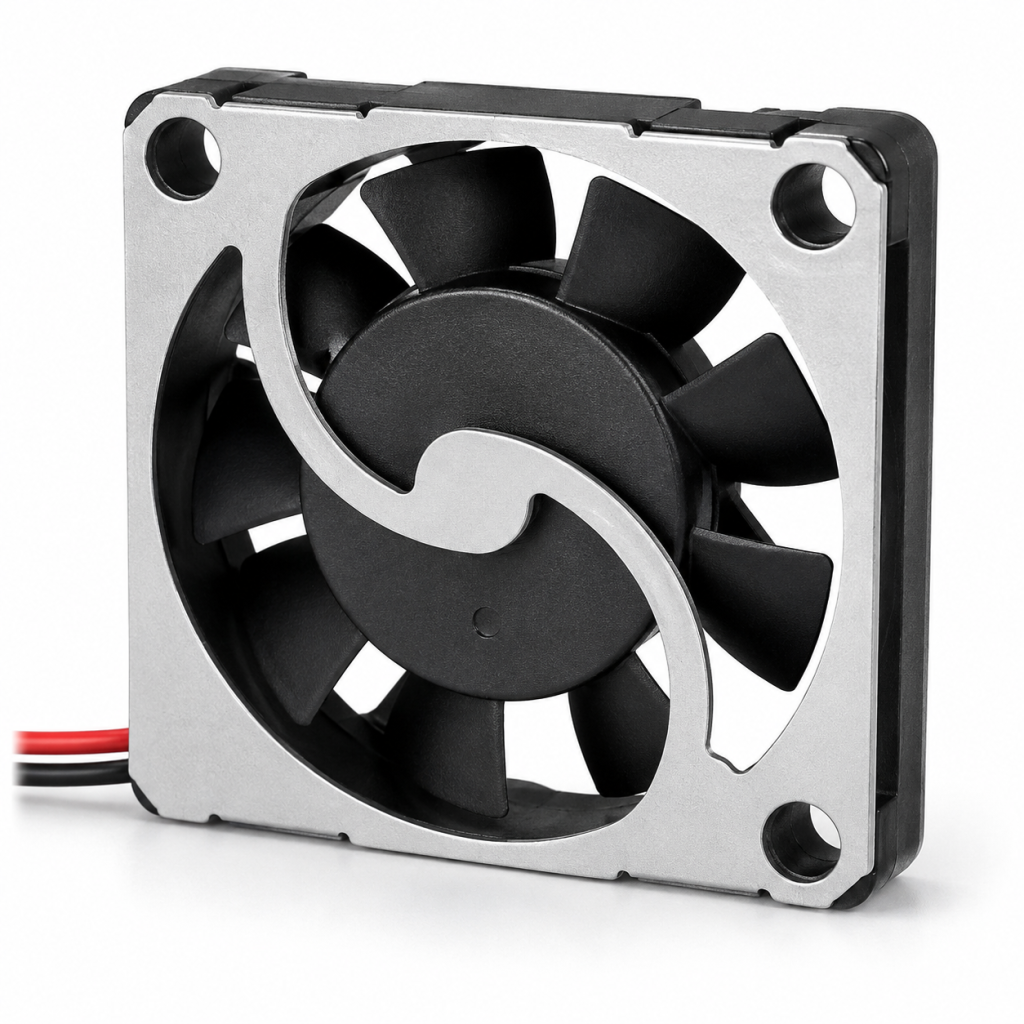

DC FANS

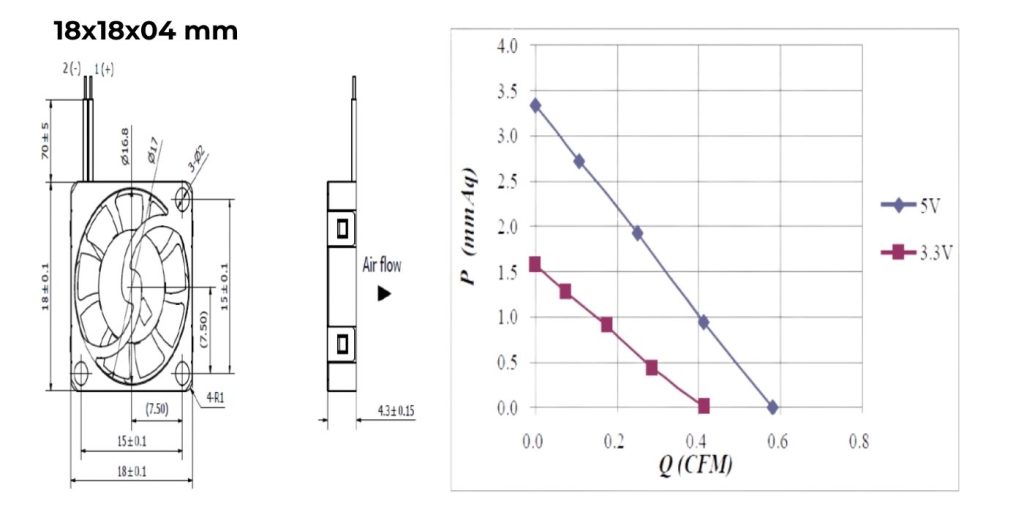

18x18x04 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +60℃
Storage Temperature Range: -20℃ ~ +70℃
Bearing: Sleeve Bearing
Motor Structure: Brushless DC Motor
Weight: 1.63 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling
TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD031804 | 3.3 | 2.8 – 3.6 | 0.041 | 9000 | 0.41 | 1.57 | 15.9 |
| HYD051804 | 5 | 4.5 – 5.5 | 0.058 | 13000 | 0.58 | 3.34 | 24.9 |
