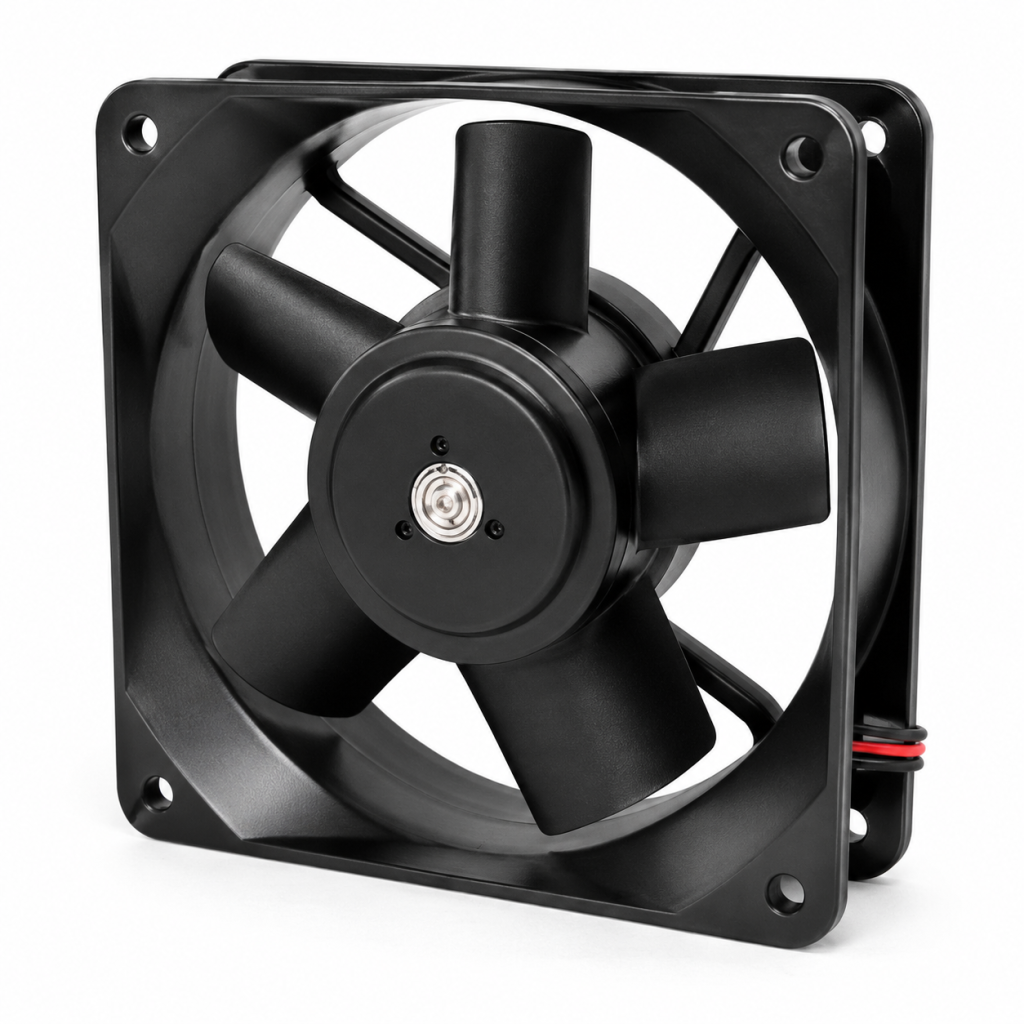

DC FANS
180x180x65 mm
PRODUCT SPECIFICATIONS
Frame: Aluminum
Impeller: All Metal Fan Blades, High-Performance Metal Impeller
Ambient Temperature Range: -20°C ~ +65°C
Bearing: Ball Bearing
Motor Structure: Permanent Magnet Brushless DC Motor
Termination: Lead Wire 300 mm
Weight: 1,400 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

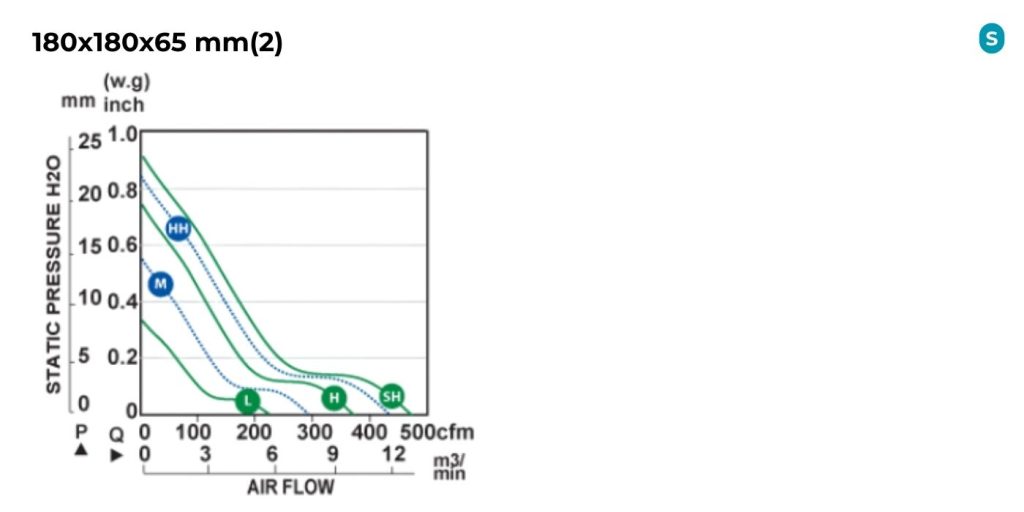

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Air Flow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYDM121865LBL | 12 | 10.0 – 14.0 | 0.45 | 5.5 | 1600 | 220 | 0.38 | 38 |
| HYDM121865MBL | 12 | 10.0 – 14.0 | 1.1 | 13.2 | 2200 | 295 | 0.55 | 49 |
| HYDM121865HBL | 12 | 9.0 – 13.8 | 1.9 | 23 | 2800 | 360 | 0.72 | 58 |
| HYDM121865XBL | 12 | 9.0 – 13.8 | 4.2 | 50.4 | 3400 | 440 | 0.82 | 62 |
| HYDM121865UBL | 12 | 9.0 – 13.8 | 5.4 | 64.8 | 3700 | 475 | 0.87 | 64 |
| HYDM241865LBL | 24 | 15.0 – 28.0 | 0.2 | 5 | 1600 | 220 | 0.38 | 38 |
| HYDM241865MBL | 24 | 12.0 – 28.0 | 0.52 | 13 | 2200 | 295 | 0.55 | 49 |
| HYDM241865HBL | 24 | 12.0 – 27.6 | 0.97 | 24 | 2800 | 360 | 0.72 | 58 |
| HYDM241865XBL | 24 | 12.0 – 27.6 | 2.1 | 50.4 | 3500 | 445 | 0.82 | 62 |
| HYDM241865UBL | 24 | 12.0 – 27.6 | 2.65 | 63.6 | 3800 | 480 | 0.88 | 66 |
| HYDM481865LBL | 48 | 30.0 – 60.0 | 0.12 | 5.8 | 1600 | 220 | 0.38 | 38 |
| HYDM481865MBL | 48 | 28.0 – 58.0 | 0.3 | 14.5 | 2200 | 295 | 0.55 | 49 |
| HYDM481865HBL | 48 | 24.0 – 55.0 | 0.48 | 23.5 | 2800 | 360 | 0.72 | 58 |
| HYDM481865XBL | 48 | 22.0 – 53.0 | 1.03 | 49.4 | 3500 | 445 | 0.82 | 62 |
| HYDM481865UBL | 48 | 22.0 – 53.0 | 1.3 | 62.4 | 3800 | 480 | 0.88 | 66 |
