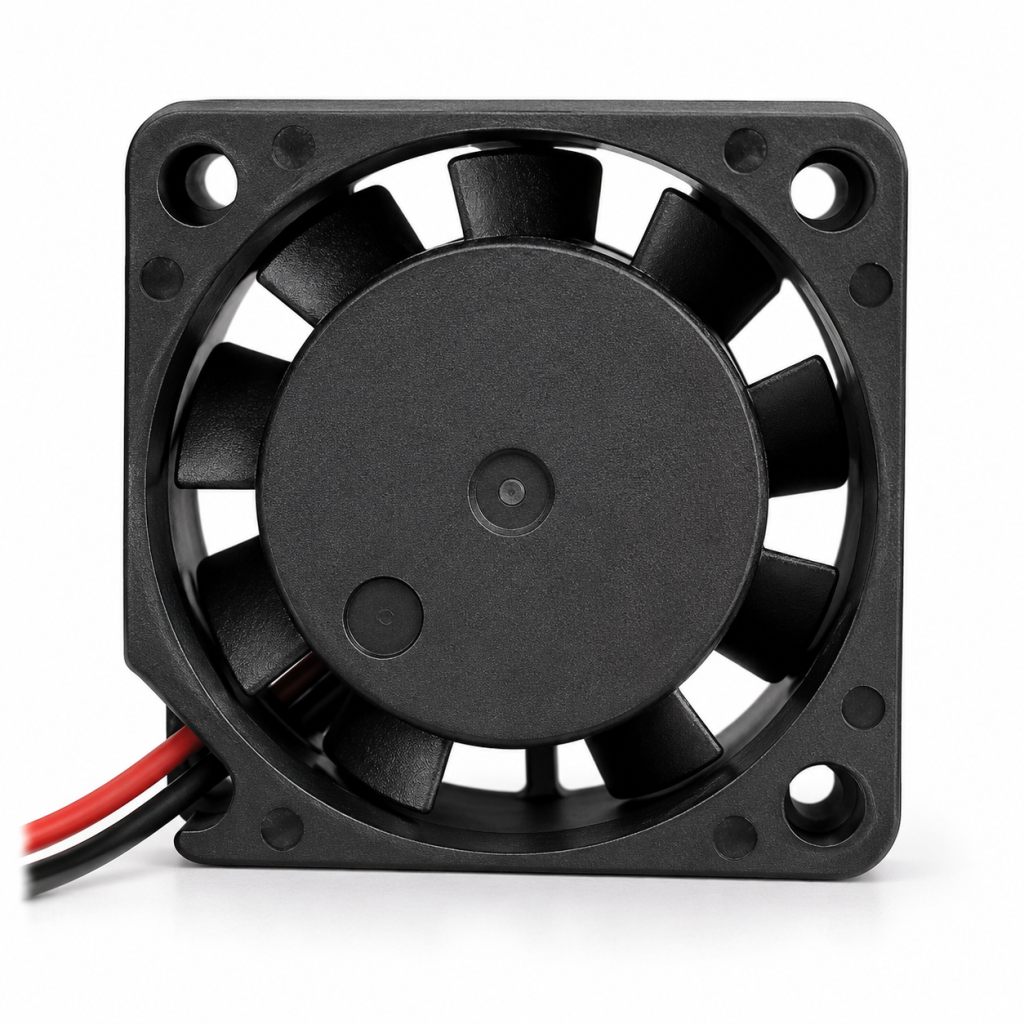

DC FANS
20x20x06 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: FMB Bearing
Motor Structure: Brushless DC Motor
Weight: 4 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

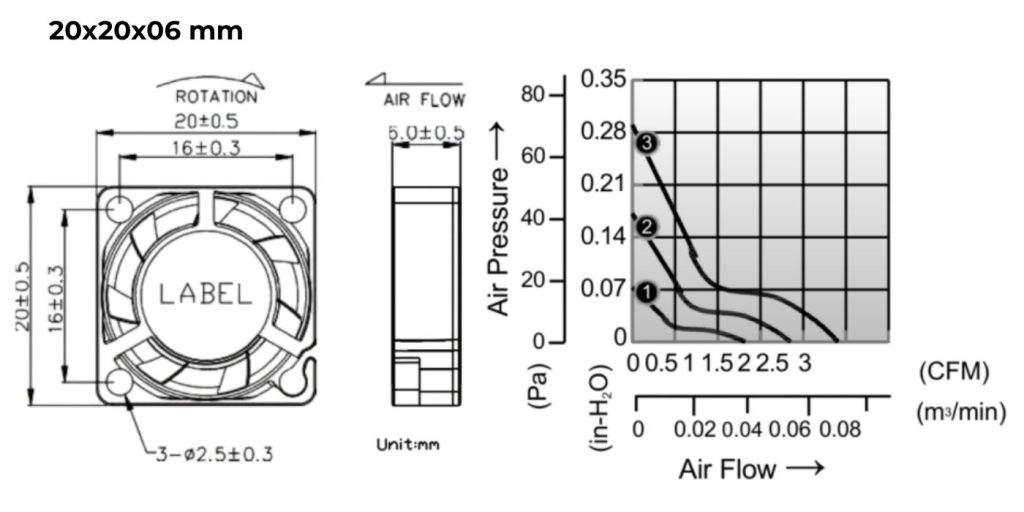

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD052006LF | 5 | 4.5 – 5.5 | 0.02 | 7000 | 0.35 | 0.03 | 10 |
| HYD052006MF | 5 | 4.5 – 5.5 | 0.05 | 10000 | 0.71 | 0.07 | 16 |
| HYD052006HF | 5 | 4.5 – 5.5 | 0.10 | 13000 | 1.06 | 0.13 | 16 |
