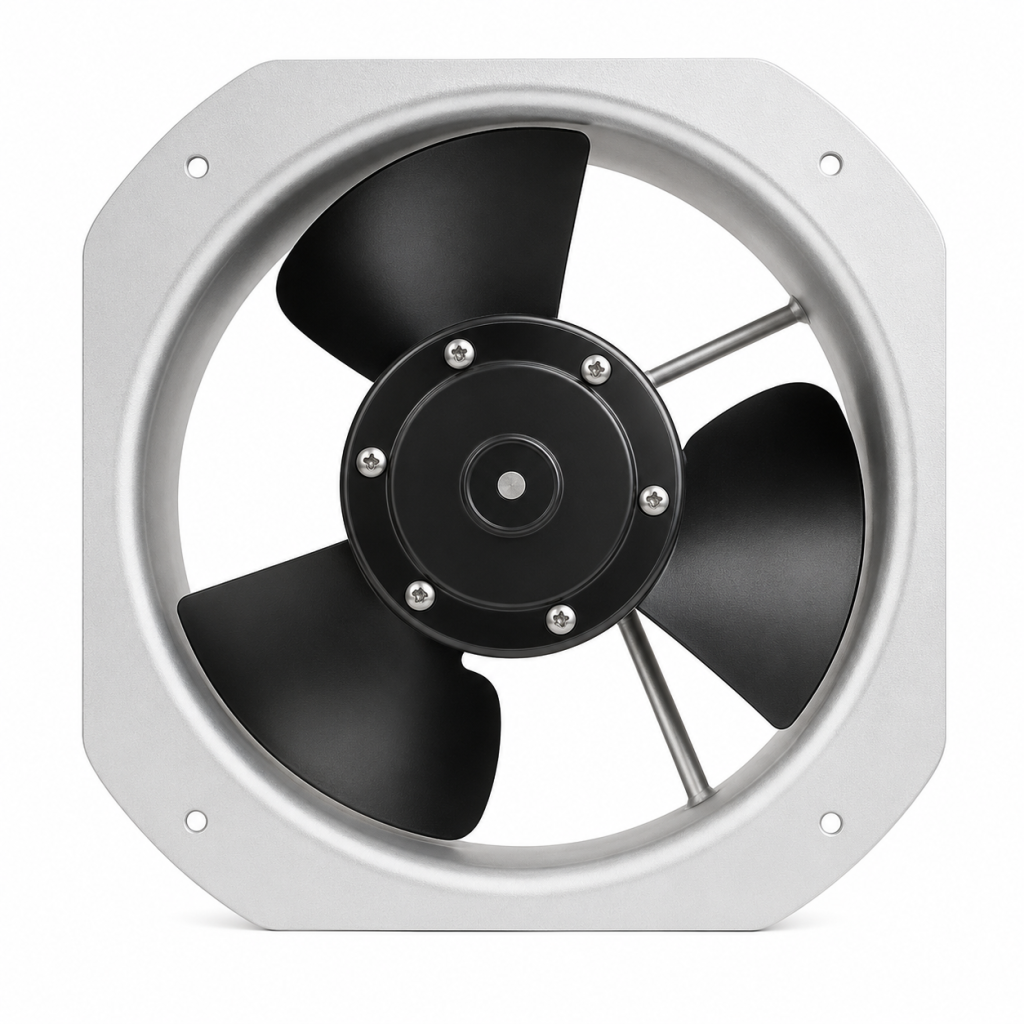

DC FANS
225x225x80 mm
(9x9x3.1 in)
PRODUCT SPECIFICATIONS
Frame: Die-Cast Aluminum
Impeller: Steel
Ambient Temperature Range: -10°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Motor Structure: Permanent Magnet Brushless DC Motor
Motor Protection: Locked Rotor Protection / Reverse Polarity Protection
Insulation Class: Class B Protection Grade: IP54
Optional Functions: RD / FG / PWM / 0–10 VDC Control
Weight: 2,530 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

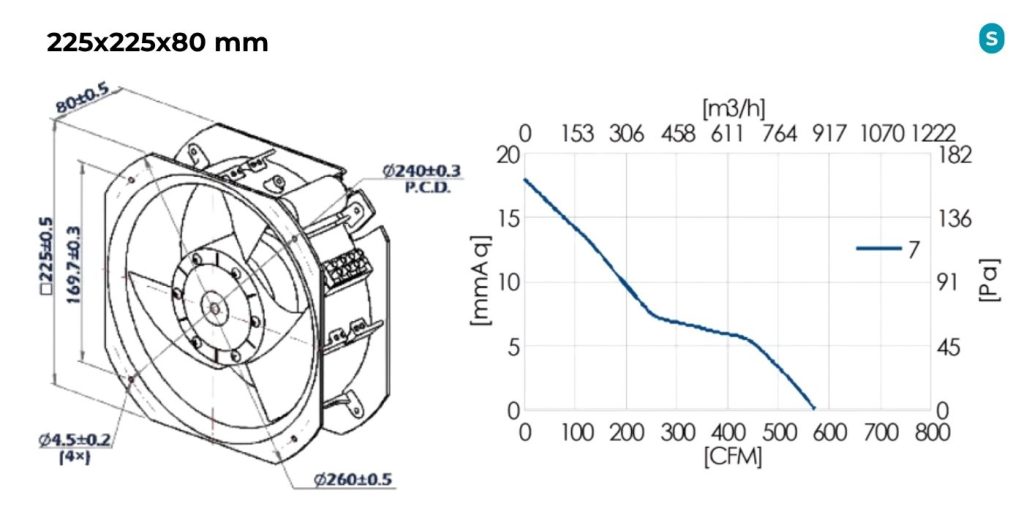

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Current (A) |
Speed (RPM) |
Air Flow (CFM) |
Pressure (mmAq) |
Noise (dB) |
|---|---|---|---|---|---|---|
| HYDM62280HB | 24 | 2.2 | 2800 | 580 | 18 | 67 |
| HYDM82280HB | 48 | 1.1 | 2800 | 580 | 18 | 67 |
