DC FANS
25x25x10 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: FMB / Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 8 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

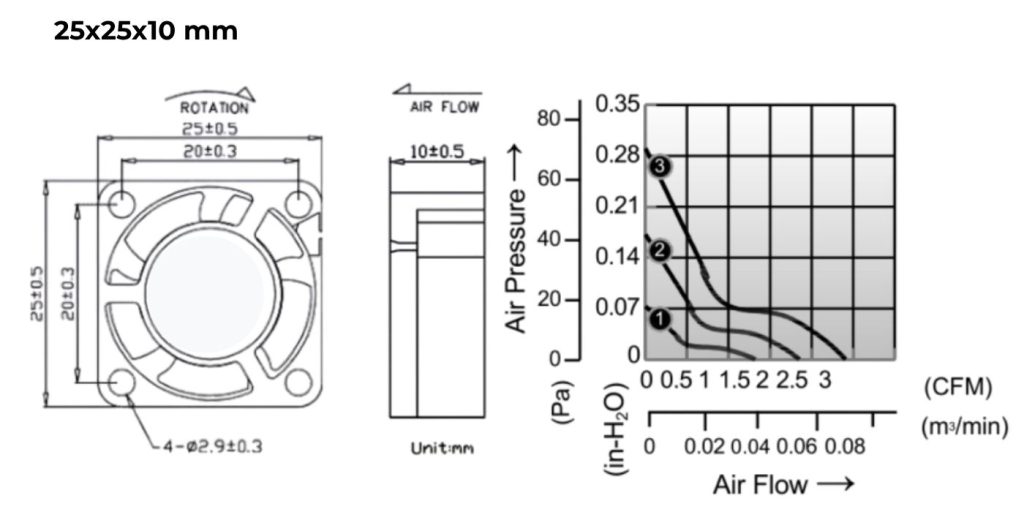

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD052510JB | 5 | 4.5 – 5.5 | 0.05 | 4000 | 0.52 | 0.03 | 10 |
| HYD052510LB | 5 | 4.5 – 5.5 | 0.08 | 7000 | 1.32 | 0.07 | 20 |
| HYD052510MB | 5 | 4.5 – 5.5 | 0.13 | 10000 | 1.85 | 0.17 | 24 |
| HYD052510HB | 5 | 4.5 – 5.5 | 0.22 | 13000 | 2.41 | 0.29 | 28 |
| HYD122510LB | 12 | 7.0 – 13.2 | 0.07 | 7000 | 1.32 | 0.07 | 20 |
| HYD122510MB | 12 | 7.0 – 13.2 | 0.08 | 10000 | 1.85 | 0.17 | 24 |
| HYD122510HB | 12 | 7.0 – 13.2 | 0.12 | 13000 | 2.41 | 0.29 | 28 |
| HYD242510HB | 24 | 14.0 – 26.4 | 0.07 | 13000 | 2.41 | 0.29 | 28 |
