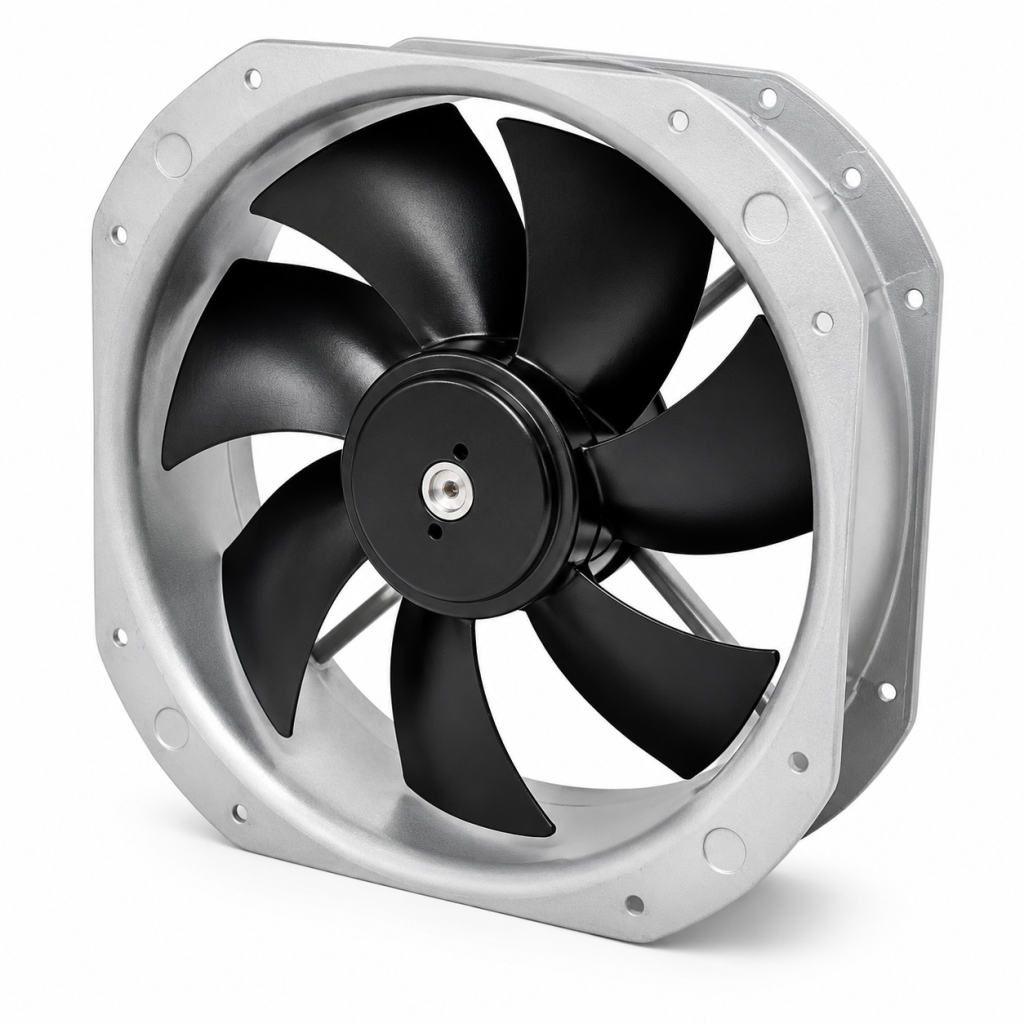

DC FANS
280x280x88.9 mm
PRODUCT SPECIFICATIONS
Frame: Aluminum
Impeller: Metal Blades
Ambient Temperature Range: -20°C ~ +65°C
Bearing: Ball Bearing
Motor Structure: Microprocessor-Controlled Brushless DC Motor
Motor Protection: Auto Cutoff / Auto Restart
Termination: Lead Wire, 290 mm
Weight: 2,950 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

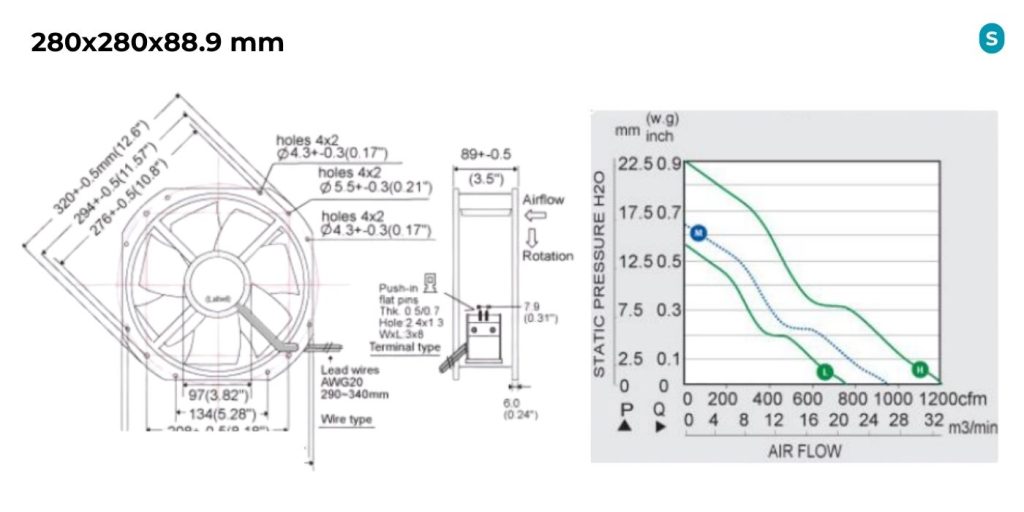

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Air Flow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYDM122889LBL | 12 | 9.0 – 13.5 | 2.2 | 26.4 | 1800 | 780 | 0.51 | 48 |
| HYDM122889MBL | 12 | 9.0 – 13.5 | 4.9 | 58.8 | 2200 | 950 | 0.65 | 56 |
| HYDM122889HBL | 12 | 9.0 – 13.5 | 8.7 | 104.4 | 2500 | 1150 | 0.9 | 70 |
| HYDM242889LBL | 24 | 18.0 – 27.6 | 1.1 | 26.4 | 1800 | 780 | 0.55 | 48 |
| HYDM242889MBL | 24 | 18.0 – 27.6 | 2.45 | 58.8 | 2200 | 950 | 0.65 | 56 |
| HYDM242889HBL | 24 | 18.0 – 27.6 | 4.35 | 104.4 | 2550 | 1200 | 0.9 | 72 |
| HYDM482889LBL | 48 | 24.0 – 60.0 | 0.55 | 26.4 | 1800 | 780 | 0.51 | 48 |
| HYDM482889MBL | 48 | 24.0 – 58.0 | 1.2 | 57.6 | 2200 | 950 | 0.65 | 56 |
| HYDM482889HBL | 48 | 24.0 – 55.0 | 2.2 | 105.6 | 2550 | 1200 | 0.9 | 72 |
