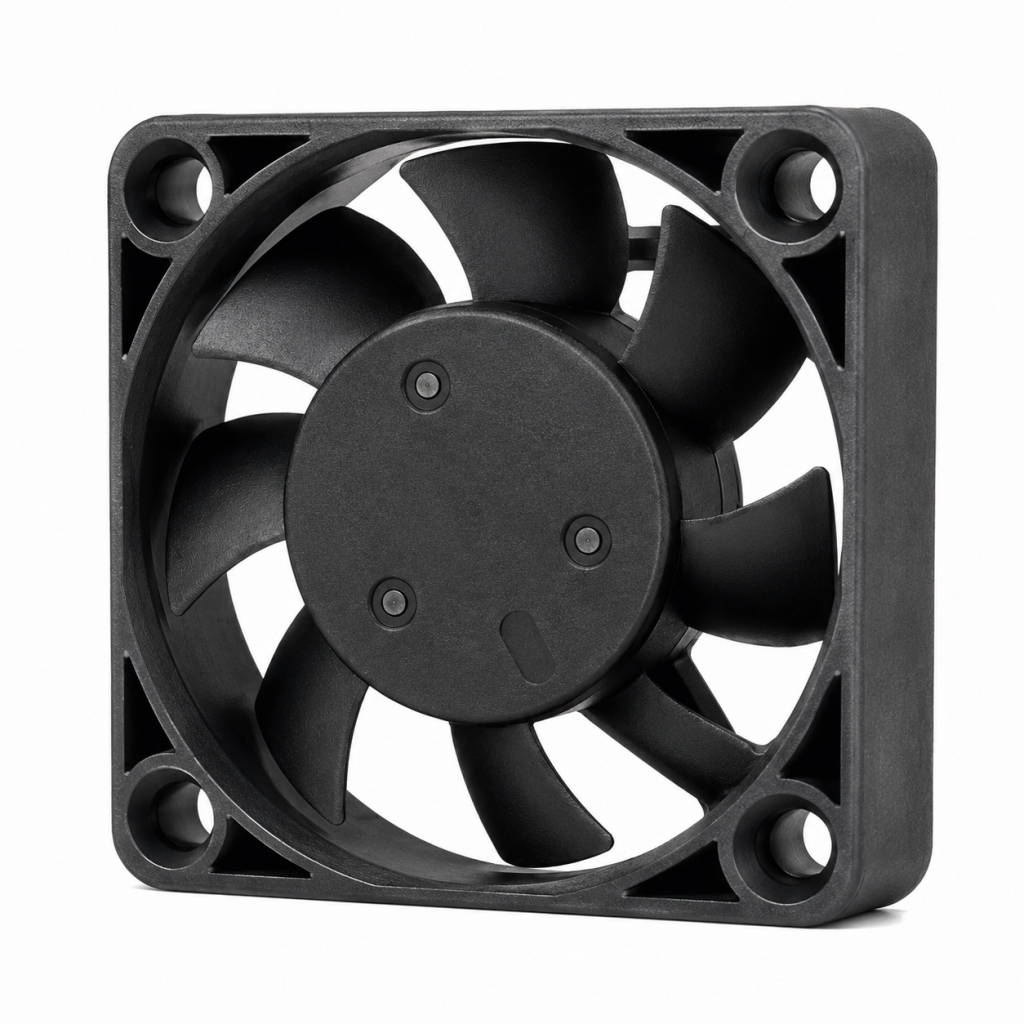

DC FANS
30x30x10 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: FMB / Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 10 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

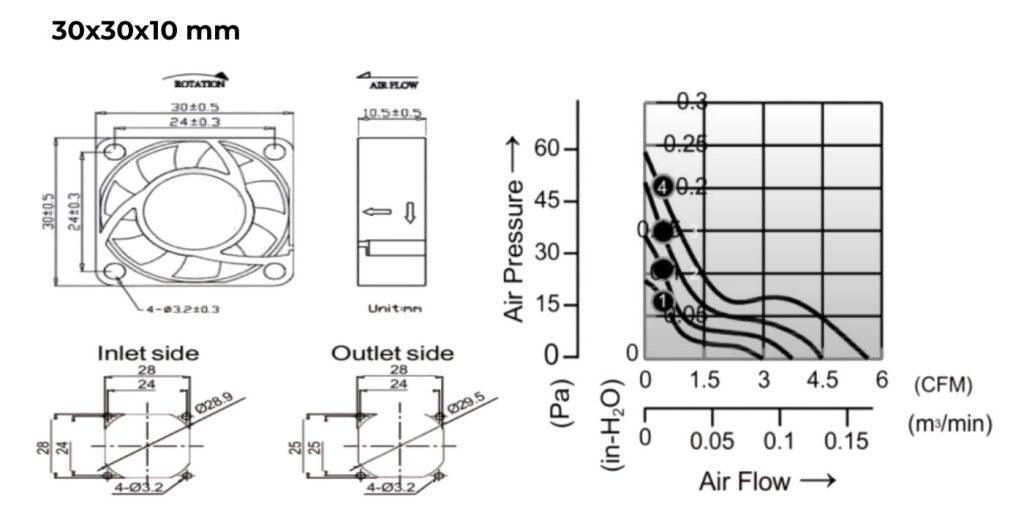

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD053010LB | 5 | 4.5 – 5.5 | 0.09 | 6000 | 2.99 | 0.09 | 17 |
| HYD053010MB | 5 | 4.5 – 5.5 | 0.12 | 7500 | 3.73 | 0.14 | 24 |
| HYD053010HB | 5 | 4.5 – 5.5 | 0.24 | 9000 | 4.48 | 0.21 | 29 |
| HYD053010XB | 5 | 4.5 – 5.5 | 0.27 | 11000 | 5.56 | 0.24 | 31 |
| HYD123010LB | 12 | 7.0 – 13.2 | 0.03 | 6000 | 2.99 | 0.09 | 17 |
| HYD123010MB | 12 | 7.0 – 13.2 | 0.05 | 7500 | 3.73 | 0.14 | 24 |
| HYD123010HB | 12 | 7.0 – 13.2 | 0.07 | 9000 | 4.48 | 0.21 | 29 |
| HYD123010XB | 12 | 7.0 – 13.2 | 0.09 | 11000 | 5.65 | 0.24 | 31 |
