DC FANS
36x36x28 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Thermoplastic PBT UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Sleeve or Ball Bearing
Motor Structure: Brushless DC Motor
Termination: Lead wire 300± 10mm
Weight: 46.5 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

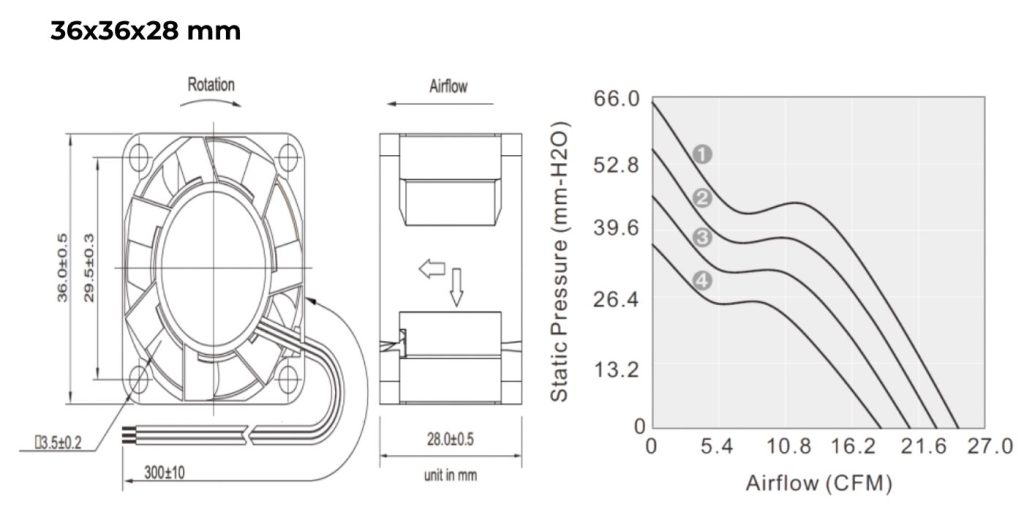

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYD123628MBL | 12 | 7 – 13.2 | 0.5 | 6 | 17000 | 18.74 | 1.44 | 56 |
| HYD123628HBL | 12 | 7 – 13.2 | 0.65 | 7.8 | 19000 | 21.05 | 1.83 | 59.5 |
| HYD123628UBL | 12 | 7 – 13.2 | 0.85 | 10.2 | 21000 | 23.22 | 2.19 | 61 |
| HYD123628VBL | 12 | 7 – 13.2 | 1 | 12 | 23000 | 24.99 | 2.56 | 63 |
