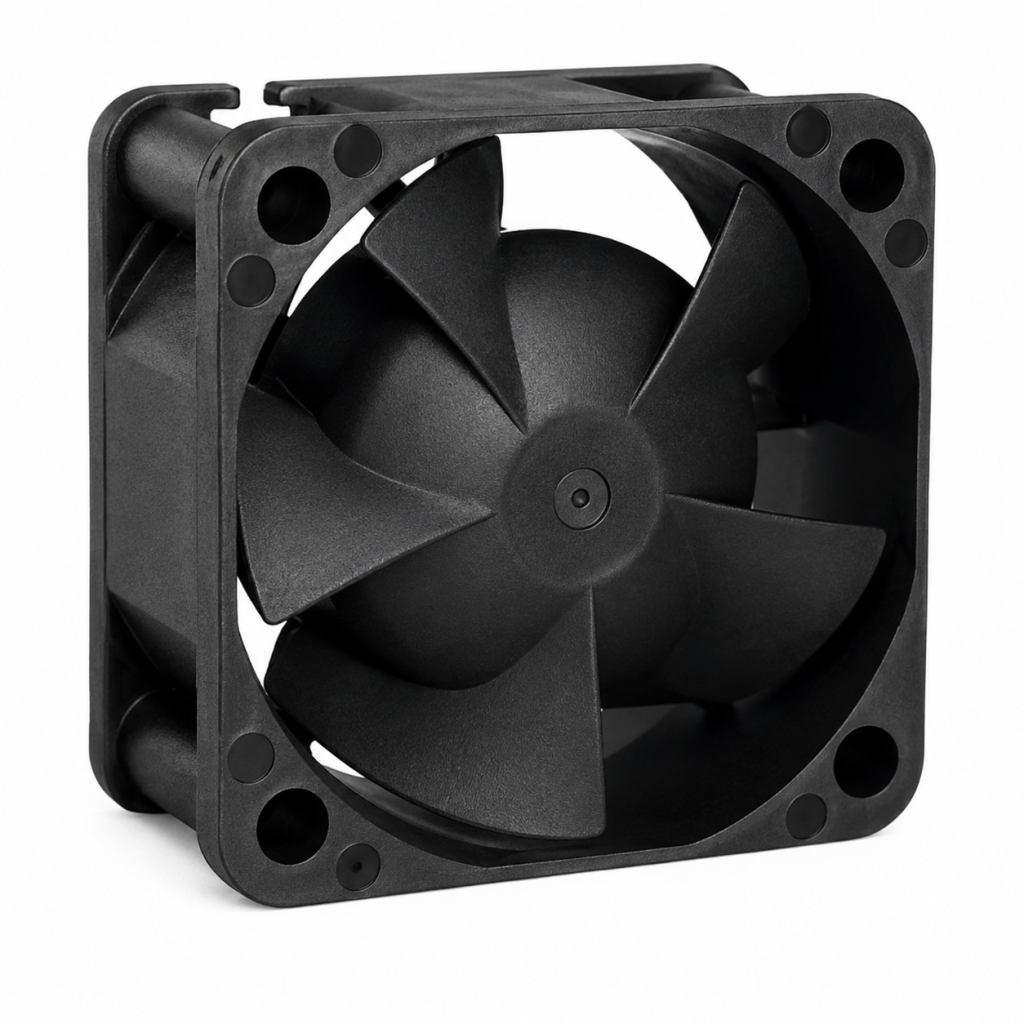

DC FANS
38x38x20 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 31 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

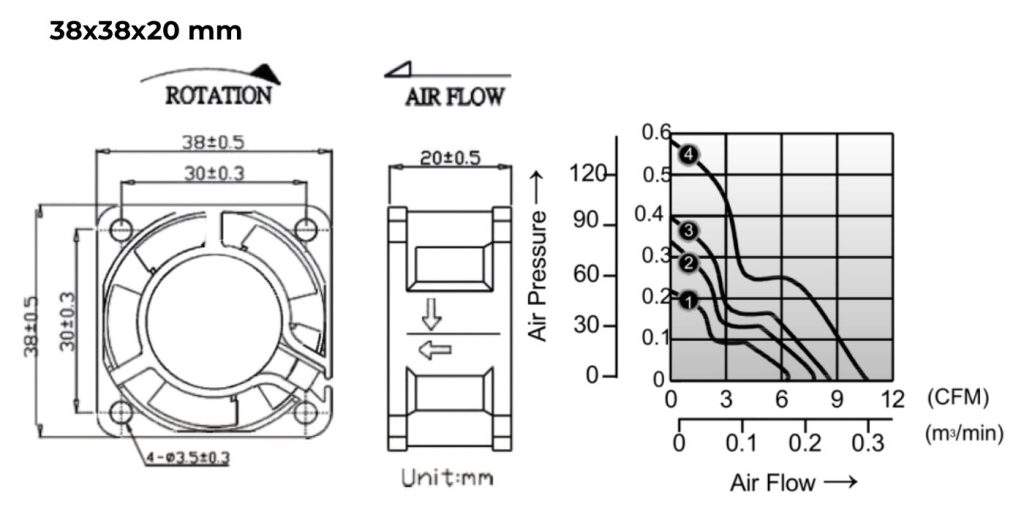

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD123820LB | 12 | 7 – 13.2 | 0.10 | 6700 | 6.3 | 0.22 | 36 |
| HYD123820MB | 12 | 7 – 13.2 | 0.12 | 8000 | 7.4 | 0.34 | 40 |
| HYD123820HB | 12 | 7 – 13.2 | 0.13 | 8900 | 8.6 | 0.39 | 42 |
| HYD123820XB | 12 | 7 – 13.2 | 0.30 | 10000 | 10.6 | 0.58 | 43 |
| HYD243820LB | 24 | 14.0 – 26.4 | 0.07 | 6700 | 6.3 | 0.22 | 36 |
| HYD243820MB | 24 | 14.0 – 26.4 | 0.07 | 8000 | 7.4 | 0.34 | 40 |
| HYD243820HB | 24 | 14.0 – 26.4 | 0.09 | 8900 | 8.6 | 0.39 | 42 |
| HYD243820XB | 24 | 14.0 – 26.4 | 0.17 | 10000 | 10.6 | 0.58 | 43 |
