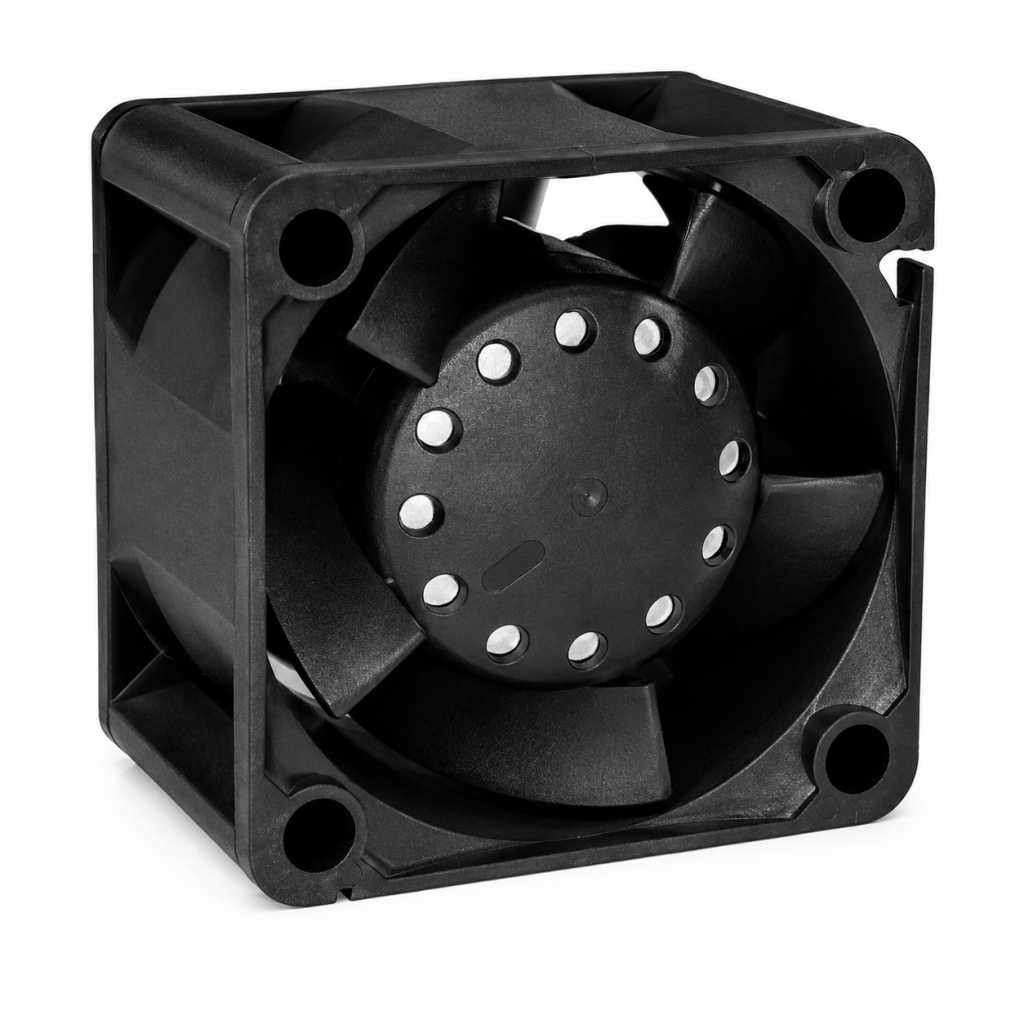

DC FANS
38x38x28 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 40 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

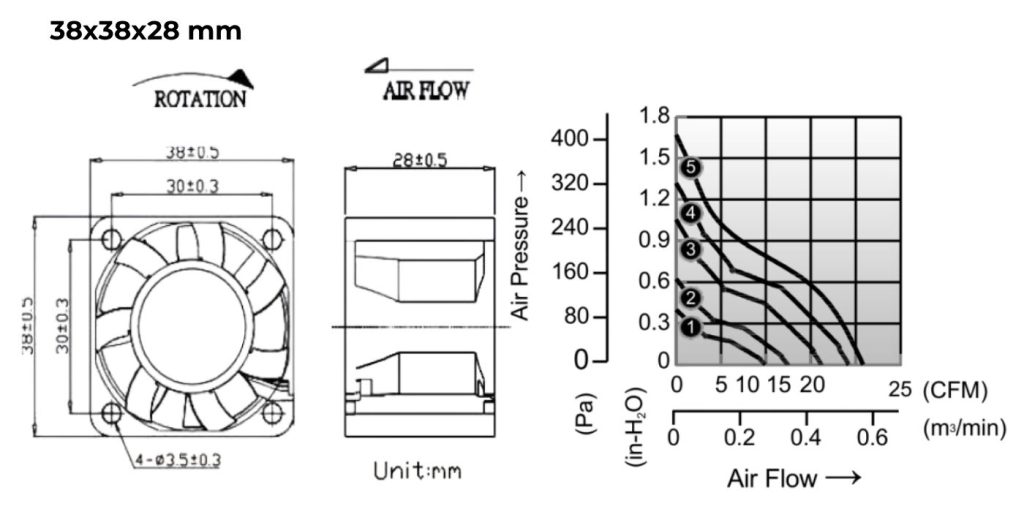

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD123828LB | 12 | 7.0 – 13.2 | 0.11 | 8000 | 9.44 | 0.39 | 38 |
| HYD123828MB | 12 | 7.0 – 13.2 | 0.15 | 10000 | 12.46 | 0.63 | 44 |
| HYD123828HB | 12 | 7.0 – 13.2 | 0.29 | 13000 | 16.3 | 1.02 | 51 |
| HYD123828XB | 12 | 7.0 – 13.2 | 0.48 | 15000 | 19.16 | 1.37 | 55 |
| HYD123828UB | 12 | 7.0 – 13.2 | 0.85 | 17000 | 20.8 | 1.67 | 59 |
