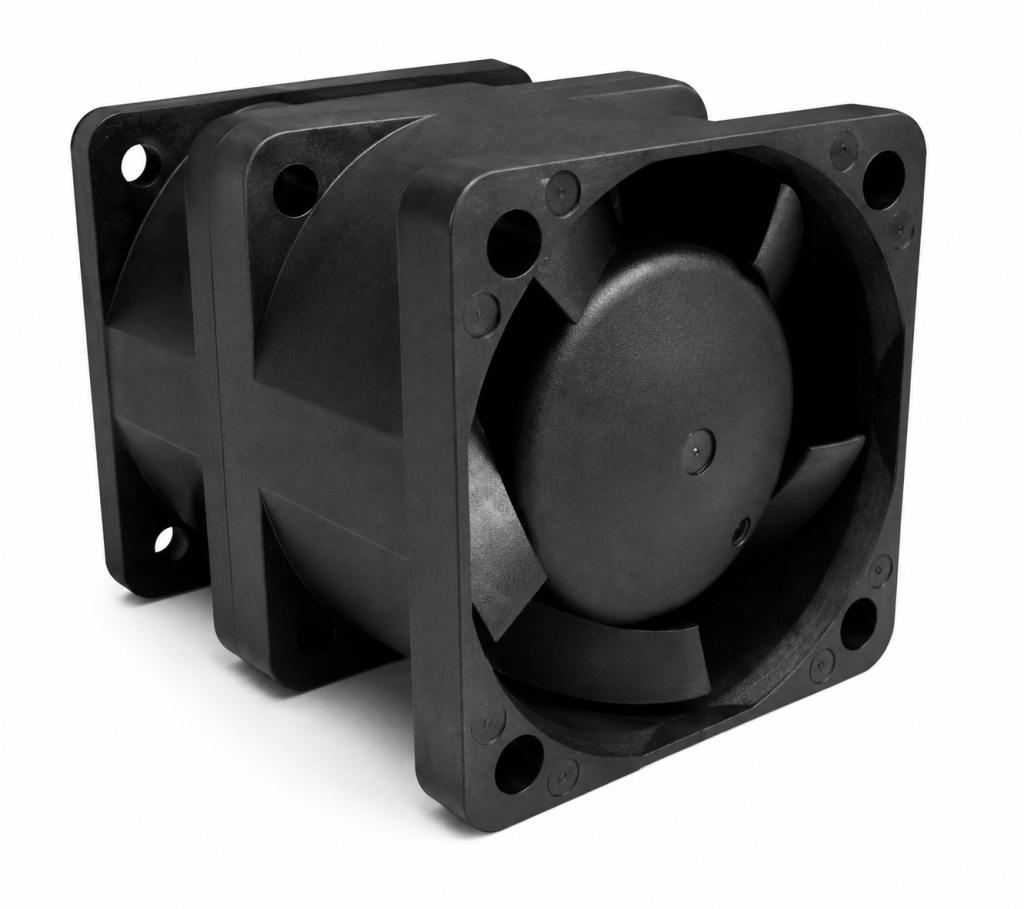

DC FANS
38x38x48 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Thermoplastic PBT UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Sleeve or Ball Bearing
Motor Structure: Brushless DC Motor
Termination: Lead wire 300± 10mm
Weight: 72.4 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

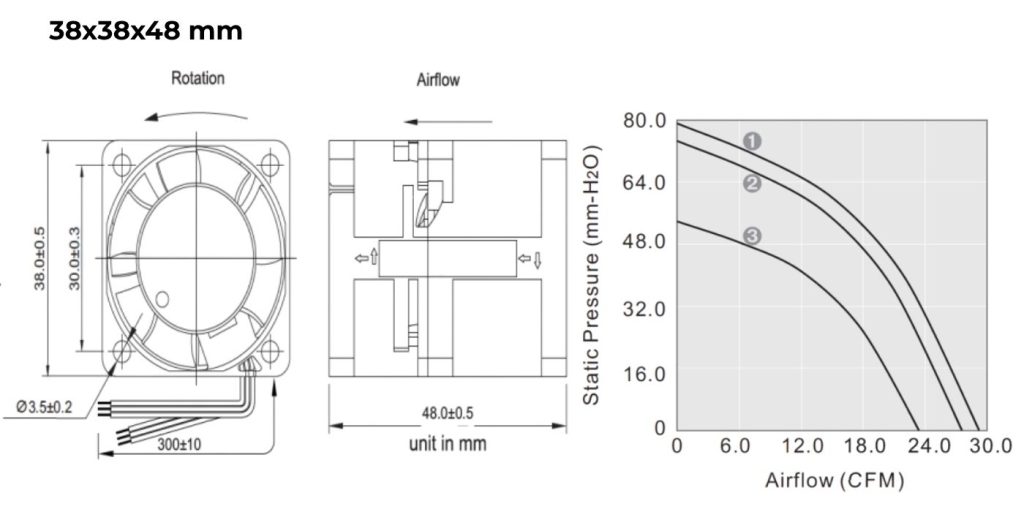

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYD123848HBL | 12 | 7.0 – 13.2 | 0.45 | 5.4 | 20000 | 23.48 | 2.12 | 59 |
| HYD123848XBL | 12 | 7.0 – 13.2 | 0.7 | 8.4 | 23500 | 27.62 | 2.94 | 62.5 |
| HYD123848UBL | 12 | 7.0 – 13.2 | 0.83 | 9.6 | 25000 | 29.28 | 3.11 | 64 |
