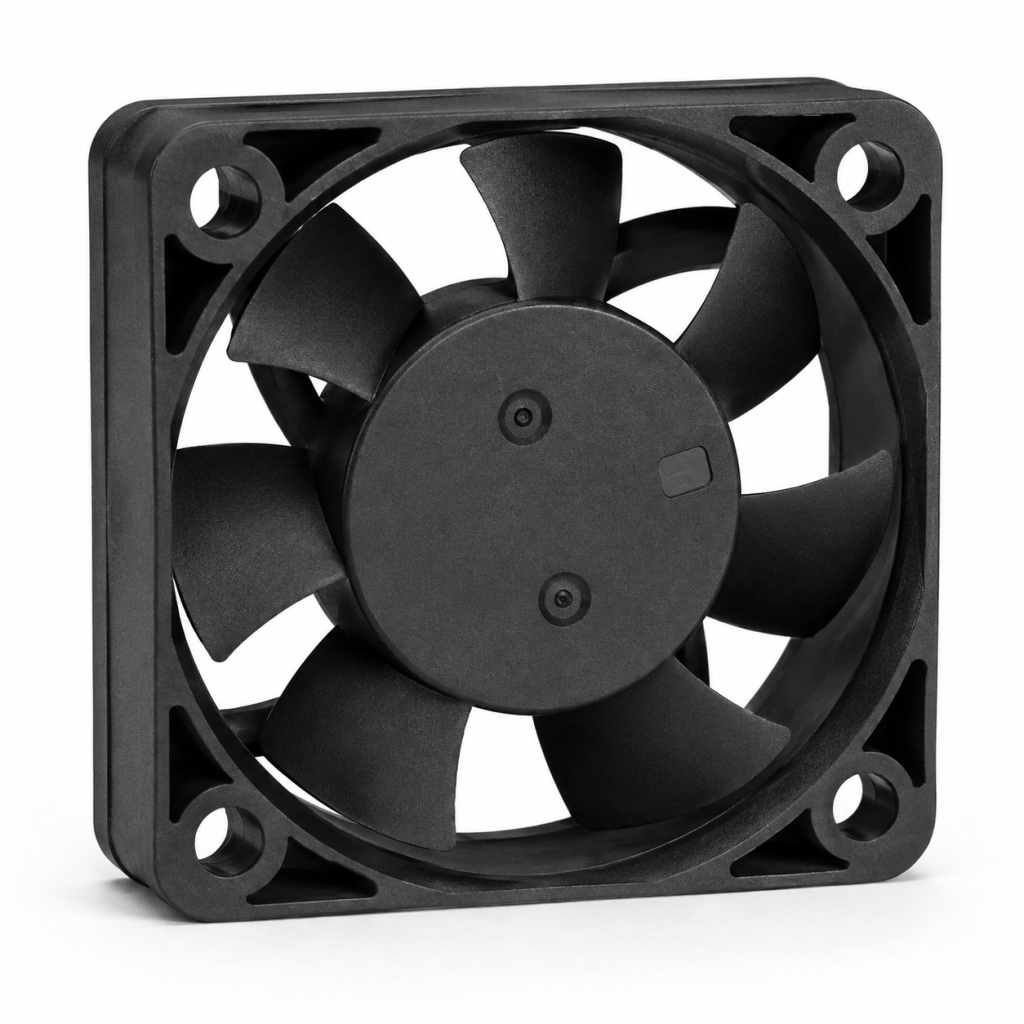

DC FANS

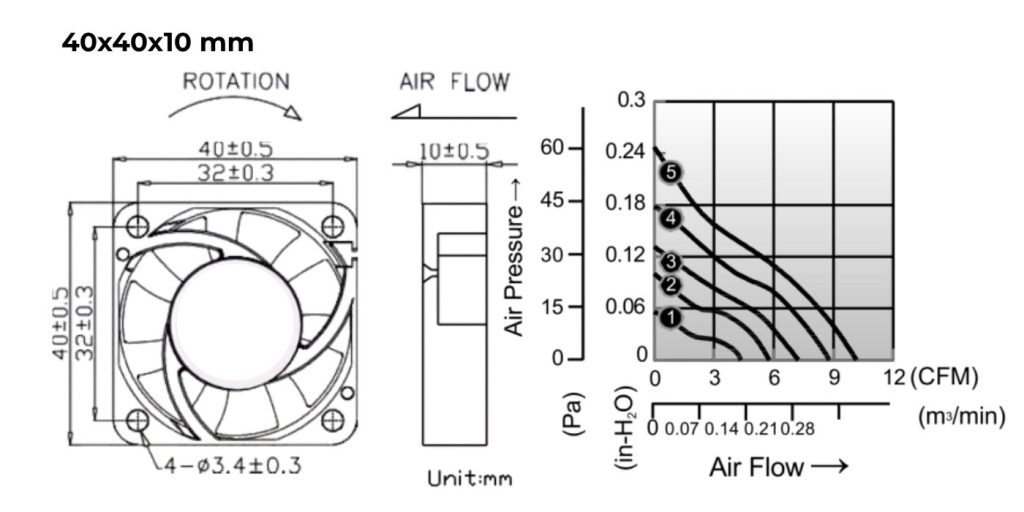

40x40x10 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Sleeve or Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 20 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling
TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Air flow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD054010LB | 5 | 4.5 – 5.5 | 0.14 | 4000 | 4.75 | 0.06 | 21 |
| HYD054010MB | 5 | 4.5 – 5.5 | 0.18 | 6000 | 7.24 | 0.11 | 26 |
| HYD054010HB | 5 | 4.5 – 5.5 | 0.29 | 8000 | 9.25 | 0.20 | 35 |
| HYD124010MB | 12 | 7.0 – 13.2 | 0.10 | 4000 | 4.75 | 0.06 | 21 |
| HYD124010HB | 12 | 7.0 – 13.2 | 0.11 | 6000 | 7.24 | 0.11 | 26 |
| HYD124010XB | 12 | 7.0 – 13.2 | 0.14 | 8000 | 9.25 | 0.20 | 33 |
| HYD124010UB | 12 | 7.0 – 13.2 | 0.18 | 10000 | 12.23 | 0.33 | 39 |
| HYD244010LB | 24 | 14.0 – 26.4 | 0.06 | 4000 | 4.75 | 0.06 | 21 |
| HYD244010MB | 24 | 14.0 – 26.4 | 0.09 | 8000 | 9.25 | 0.20 | 33 |
| HYD244010HB | 24 | 14.0 – 26.4 | 0.09 | 10000 | 12.23 | 0.33 | 39 |
