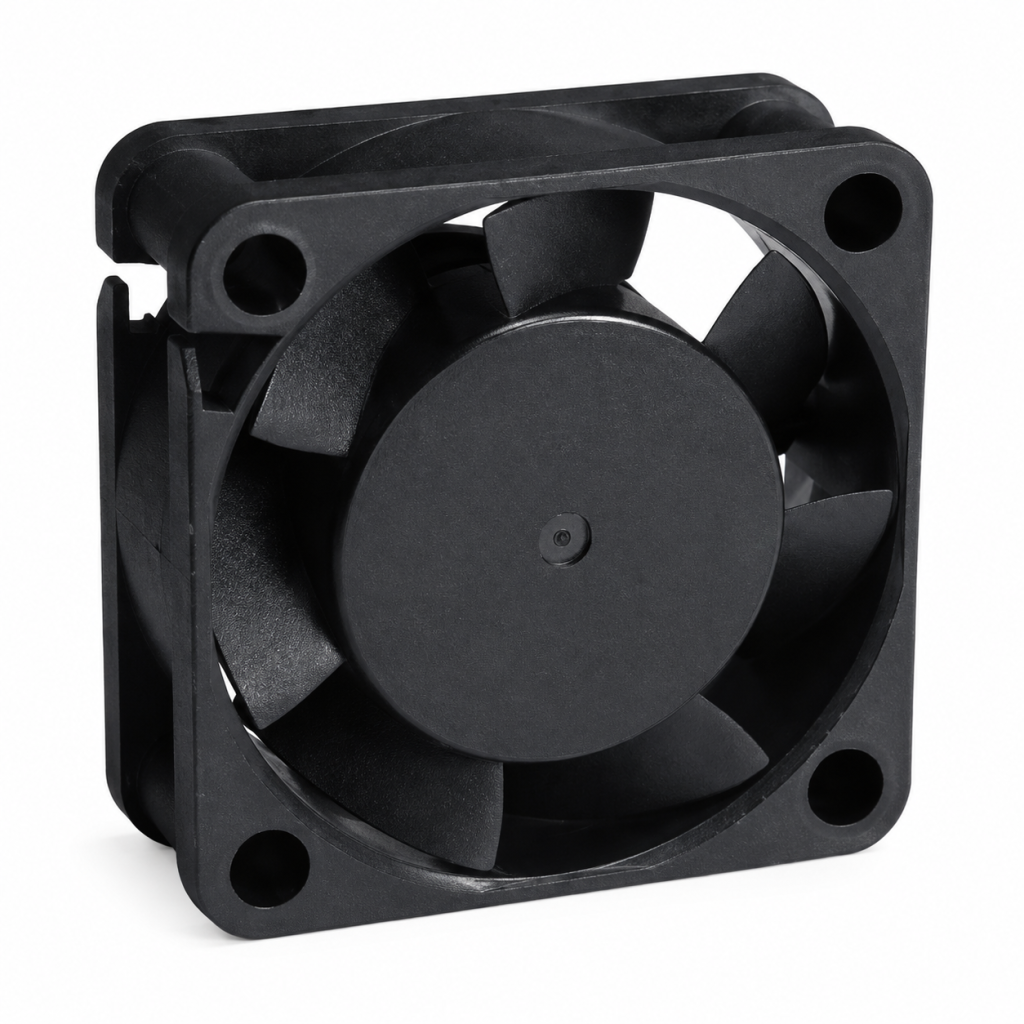

DC FANS
40x40x15Y mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Thermoplastic PBT UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 25 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

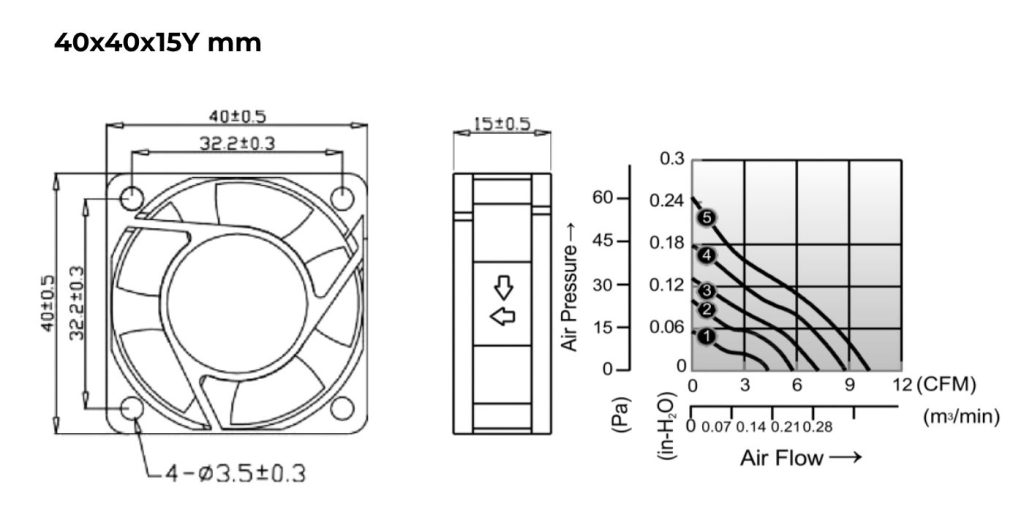

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Operating Voltage Range (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYD124015LBL | 12 | 7–13.2 | 0.09 | 1.08 | 5000 | 5.6 | 0.10 | 24 |
| HYD124015MBL | 12 | 7–13.2 | 0.10 | 1.2 | 6000 | 6.6 | 0.14 | 29.3 |
| HYD124015HBL | 12 | 7–13.2 | 0.13 | 1.56 | 7000 | 8.2 | 0.20 | 33.2 |
| HYD124015XBL | 12 | 7–13.2 | 0.19 | 2.28 | 8300 | 9.4 | 0.28 | 36.8 |
| HYD124015UBL | 12 | 7–13.2 | 0.24 | 2.88 | 9500 | 11.2 | 0.36 | 40.8 |
| HYD124015VBL | 12 | 7–13.2 | 0.28 | 3.36 | 11000 | 14.6 | 0.57 | 42.5 |
