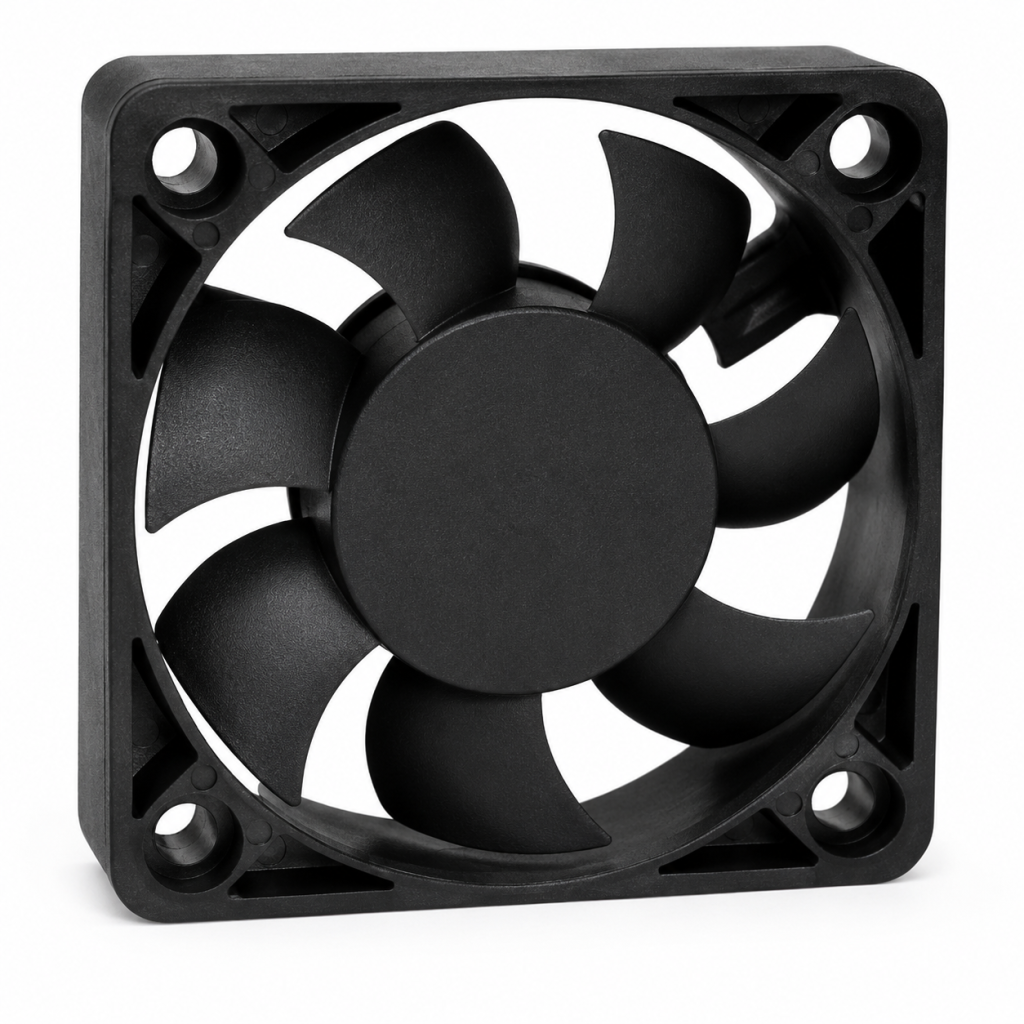

DC FANS
50x50x10 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: FMB / Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 32 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

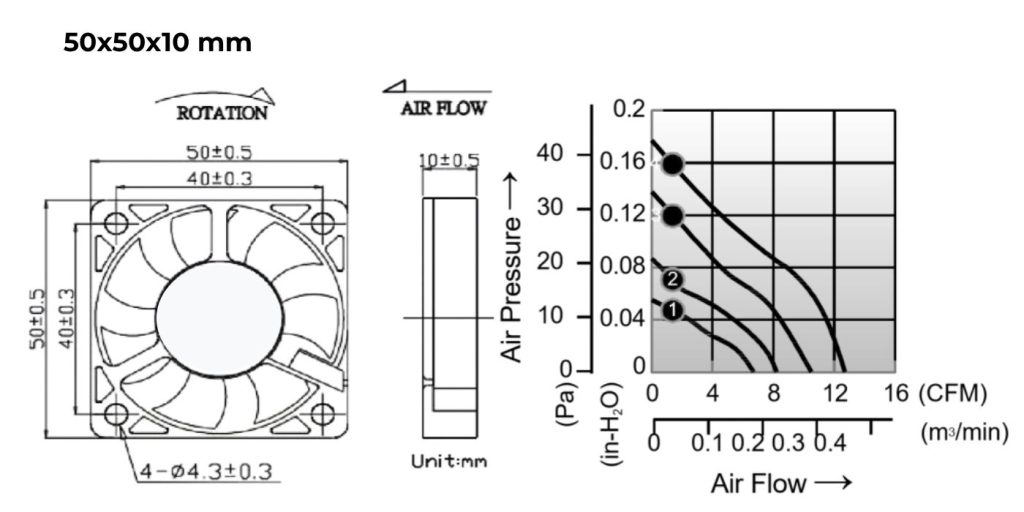

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD055010JB | 5 | 4.5 – 5.5 | 0.08 | 3500 | 6.7 | 0.05 | 17 |
| HYD055010LB | 5 | 4.5 – 5.5 | 0.12 | 4500 | 8.2 | 0.09 | 23 |
| HYD055010MB | 5 | 4.5 – 5.5 | 0.16 | 5500 | 10.5 | 0.14 | 29 |
| HYD055010HB | 5 | 4.5 – 5.5 | 0.20 | 6500 | 12.7 | 0.18 | 34 |
| HYD125010JB | 12 | 7.0 – 13.2 | 0.05 | 3500 | 6.7 | 0.05 | 17 |
| HYD125010LB | 12 | 7.0 – 13.2 | 0.07 | 4500 | 8.2 | 0.09 | 23 |
| HYD125010MB | 12 | 7.0 – 13.2 | 0.08 | 5500 | 10.5 | 0.14 | 29 |
| HYD125010HB | 12 | 7.0 – 13.2 | 0.10 | 6500 | 12.7 | 0.18 | 34 |
| HYD245010JB | 24 | 14.0 – 26.4 | 0.06 | 3500 | 6.7 | 0.05 | 17 |
| HYD245010LB | 24 | 14.0 – 26.4 | 0.07 | 4500 | 8.2 | 0.09 | 23 |
| HYD245010MB | 24 | 14.0 – 26.4 | 0.08 | 5500 | 10.5 | 0.14 | 29 |
| HYD245010HB | 24 | 14.0 – 26.4 | 0.09 | 6500 | 12.7 | 0.18 | 34 |
