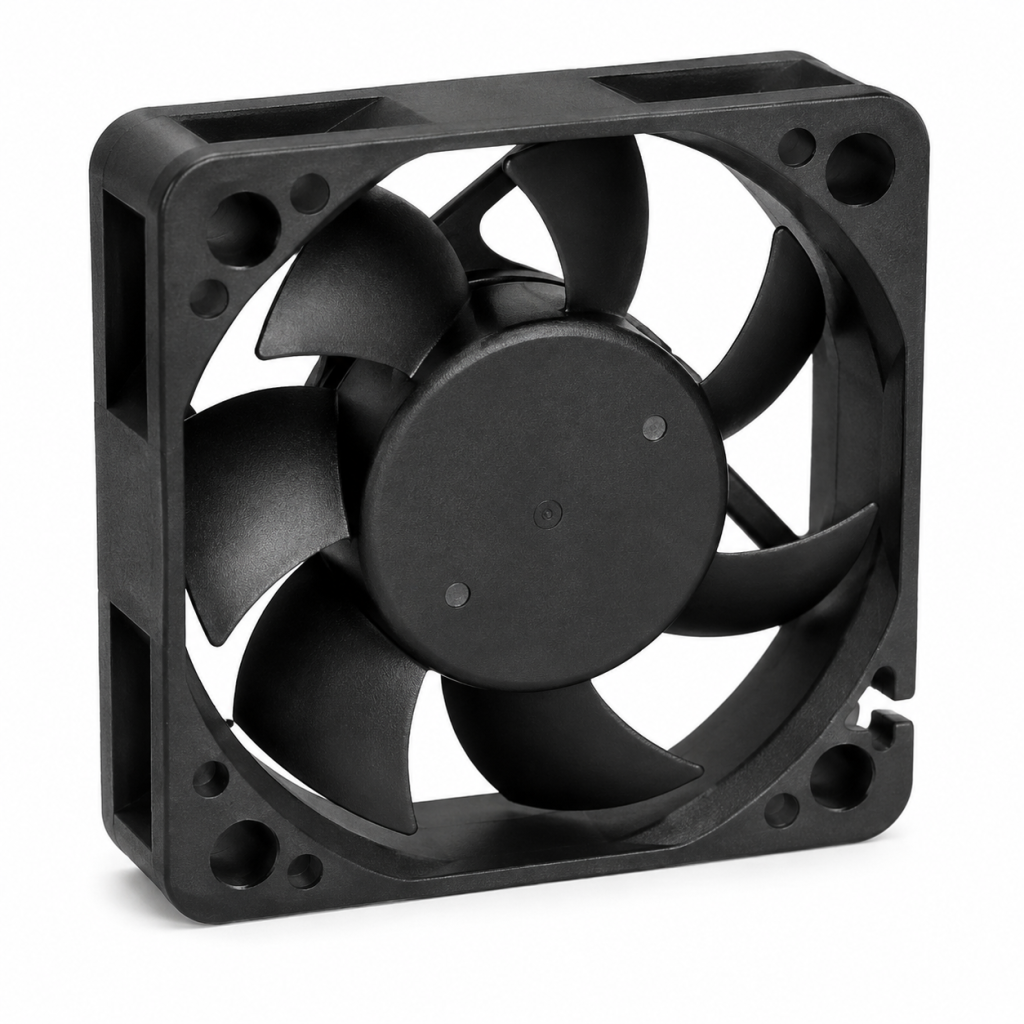

DC FANS
50x50x15 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: FMB / Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 38 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

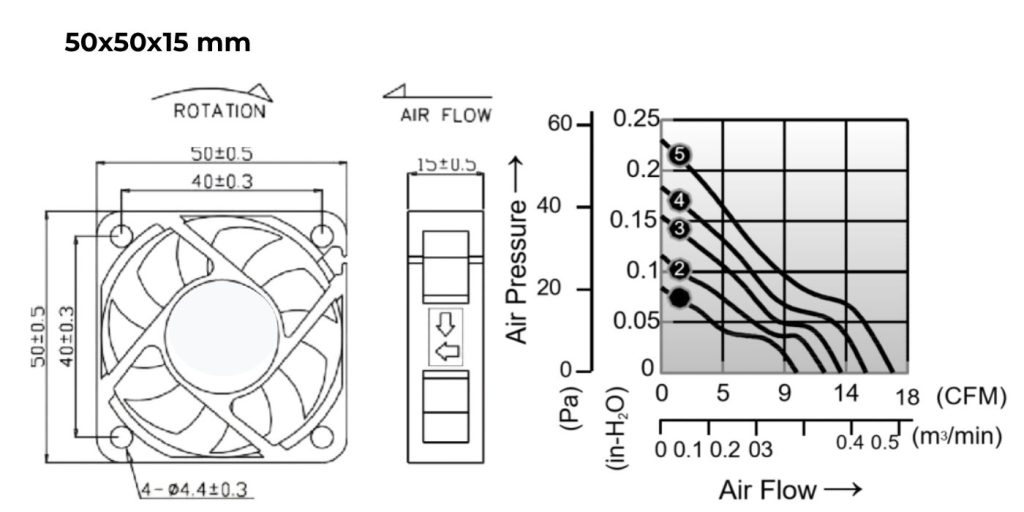

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYDC125015JB | 12 | 7.0 – 13.2 | 0.06 | 3600 | 9.91 | 0.08 | 24 |
| HYDC125015LB | 12 | 7.0 – 13.2 | 0.07 | 4200 | 12.2 | 0.12 | 27 |
| HYDC125015MB | 12 | 7.0 – 13.2 | 0.09 | 4800 | 13.2 | 0.16 | 30 |
| HYDC125015HB | 12 | 7.0 – 13.2 | 0.11 | 5400 | 15 | 0.18 | 32 |
| HYDC125015XB | 12 | 7.0 – 13.2 | 0.13 | 6000 | 17 | 0.23 | 36 |
| HYDC245015JB | 24 | 14.0 – 26.4 | 0.04 | 3600 | 9.91 | 0.08 | 24 |
| HYDC245015LB | 24 | 14.0 – 26.4 | 0.05 | 4200 | 12.2 | 0.12 | 27 |
| HYDC245015MB | 24 | 14.0 – 26.4 | 0.06 | 4800 | 13.2 | 0.16 | 30 |
| HYDC245015HB | 24 | 14.0 – 26.4 | 0.07 | 5400 | 15 | 0.18 | 32 |
| HYDC245015XB | 24 | 14.0 – 26.4 | 0.08 | 6000 | 17 | 0.23 | 36 |
